LZX801CKA606C1 - Exmark 60" Lazer Z X-Series Zero-Turn Mower, Kawasaki FX (SN: 400000000 - 402082299) (2017) Fuel Assembly Parts Diagram

60" Lazer Z X-Series Zero-Turn Mower, Kawasaki FX

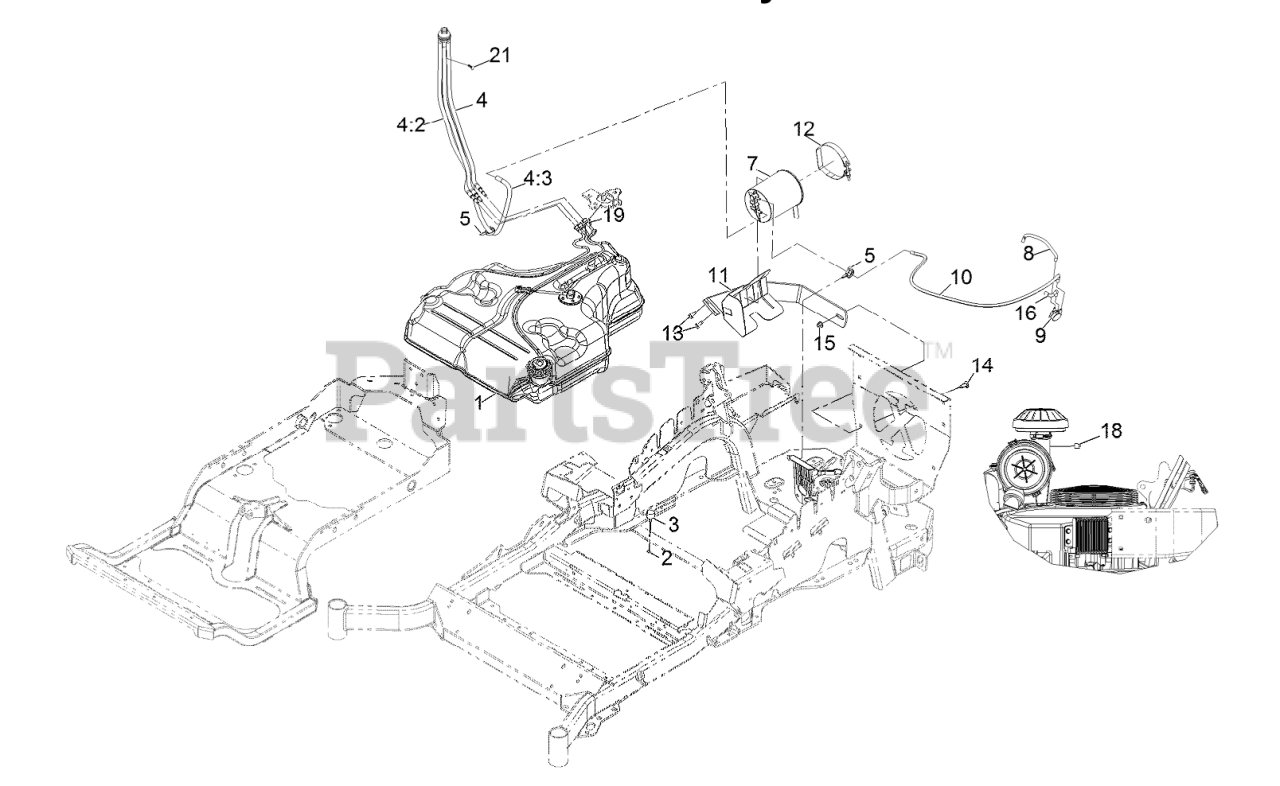

Fuel Assembly Parts Diagram

  • Title

1

Exmark 135-0643

FUEL TANK ASM

$702.99

$

Usually ships in 3-6 days

0

2

Exmark 3218-1

NUT-JAM

$1.49

$

In Stock, only 4 left!

0

3

Exmark 1-523420

109-2365

$14.99

$

Usually ships in 3-6 days

0

5

Exmark 127-0583

FUEL MANIFOLD VENT ASM

$70.99

$

Usually ships in 3-6 days

0

5:2

Exmark 109-0302

HOSE-FUEL

$12.99

$

In Stock, Qty 5

0

5:3

Exmark 108-5376

HOSE-FUEL

$43.99

$

In Stock, only 1 left!

0

6

Exmark 125-8067

PLUG-PLASTIC

$0.99

$

Usually ships in 3-6 days

0

8

Exmark 116-1442

CANISTER-CARBON, 1200CC

$160.99

$

Usually ships in 3-6 days

0

12

Exmark 116-1433-03

MOUNT-CANISTER

$213.99

$

Usually ships in 3-6 days

0

13

Exmark 116-2228

CLAMP, T-BOLT

$46.99

$

Usually ships in 3-6 days

0

14

Exmark 32144-70

Screw-HWH 5/16-18 X 3/4 Tf

$2.99

$

In Stock, Qty 20+

0

15

Exmark 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

16

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

17

Exmark 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 8

0

23

Exmark 116-4464

PLUG-PORT

$1.49

$

Usually ships in 3-6 days

0

24

Exmark 105-1853

CLAMP-HOSE

$5.49

$

In Stock, only 4 left!

0

25

Exmark 116-6005

RETAINER-LINE, VAPOR

$5.49

$

Usually ships in 3-6 days

0

27

Exmark 119-6074

HOSE-FUEL

$14.99

$

Usually ships in 3-6 days

0

28

Exmark 109-0650

HOSE-FUEL

$7.99

$

In Stock, only 1 left!

0

29

Exmark 121-2573

FITTING-STRAIGHT

$4.49

$

Usually ships in 3-6 days

0

30

Exmark 1-543286

GROMMET

$12.99

$

Usually ships in 3-6 days

0

31

Exmark 135-0350

BRACKET-VALVE MOUNT

$30.99

$

Usually ships in 3-6 days

0

32

Exmark 1-513658

BUMPER

$6.49

$

In Stock, Qty 11

0

33

Exmark 95-4184

SCREW-HHF
(Superseded to 139-3392)

$2.99

$

Usually ships in 3-6 days

0

34

Exmark 1-303334

WASHER-SPRING

$2.99

$

In Stock, only 4 left!

0

35

Exmark 68-3632

Hose-Fuel

$4.49

$

Usually ships in 3-6 days

0
