LZX801CKA60600 - Exmark 60" Lazer Z X-Series Zero-Turn Mower, Kawasaki FX (SN: 402082300 - 404314158) (2018) Deck Assembly Parts Diagram

60" Lazer Z X-Series Zero-Turn Mower, Kawasaki FX

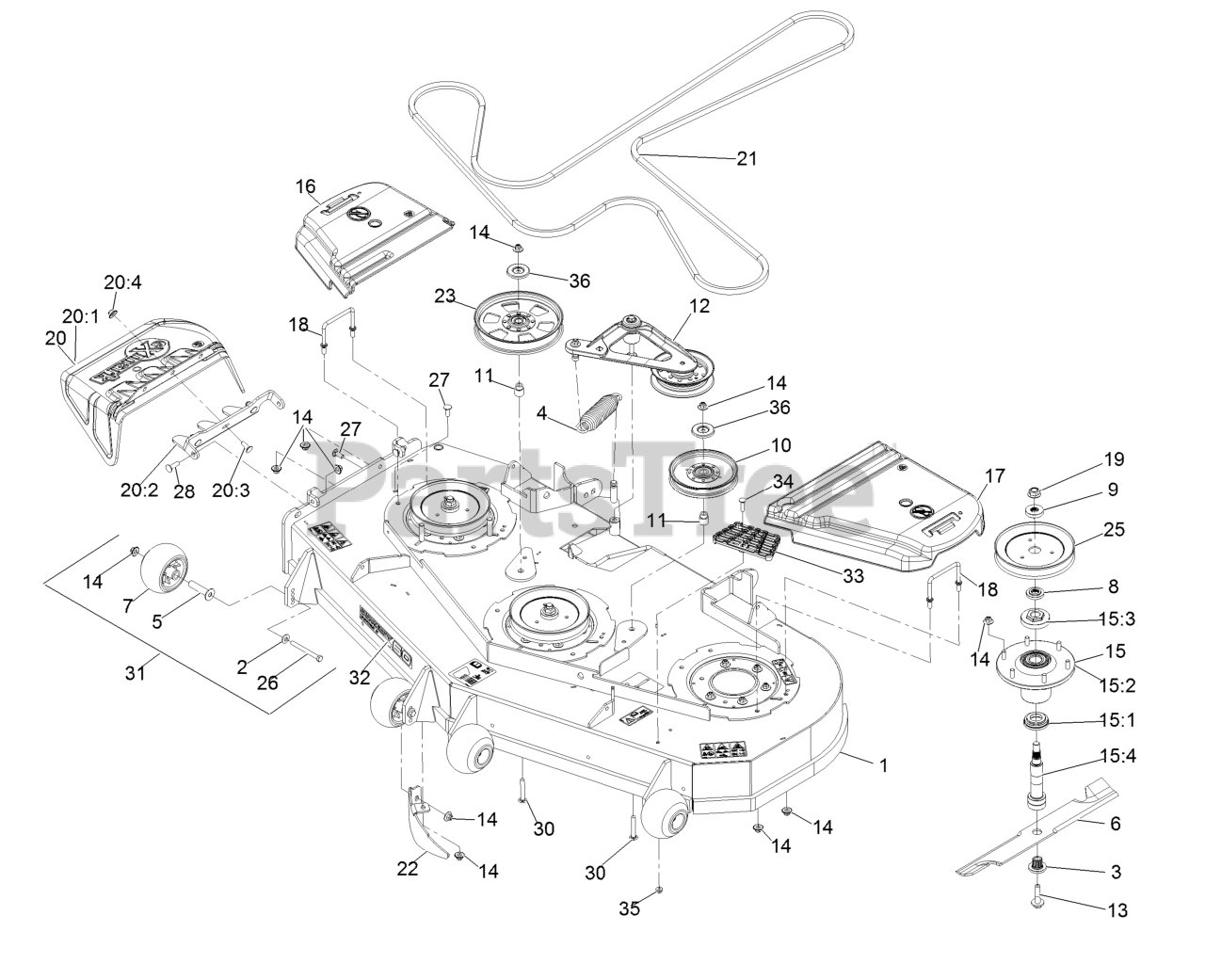

Deck Assembly Parts Diagram

  • Title

1

Exmark 116-4232

Deck ASM,W/Decals 60

$4052.99

$

Usually ships in 3-6 days

0

2

Exmark 98-5975

Washer-Spring Disc 3/8

$3.49

$

In Stock, Qty 20+

0

3

Exmark 103-3037

Bushing, Splined

$22.99

$

In Stock, Qty 20+

0

4

Exmark 116-6317

Spring-Extension

$28.99

$

In Stock, Qty 7

0

5

Exmark 116-8131

Axle, Roller

$12.99

$

In Stock, Qty 12

0

6

Exmark 103-6383

Blade, Solid
(Superseded to 103-6383-S)

$34.99

$

In Stock, Qty 20+

0

6

Exmark 103-6388

Blade, Low Lift
(Superseded to 103-6388-S)

$37.99

$

In Stock, Qty 20+

0

6

Exmark 103-6393

Blade, Mulching
(Superseded to 103-6393-S)

$30.99

$

In Stock, Qty 20+

0

6

Exmark 103-6403

Blade, Notched
(Superseded to 103-6403-S)

$31.99

$

In Stock, Qty 20+

0

6

Exmark 116-5174

Blade-Extreme 2, 20.50"

$

$

Currently unavailable

7

Exmark 103-8415

Roller-Anti-Scalp

$23.99

$

In Stock, Qty 20+

0

8

Exmark 103-9522

Spacer, Splined Stepped

$6.99

$

In Stock, Qty 9

0

9

Exmark 103-9523

Spacer, Splined

$8.49

$

In Stock, Qty 20+

0

10

Exmark 126-7685

Idler-Pulley

$62.99

$

In Stock, Qty 20+

0

11

Exmark 1-633456

Bushing, Idler

$5.49

$

In Stock, Qty 20+

0

12

Exmark 116-3755

Deck Idler ASM

$254.99

$

In Stock, Qty 20+

0

13

Exmark 109-9220

Screw-Sems 1/2-20 X 2.19

$8.49

$

In Stock, Qty 20+

0

14

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

15

Exmark 109-6917

ASM,Spindle Housing

$521.99

$

In Stock, Qty 15

0

15:1

Exmark 103-9504

Guard, Bottom

$11.99

$

In Stock, only 2 left!

0

15:2

Exmark 103-9539

Asm, Cutter Housing

$374.99

$

In Stock, only 2 left!

0

15:3

Exmark 109-0916

Nut, Spindle 7/8-14

$24.99

$

In Stock, only 1 left!

0

15:4

Exmark 109-6881

Spindle,Double Spline

$129.99

$

In Stock, Qty 9

0

16

Exmark 116-0094

Cover-Belt, RH

$86.99

$

In Stock, only 4 left!

0

17

Exmark 109-6938

Cover-Belt, LH

$96.99

$

In Stock, only 2 left!

0

18

Exmark 109-6982

Wireform-Cover

$11.99

$

In Stock, only 4 left!

0

19

Exmark 109-7033

Nut-Flange 5/8-18 Centerlock

$2.99

$

In Stock, Qty 20+

0

20

Exmark 109-7188

ASM,Discharge Chute

$104.99

$

In Stock, only 2 left!

0

20:1

Exmark 109-2738

Chute, Discharge

$74.99

$

In Stock, Qty 20+

0

20:2

Exmark 109-8675-01

Bracket,Discharge Chute

$51.99

$

In Stock, only 1 left!

0

20:3

Exmark 3231-22

Bolt-Carriage 3/8-16 X 1

$3.49

$

In Stock, Qty 20+

0

20:4

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

21

Exmark 109-8073

Belt,V-5V-198.75
(Superseded to 135-5774-SL)

$169.99

$

In Stock, Qty 17

0

22

Exmark 116-5614-01

Dogleg - Lz60

$60.99

$

Usually ships in 3-6 days

0

23

Exmark 116-9639

Pulley-Idler, Flat

$95.99

$

In Stock, Qty 20+

0

25

Exmark 109-9511

Sheave,Blade Drive 7.25

$49.99

$

In Stock, Qty 5

0

26

Exmark 116-9362

Screw-HH 3/8-16 X 3 3/4 GR 8

$2.99

$

In Stock, Qty 17

0

27

Exmark 3231-22

Bolt-Carriage 3/8-16 X 1

$3.49

$

In Stock, Qty 20+

0

28

Exmark 3231-28

Bolt-Carriage 3/8-16 X 1 1/4

$4.49

$

In Stock, Qty 20+

0

30

Exmark 3231-44

Bolt-Carriage 3/8-16 X 2 1/2

$2.99

$

In Stock, Qty 14

0

31

Exmark 116-9981

Kit, Anti-Scalp Roller

$52.99

$

In Stock, Qty 20+

0

32

Exmark 126-6592

Decal, 606

$8.99

$

In Stock, only 2 left!

0

33

Exmark 126-4781-03

Step-Deck

$26.99

$

Usually ships in 3-6 days

0

34

Exmark 3230-3

Bolt-Carriage 5/16-18 X 1 1/4

$1.49

$

In Stock, Qty 20+

0

35

Exmark 104-8300

Nut-Nyloc 5/16-18 Flg

$1.49

$

In Stock, Qty 17

0

36

Exmark 126-8043

Shield-Dust

$2.99

$

In Stock, only 2 left!
