LZX740EKC526W0 - Exmark 52" Lazer Z X-Series Zero-Turn Mower, Kohler ECV740 (SN: 402082300 - 404314158) (2018) Deck Lift Assembly Parts Diagram

52" Lazer Z X-Series Zero-Turn Mower, Kohler ECV740

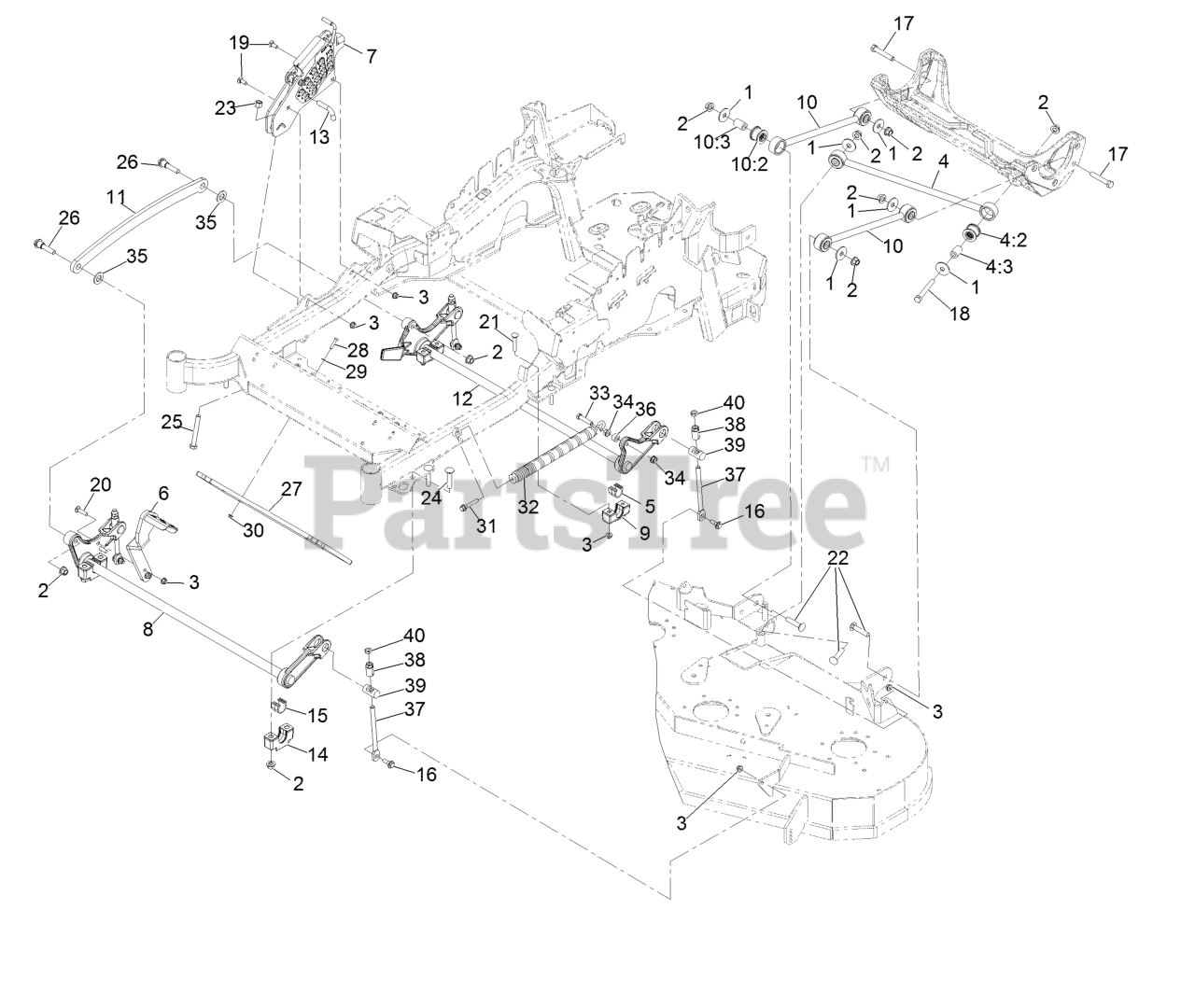

Deck Lift Assembly Parts Diagram

  • Title

1

Exmark 86-1990

Washer

$3.99

$

In Stock, only 3 left!

0

2

Exmark 99-5107

Nut-Lock 1/2-13

$1.99

$

In Stock, Qty 20+

0

3

Exmark 104-8301

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

4

Exmark 109-5013

Panhard Rod ASM

$142.99

$

In Stock, Qty 6

0

4:2

Exmark 109-5009

Bushing-Suspension, Rubber

$5.49

$

In Stock, Qty 15

0

4:3

Exmark 109-5010

Spacer

$12.99

$

In Stock, Qty 6

0

5

Exmark 109-7173

Bearing-Cross Shaft, Rear

$5.49

$

In Stock, Qty 6

0

6

Exmark 116-1919-01

Lever-Foot

$99.99

$

Usually ships in 3-6 days

0

7

Exmark 109-7438

HOC ASM

$273.99

$

In Stock, only 1 left!

0

8

Exmark 126-2477-03

Decklift-Front

$241.99

$

Usually ships in 3-6 days

0

9

Exmark 127-0553

Support-Cross Shaft, Bearing Rear

$14.99

$

In Stock, only 4 left!

0

10

Exmark 109-7952

Deck Strut ASM

$144.99

$

In Stock, only 2 left!

0

10:2

Exmark 109-5009

Bushing-Suspension, Rubber

$5.49

$

In Stock, Qty 15

0

10:3

Exmark 109-5010

Spacer

$12.99

$

In Stock, Qty 6

0

11

Exmark 116-0797-03

Link-Lift, Deck

$136.99

$

Usually ships in 3-6 days

0

12

Exmark 116-2645-03

Lift-Deck, Rear

$394.99

$

Usually ships in 3-6 days

0

13

Exmark 116-5584

Pin-HOC

$5.49

$

In Stock, only 4 left!

0

14

Exmark 109-9409

Support-Cross Shaft, Bearing

$14.99

$

In Stock, only 4 left!

0

15

Exmark 109-9410

Bearing-Cross Shaft, Front

$5.49

$

In Stock, Qty 13

0

16

Exmark 109-9840

Screw-Hex Flange 3/8-16 X .80

$5.49

$

In Stock, Qty 11

0

17

Exmark 325-12

Screw-HH 1/2-13 X 3

$6.49

$

In Stock, only 2 left!

0

18

Exmark 325-17

Screw-HH 1/2-13 X 4

$5.99

$

In Stock, only 1 left!

0

19

Exmark 3231-2

Bolt-Carriage 3/8-16 X 1

$1.99

$

In Stock, Qty 12

0

20

Exmark 3231-4

Bolt-Carriage 3/8-16 X 1 1/2

$3.99

$

In Stock, Qty 20+

0

21

Exmark 3231-7

Bolt-Carriage 3/8-16 X 2 1/4

$6.99

$

In Stock, Qty 14

0

22

Exmark 3233-34

Bolt-Carriage 1/2-13 X 2 1/2

$9.49

$

In Stock, only 3 left!

0

23

Exmark 3296-23

Nut-Nyloc 1/2-13

$1.49

$

In Stock, Qty 20+

0

24

Exmark 116-1700

Bolt-Carriage 1/2-13 X 2 1/2 Spl Neck

$5.49

$

Usually ships in 3-6 days

0

25

Exmark 116-0559

Bolt-HH 1/2-13 X 4 Tap

$6.49

$

Usually ships in 3-6 days

0

26

Exmark 116-2022

Screw-Hex Flange 1/2-13 X 1.90

$8.99

$

Usually ships in 3-6 days

0

27

Exmark 132-5075-01

Weight-Toe Board
(Superseded to 140-4963-01)

$139.99

$

Usually ships in 3-6 days

0

28

Exmark 321-8

Screw-HH 1/4-20 X 1 1/4

$3.99

$

In Stock, Qty 9

0

29

Exmark 3256-22

Washer-1/4 SAE

$0.99

$

In Stock, Qty 20+

0

30

Exmark 104-7201

Nut-Nyloc 1/4-20 Flg

$1.49

$

In Stock, Qty 20+

0

31

Exmark 92-7674

Screw-Shcs 3/8-16 X 2.212

$2.99

$

Usually ships in 3-6 days

0

32

Exmark 116-0886

Spring-Extension

$136.99

$

In Stock, only 1 left!

0

33

Exmark 109-9065

Screw-HH 7/16-14 X 2

$3.49

$

In Stock, Qty 9

0

34

Exmark 32128-37

Nut-Whizlock 7/16-14

$4.49

$

In Stock, Qty 17

0

35

Exmark 3256-28

Washer-3/4 SAE

$3.49

$

In Stock, Qty 20+

0

36

Exmark 116-2695

Spacer

$19.99

$

Usually ships in 3-6 days

0

37

Exmark 109-8007

Link-Adjuster, Deck Lift

$15.99

$

In Stock, Qty 11

0

38

Exmark 109-7840

Adjuster-Lift, Deck

$7.99

$

In Stock, Qty 10

0

39

Exmark 109-8353

Trunnion

$14.99

$

In Stock, Qty 6

0

40

Exmark 3218-5

Nut-Jam 1/2-13

$1.49

$

In Stock, Qty 20+

0
