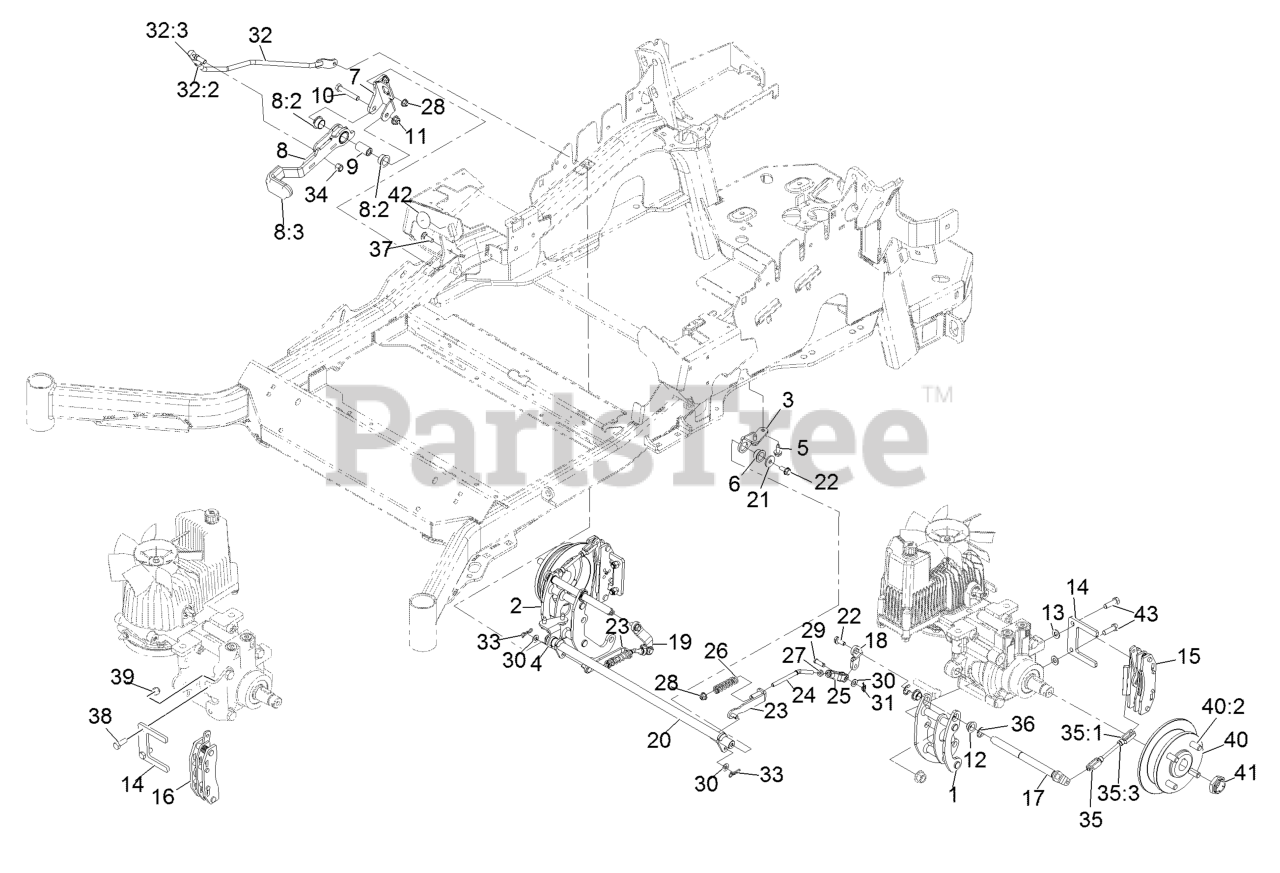

LZX740EKC526T0 - Exmark 52" Lazer Z X-Series Zero-Turn Mower, Kohler ECV740 (SN: 314000000 - 314999999) (2014) Park Brake Assembly Parts Diagram

52" Lazer Z X-Series Zero-Turn Mower, Kohler ECV740

Park Brake Assembly Parts Diagram

  • Title

1

Exmark 116-9061

126-4248
(Superseded to 126-4248)

$37.99

$

Usually ships in 3-6 days

0

2

Exmark 116-9062

126-4249
(Superseded to 126-4249)

$37.99

$

Usually ships in 3-6 days

0

3

Exmark 116-9681

MOUNT-PIVOT, LH

$5.49

$

In Stock, only 1 left!

0

4

Exmark 116-9682

MOUNT-PIVOT, RH

$5.49

$

In Stock, only 1 left!

0

5

Exmark 32144-70

Screw-HWH 5/16-18 X 3/4 Tf

$2.99

$

In Stock, Qty 20+

0

6

Exmark 109-8054

BUSHING-FLANGE

$5.49

$

In Stock, Qty 20+

0

7

Exmark 116-9096-01

BRACKET-MOUNT

$28.99

$

Usually ships in 3-6 days

0

8

Exmark 126-0970

BRAKE LEVER ASM

$112.99

$

Usually ships in 3-6 days

0

8:2

Exmark 109-8054

BUSHING-FLANGE

$5.49

$

In Stock, Qty 20+

0

8:3

Exmark 1-633268

GRIP-LEVER

$14.99

$

In Stock, only 4 left!

0

9

Exmark 116-9117

HANDLE-PIVOT, BRAKE

$2.99

$

Usually ships in 3-6 days

0

10

Exmark 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

11

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

12

Exmark 116-9072

BUSHING

$3.49

$

In Stock, only 1 left!

0

13

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 16

0

14

Exmark 109-0958

PLATE-MOUNT, BRAKE

$15.99

$

In Stock, only 1 left!

0

15

Exmark 109-2889

CALIPER-BRAKE

$184.99

$

In Stock, only 2 left!

0

16

Exmark 116-9103

CALIPER-BRAKE, RH

$188.99

$

In Stock, Qty 8

0

17

Exmark 116-9066

126-4251
(Superseded to 126-4251)

$21.99

$

Usually ships in 3-6 days

0

18

Exmark 126-3715

ARM-INNER, LH

$6.49

$

Usually ships in 3-6 days

0

19

Exmark 126-3716

ARM-INNER, RH

$6.49

$

Usually ships in 3-6 days

0

20

Exmark 116-9080

SHAFT-CROSS
(Superseded to 135-7800)

$60.99

$

In Stock, only 2 left!

0

21

Exmark 115-7109

WASHER-FLAT

$1.49

$

Usually ships in 3-6 days

0

22

Exmark 98-9940

SCREW-HHF

$2.49

$

In Stock, only 3 left!

0

23

Exmark 116-9608

BRACKET-L

$47.99

$

Usually ships in 3-6 days

0

24

Exmark 116-9086

LINKAGE-MID

$5.99

$

In Stock, only 1 left!

0

25

Exmark 126-3693

YOKE-OFFSET

$22.99

$

Usually ships in 3-6 days

0

26

Exmark 116-9085

SPRING-COMPRESSION

$1.49

$

In Stock, only 1 left!

0

27

Exmark 3220-2

NUT-JAM

$1.49

$

In Stock, Qty 20+

0

28

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

29

Exmark 1-808280

PIN-CLEVIS

$2.99

$

In Stock, only 2 left!

0

30

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

31

Exmark 116-6639

PIN-COTTER, LOCKING

$1.49

$

In Stock, only 4 left!

0

32

Exmark 116-9102

FRONT LINKAGE ASM
(Superseded to 135-7805)

$67.99

$

Usually ships in 3-6 days

0

32:2

Exmark 94-7572

END-TIE ROD, RH

$34.99

$

In Stock, only 2 left!

0

32:3

Exmark 3220-3

NUT-HJ

$0.99

$

In Stock, Qty 17

0

33

Exmark 119-1415

PIN-COTTER, LOCKING

$1.49

$

In Stock, Qty 7

0

34

Exmark 3296-6

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

35

Exmark 116-9071

REAR LINKAGE ASM

$25.99

$

In Stock, only 1 left!

0

35:1

Exmark 116-9070

116-9071
(Superseded to 116-9071)

$25.99

$

In Stock, only 1 left!

0

35:3

Exmark 3220-1

NUT-JAM

$1.49

$

In Stock, only 2 left!

0

36

Exmark 32120-19

E-RING

$2.99

$

In Stock, Qty 14

0

37

Exmark 3230-2

BOLT-CARR

$1.49

$

In Stock, Qty 5

0

38

Exmark 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

39

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

40

Exmark 116-1746

WHEEL HUB ASM
(Superseded to 142-2701)

$114.99

$

In Stock, only 2 left!

0

40:2

Exmark 116-1696

STUD-WHEEL

$5.49

$

In Stock, Qty 20+

0

41

Exmark 116-1399

LOCKNUT

$14.99

$

In Stock, only 1 left!

0

42

Exmark 126-4162

DECAL-COVER

$5.49

$

Usually ships in 3-6 days

0

43

Exmark 92-5727

SCREW-LOCK, PATCH

$3.49

$

In Stock, Qty 5

0
