LZX38KC726SS - Exmark 72" Lazer Z X-Series Zero-Turn Mower, 38hp Kohler (SN: 000920000 - 000999999) (2011) Seat W/Tracks Assembly No. 116-4678 Parts Diagram

72" Lazer Z X-Series Zero-Turn Mower, 38hp Kohler

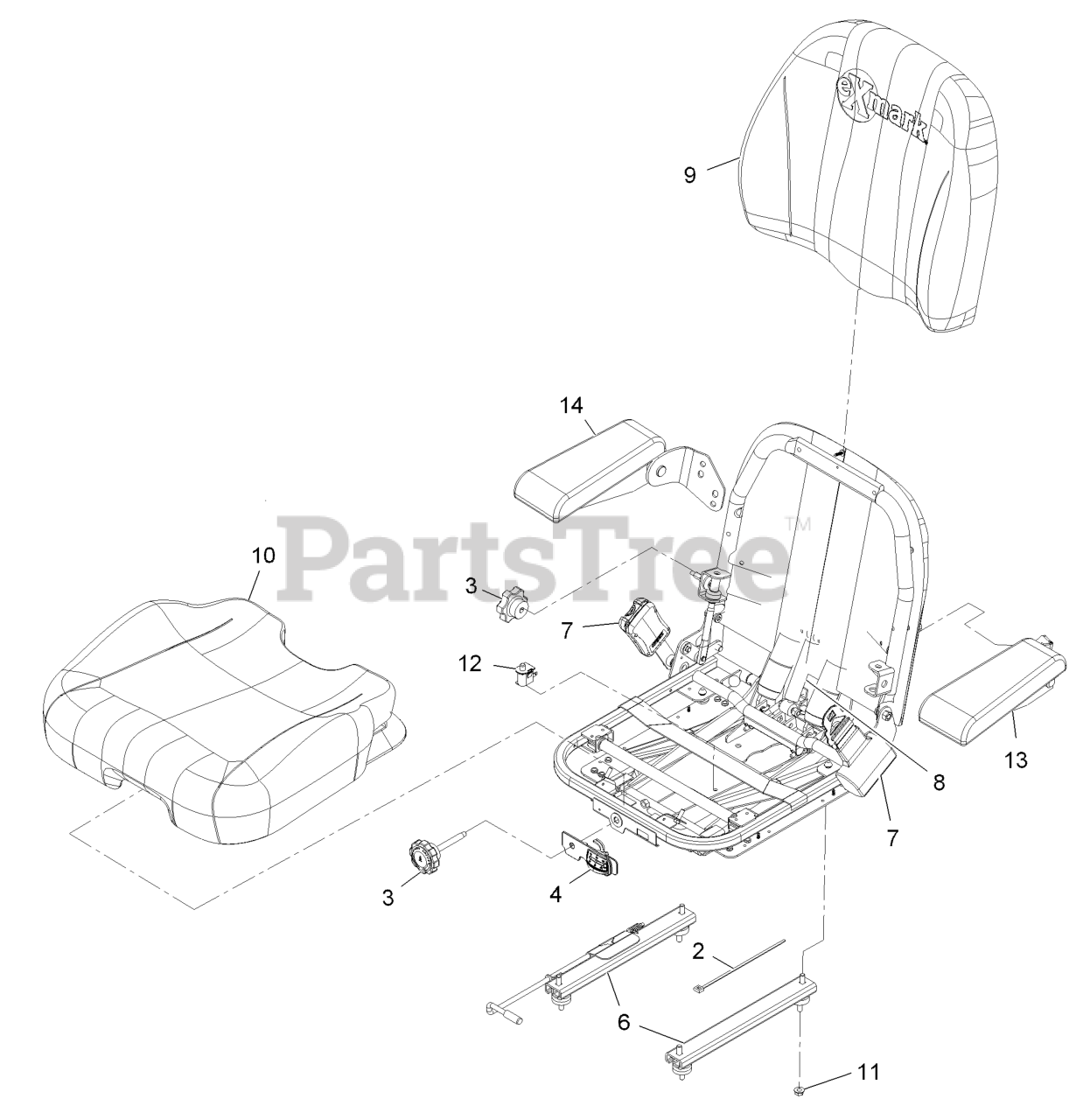

Seat W/Tracks Assembly No. 116-4678 Parts Diagram

  • Title

2

Exmark 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 8

0

3

Exmark 107-1881

KNOB KIT

$219.99

$

Usually ships in 3-6 days

0

4

Exmark 107-1885

WEIGHT INDICATOR KIT

$57.99

$

In Stock, only 1 left!

0

6

Exmark 116-0333

SEAT TRACK KIT

$264.99

$

Usually ships in 3-6 days

0

7

Exmark 116-0751

SEAT BELT KIT (SHORT)

$311.99

$

Usually ships in 3-6 days

0

8

Exmark 116-0998

SHOCK ABSORBER KIT

$172.99

$

Usually ships in 3-6 days

0

9

Exmark 116-3922

KIT,BACK CUSHION AND COVE

$

$

Not available

10

Exmark 116-3923

KIT,BOTTOM CUSHION AND CO

$

$

Not available

11

Exmark 32128-25

NUT-HF

$3.49

$

In Stock, Qty 12

0

12

Exmark 82-2190

SWITCH-BAIL

$14.99

$

In Stock, Qty 10

0

13

Exmark 116-5708

ARM REST ASM,SUSP.SEAT LH

$166.99

$

Usually ships in 3-6 days

0

14

Exmark 116-5709

ARM REST ASM,SUSP.SEAT RH

$166.99

$

Usually ships in 3-6 days

0

99

Exmark 109-3345

WEIGHT ADJUST KIT

Note: Not illustrated

$167.99

$

Usually ships in 3-6 days

0

99

Exmark 103-4574

DECAL,EXMARK LOGO

Note: Not illustrated

$17.99

$

Usually ships in 3-6 days

0

99

Exmark 109-3343

SPRING AND SADDLE KIT

Note: Not illustrated

$167.99

$

Usually ships in 3-6 days

0

99

Exmark 116-5998

KIT,SEAT BACK PANEL

Note: Not illustrated

$

$

Not available
