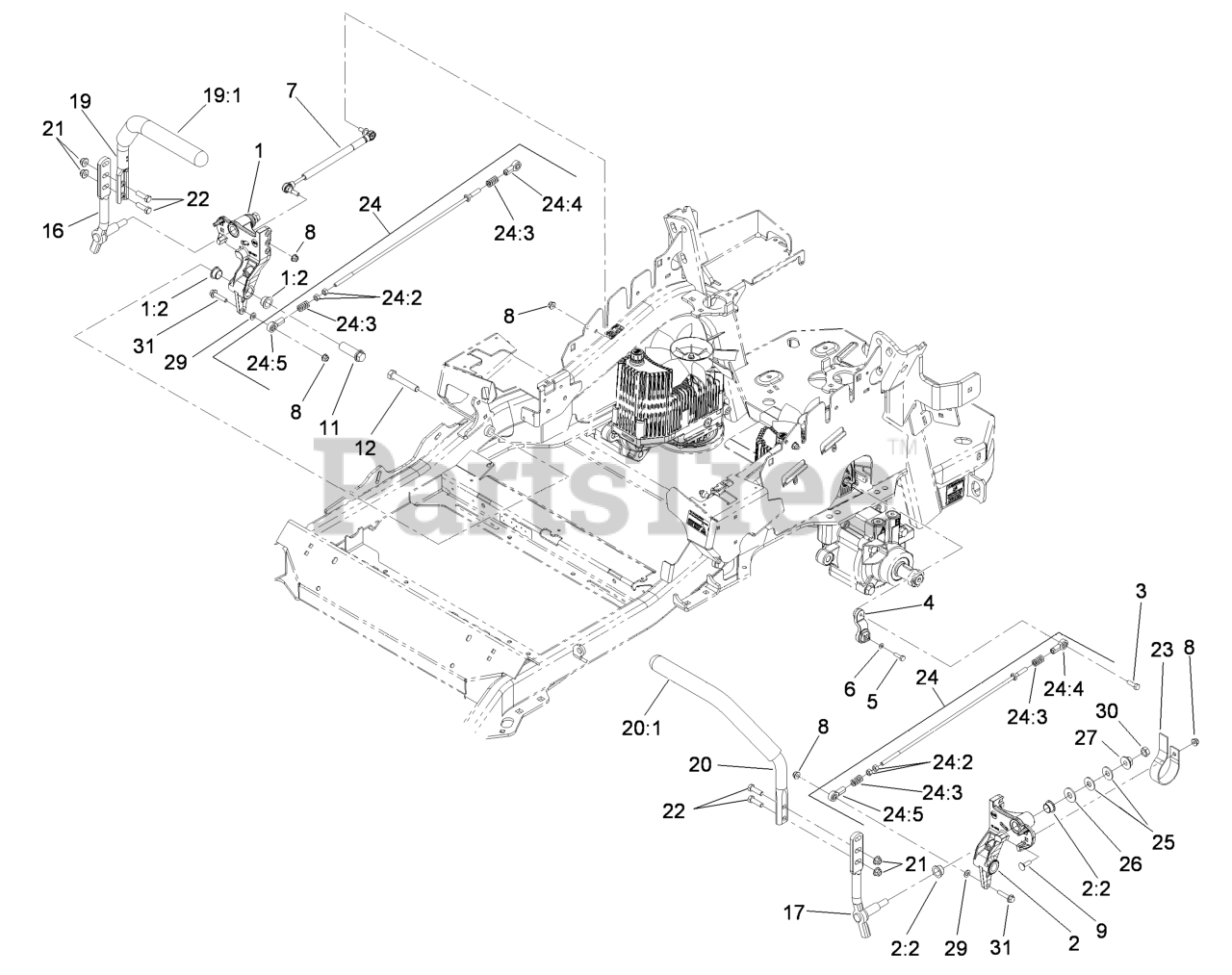

LZX38KC606 - Exmark 60" Lazer Z X-Series Zero-Turn Mower, 38hp Kohler (SN: 000920000 - 000999999) (2011) Motion Control Assembly Parts Diagram

60" Lazer Z X-Series Zero-Turn Mower, 38hp Kohler

Motion Control Assembly Parts Diagram

  • Title

1

Exmark 116-0880

RH MOTION CONTROL AND BUSHING ASM

$59.99

$

In Stock, only 1 left!

0

1:2

Exmark 109-8054

BUSHING-FLANGE

$5.49

$

In Stock, Qty 20+

0

2

Exmark 116-0881

LH MOTION CONTROL AND BUSHING ASM

$59.99

$

In Stock, only 1 left!

0

2:2

Exmark 109-8054

BUSHING-FLANGE

$5.49

$

In Stock, Qty 20+

0

3

Exmark 116-0648

SCREW-HH, THREAD LOCKING

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$1.49

$

In Stock, Qty 20+

0

4

Exmark 109-4581

ARM-CONTROL, PUMP

$9.49

$

In Stock, only 4 left!

0

5

Exmark 9080046

SCREW-HH

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$5.49

$

In Stock, Qty 16

0

6

Exmark 1-303435

WASHER-SPRING

$1.49

$

In Stock, Qty 20+

0

7

Exmark 116-0027

DAMPER-CONTROL, MOTION
(Superseded to 142-8117)

$103.99

$

Usually ships in 3-6 days

0

8

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

9

Exmark 3230-2

BOLT-CARR

$1.49

$

In Stock, Qty 5

0

11

Exmark 109-5891

HUB-THREADED

$14.99

$

In Stock, only 2 left!

0

12

Exmark 325-12

SCREW-HH

$6.49

$

In Stock, only 2 left!

0

16

Exmark 116-0039

LEVER-CONTROL MOTION, RH

$53.99

$

In Stock, only 1 left!

0

17

Exmark 116-0040

LEVER-CONTROL MOTION, LH

$53.99

$

In Stock, only 1 left!

0

19

Exmark 109-6589

RH STEERING HANDLE ASM
(Superseded to 135-4371)

$82.99

$

Usually ships in 3-6 days

0

19:1

Exmark 109-5668

GRIP-LEVER, CONTROL

$14.99

$

In Stock, Qty 7

0

20

Exmark 109-6590

LH STEERING HANDLE ASM
(Superseded to 135-4373)

$82.99

$

Usually ships in 3-6 days

0

20:1

Exmark 109-5668

GRIP-LEVER, CONTROL

$14.99

$

In Stock, Qty 7

0

21

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

22

Exmark 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

23

Exmark 109-5575

SPRING-LEAF

$15.99

$

Usually ships in 3-6 days

0

24

Exmark 109-8106

FRONT PUMP LINKAGE ASM

$76.99

$

Usually ships in 3-6 days

0

24:2

Exmark 3219-2

NUT-HEX

$0.99

$

In Stock, Qty 11

0

24:3

Exmark 1-323245

SPRING-COMPRESSION

$6.49

$

In Stock, only 2 left!

0

24:4

Exmark 1-633152

BALLJOINT-LH

$20.99

$

In Stock, only 3 left!

0

24:5

Exmark 1-543017

BALLJOINT-RH

$20.99

$

In Stock, only 4 left!

0

25

Exmark 109-9505

WASHER-SPRING

$5.49

$

In Stock, only 4 left!

0

26

Exmark 3256-6

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

27

Exmark 32128-56

NUT-HF

$10.99

$

Usually ships in 3-6 days

0

29

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

30

Exmark 3218-5

NUT-JAM

$1.49

$

In Stock, Qty 20+

0

31

Exmark 115-1794

SCREW-HHF

$1.99

$

In Stock, Qty 11

0
