LZX34KC726 - Exmark 72" Lazer Z X-Series Zero-Turn Mower, 34hp Kohler (SN: 000920000 - 000999999) (2011) Deck Lift Assembly Parts Diagram

72" Lazer Z X-Series Zero-Turn Mower, 34hp Kohler

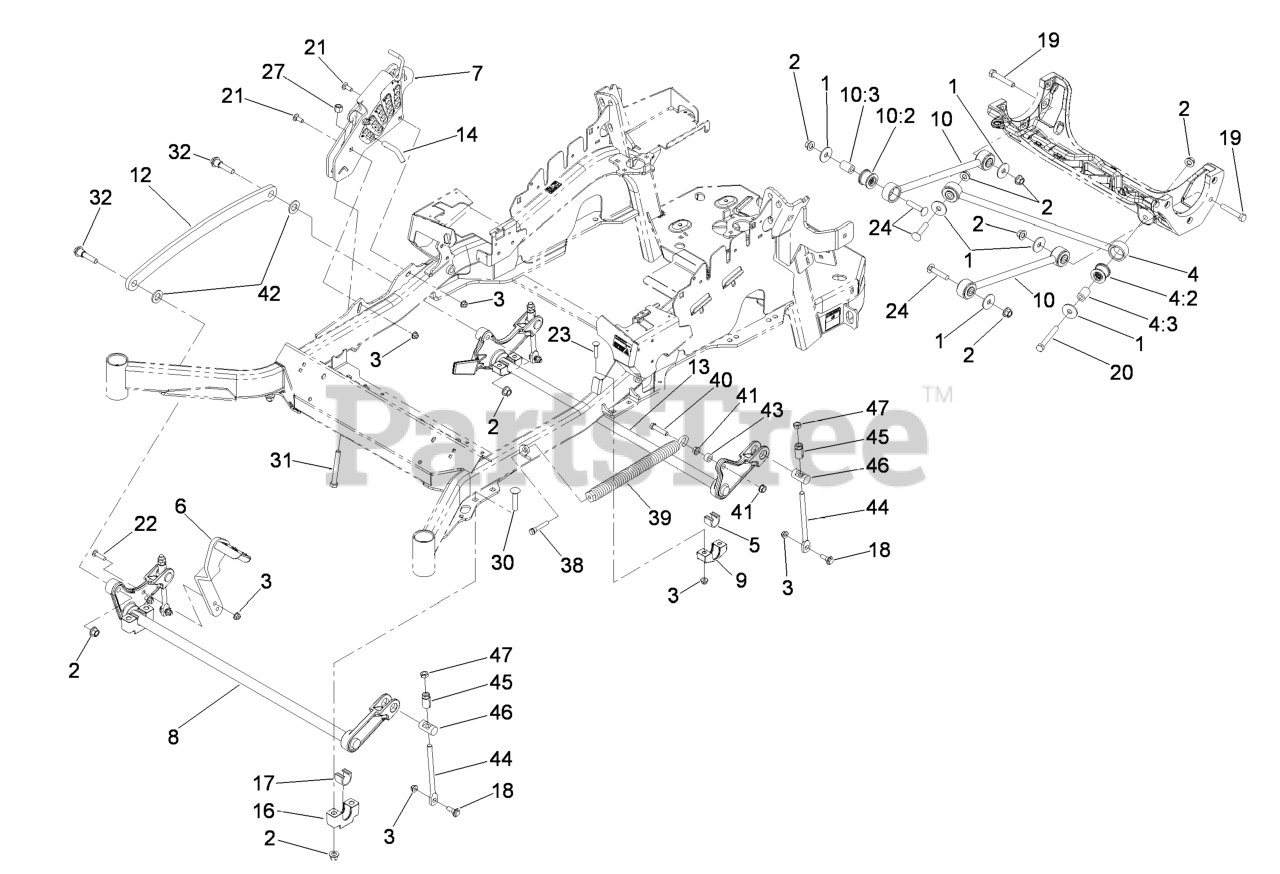

Deck Lift Assembly Parts Diagram

  • Title

1

Exmark 86-1990

WASHER-THRUST

$3.99

$

In Stock, only 3 left!

0

2

Exmark 99-5107

Nut-Lock 1/2-13

$1.99

$

In Stock, Qty 20+

0

3

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

4

Exmark 109-5013

PANHARD ROD ASM

$142.99

$

In Stock, Qty 6

0

4:2

Exmark 109-5009

BUSHING-SUSPENSION, RUBBER

$5.49

$

In Stock, Qty 15

0

4:3

Exmark 109-5010

SPACER

$12.99

$

In Stock, Qty 6

0

5

Exmark 109-7173

BEARING-CROSS SHAFT, REAR

$5.49

$

In Stock, Qty 8

0

6

Exmark 116-1919-01

LEVER-FOOT

$99.99

$

Usually ships in 3-6 days

0

7

Exmark 109-7438

HOC ASM

$273.99

$

In Stock, only 1 left!

0

8

Exmark 116-1771-03

126-2477-03
(Superseded to 126-2477-03)

$241.99

$

Usually ships in 3-6 days

0

9

Exmark 116-0818-03

132-4719
(Superseded to 132-4719)

$44.99

$

In Stock, only 3 left!

0

10

Exmark 109-7952

DECK STRUT ASM

$144.99

$

In Stock, only 2 left!

0

10:2

Exmark 109-5009

BUSHING-SUSPENSION, RUBBER

$5.49

$

In Stock, Qty 15

0

10:3

Exmark 109-5010

SPACER

$12.99

$

In Stock, Qty 6

0

12

Exmark 116-0797-03

LINK-LIFT, DECK

$136.99

$

Usually ships in 3-6 days

0

13

Exmark 116-2645-03

LIFT-DECK, REAR

$394.99

$

Usually ships in 3-6 days

0

14

Exmark 109-8757

PIN-HOC

$8.99

$

In Stock, only 3 left!

0

16

Exmark 109-9409

SUPPORT-CROSS SHAFT, BEARING

$14.99

$

In Stock, Qty 6

0

17

Exmark 109-9410

BEARING-CROSS SHAFT, FRON

$5.49

$

In Stock, Qty 13

0

18

Exmark 109-9840

SCREW-SHOULDER, HHF

$5.49

$

In Stock, Qty 11

0

19

Exmark 325-12

SCREW-HH

$6.49

$

In Stock, only 2 left!

0

20

Exmark 325-17

SCREW-HH

$5.99

$

In Stock, Qty 5

0

21

Exmark 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 14

0

22

Exmark 3231-4

SCREW-CARR

$3.99

$

In Stock, Qty 20+

0

23

Exmark 3231-5

SCREW-CARR

$1.49

$

In Stock, only 2 left!

0

24

Exmark 3233-34

SCREW-CARR

$9.49

$

In Stock, only 3 left!

0

27

Exmark 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

30

Exmark 116-1700

Bolt-Carriage 1/2-13 X 2 1/2 Spl Neck

$5.49

$

Usually ships in 3-6 days

0

31

Exmark 116-0559

BOLT-TAP

$6.49

$

Usually ships in 3-6 days

0

32

Exmark 116-2022

SCREW-HHF, SHOULDER

$8.99

$

Usually ships in 3-6 days

0

38

Exmark 92-7674

BOLT-SHOULDER

$2.99

$

Usually ships in 3-6 days

0

39

Exmark 116-0000

SPRING-EXTENSION

$136.99

$

Usually ships in 3-6 days

0

40

Exmark 109-9065

SCREW-HH

$3.49

$

In Stock, Qty 10

0

41

Exmark 32128-37

NUT-HF

$4.49

$

In Stock, Qty 18

0

42

Exmark 3256-28

WASHER-FLAT

$3.49

$

In Stock, Qty 20+

0

43

Exmark 116-2695

SPACER

$19.99

$

Usually ships in 3-6 days

0

44

Exmark 109-8007

LINK-ADJUSTER, DECK LIFT

$15.99

$

In Stock, Qty 11

0

45

Exmark 109-7840

ADJUSTER-LIFT, DECK

$7.99

$

In Stock, Qty 10

0

46

Exmark 109-8353

TRUNNION

$14.99

$

In Stock, Qty 6

0

47

Exmark 3218-5

NUT-JAM

$1.49

$

In Stock, Qty 20+

0
