LZX29KA606SS - Exmark 60" Lazer Z X-Series Zero-Turn Mower, 29hp Kawasaki (SN: 000920000 - 000999999) (2011) LH Hydro Assembly No. 116-1326 Parts Diagram

60" Lazer Z X-Series Zero-Turn Mower, 29hp Kawasaki

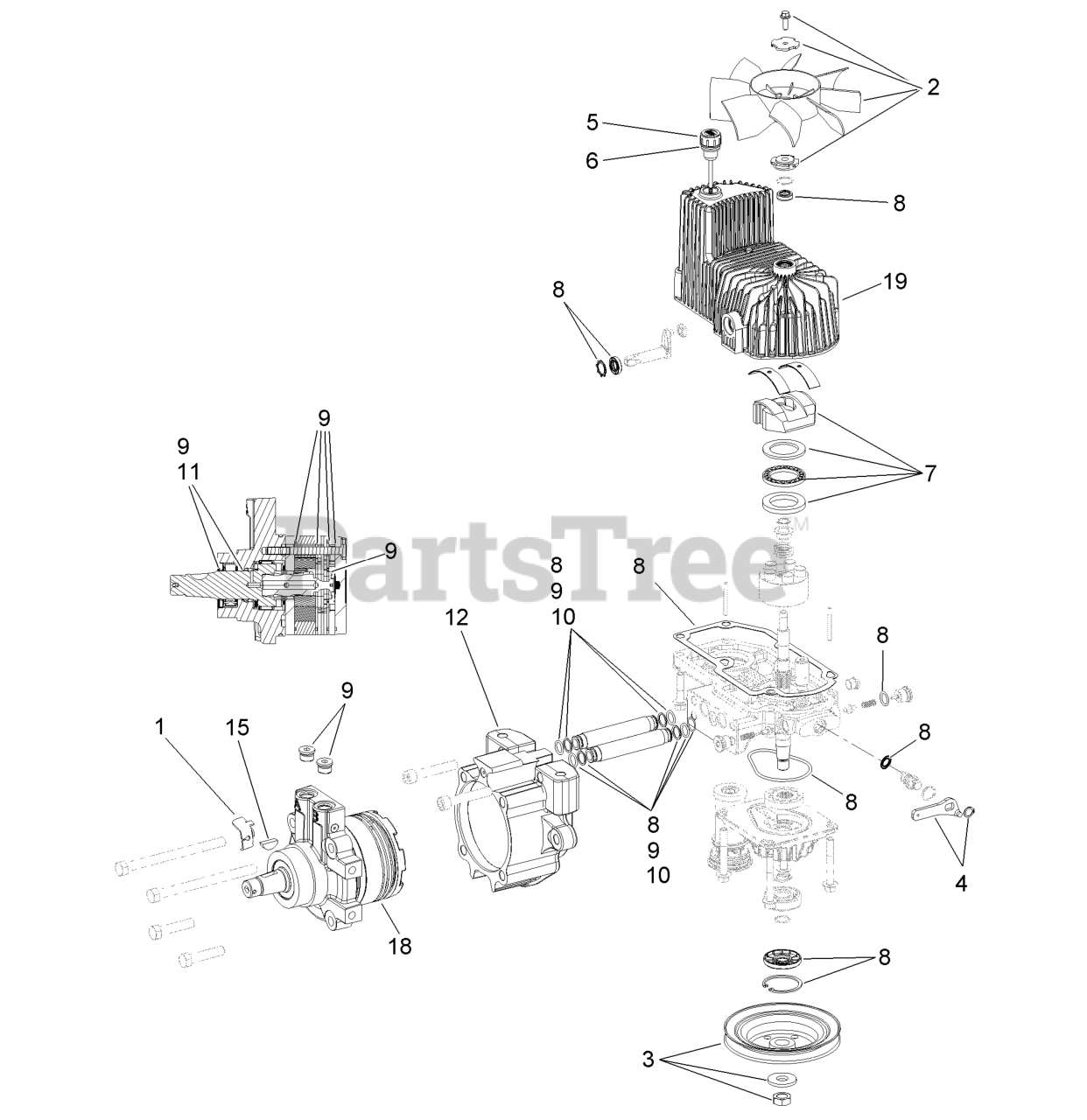

LH Hydro Assembly No. 116-1326 Parts Diagram

  • Title

1

Exmark 116-1758

BRACKET-ANCHOR, CABLE

$14.99

$

Usually ships in 3-6 days

0

2

Exmark 116-0233

FAN KIT

$

$

Not available

3

Exmark 116-0234

PULLEY KIT

$172.99

$

Usually ships in 3-6 days

0

4

Exmark 116-0235

HANDLE-BYPASS VALVE, HYDRO

$15.99

$

Usually ships in 3-6 days

0

5

Exmark 116-0236

DIPSTICK-HYDRO W/GASKET

$50.99

$

In Stock, only 4 left!

0

6

Exmark 116-0237

GASKET-DIPSTICK, HYDRO

$14.99

$

In Stock, only 2 left!

0

7

Exmark 116-1367

SWASH BLOCK KIT

$505.99

$

Usually ships in 3-6 days

0

8

Exmark 116-1368

PUMP SEAL KIT
(Superseded to 142-3604)

$152.99

$

In Stock, Qty 9

0

9

Exmark 116-1369

MOTOR SEAL KIT

$269.99

$

Usually ships in 3-6 days

0

10

Exmark 116-1370

TUBE SEAL KIT

$30.99

$

In Stock, only 1 left!

0

11

Exmark 116-1371

OUTPUT SHAFT SEAL KIT

$139.99

$

In Stock, only 1 left!

0

12

Exmark 116-2992

116-5469
(Superseded to 116-5469)

$295.99

$

Usually ships in 3-6 days

0

15

Exmark 3257-42

KEY-WOODRUFF

$6.49

$

In Stock, Qty 12

0

18

Exmark 116-2990

116-8917
(Superseded to 135-7907)

$3541.99

$

Usually ships in 3-6 days

0

19

Exmark 116-3287

HOUSING-HYDRO, LH
(Superseded to 142-4460)

$683.99

$

Usually ships in 3-6 days

0

99

Exmark 116-1373

FLOW TEST KIT

Note: Not illustrated

$1127.99

$

Usually ships in 3-6 days

0
