LZX29KA606 - Exmark 60" Lazer Z X-Series Zero-Turn Mower, 29hp Kawasaki (SN: 000920000 - 000999999) (2011) Controls Assembly Parts Diagram

60" Lazer Z X-Series Zero-Turn Mower, 29hp Kawasaki

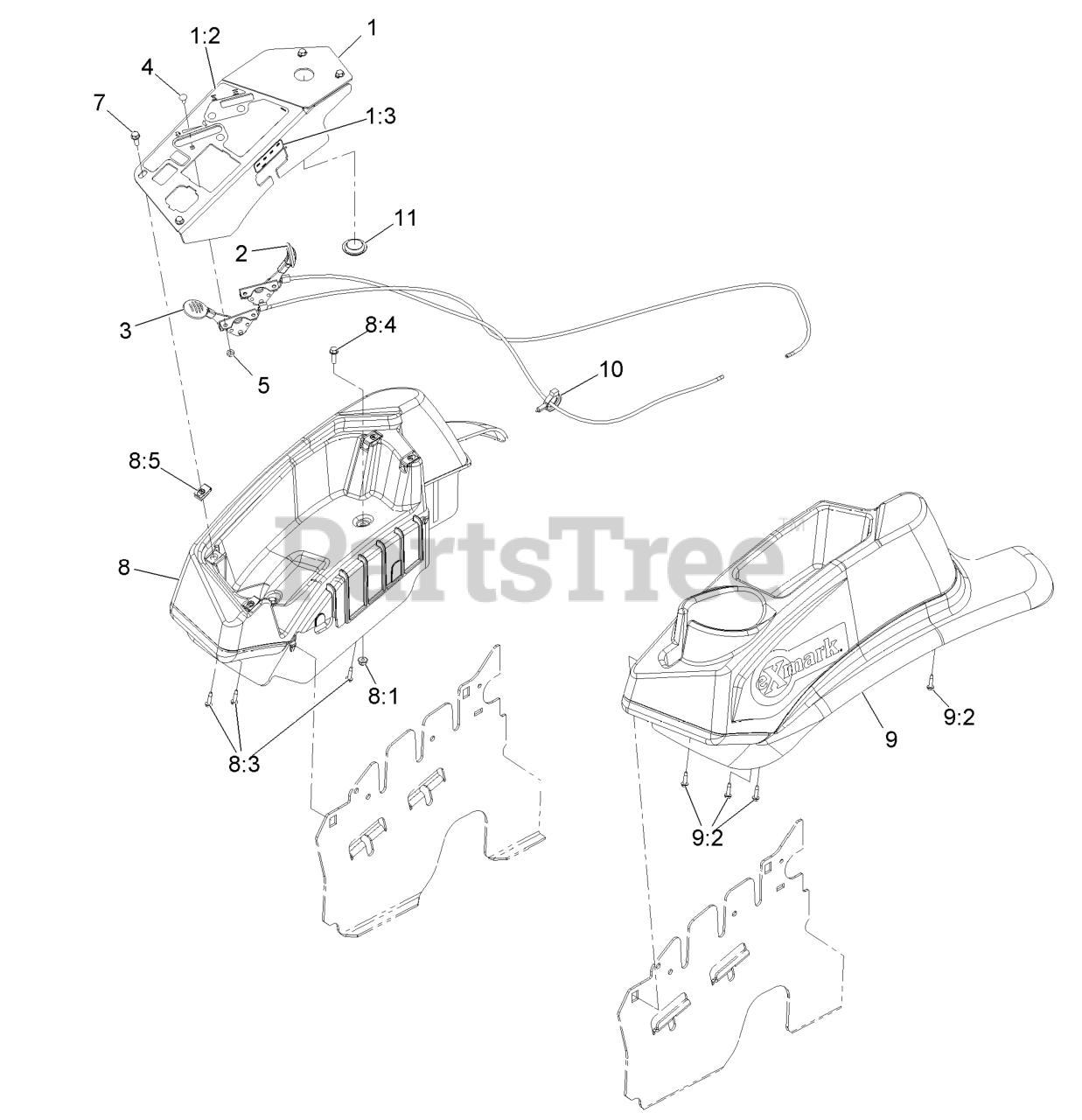

Controls Assembly Parts Diagram

  • Title

1

Exmark 109-8484

CONSOLE,PANEL W/DECAL

$95.99

$

Usually ships in 3-6 days

0

1:2

Exmark 109-8483

DECAL-CONTROL PANEL

$20.99

$

In Stock, only 1 left!

0

1:3

Exmark 109-7330

DECAL-FUSE

$5.99

$

Usually ships in 3-6 days

0

2

Exmark 109-8167

ASM, CHOKE CABLE

$49.99

$

In Stock, Qty 6

0

3

Exmark 116-1972

ASM,THROTTLE CABLE

$46.99

$

In Stock, Qty 11

0

4

Exmark 1-807513

BOLT-CARR

$2.99

$

In Stock, Qty 15

0

5

Exmark 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

7

Exmark 32105-15

SCREW-HWH

$2.99

$

In Stock, Qty 14

0

8

Exmark 109-9341

CONSOLE,RH NARROW ASM

$225.99

$

Usually ships in 3-6 days

0

8:1

Exmark 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

8:3

Exmark 109-9345

SCREW,THD FORM,HWH

$1.49

$

Usually ships in 3-6 days

0

8:4

Exmark 32105-15

SCREW-HWH

$2.99

$

In Stock, Qty 14

0

8:5

Exmark 10706-9

Nut-Retainer-Panel 1/4-20

$2.99

$

In Stock, Qty 20+

0

9

Exmark 109-9342

CONSOLE.LH NARROW ASM

$225.99

$

Usually ships in 3-6 days

0

9:2

Exmark 109-9345

SCREW,THD FORM,HWH

$1.49

$

Usually ships in 3-6 days

0

10

Exmark 105-1853

CLAMP-HOSE

$5.49

$

In Stock, only 4 left!

0

11

Exmark 116-1875

PLUG-PLASTIC

$2.99

$

Usually ships in 3-6 days

0
