LZX29EKC606CA - Exmark 60" Lazer Z X-Series Zero-Turn Mower, Kohler, CARB (SN: 000920000 - 000999999) (2011) Seat Assembly Parts Diagram

60" Lazer Z X-Series Zero-Turn Mower, Kohler, CARB

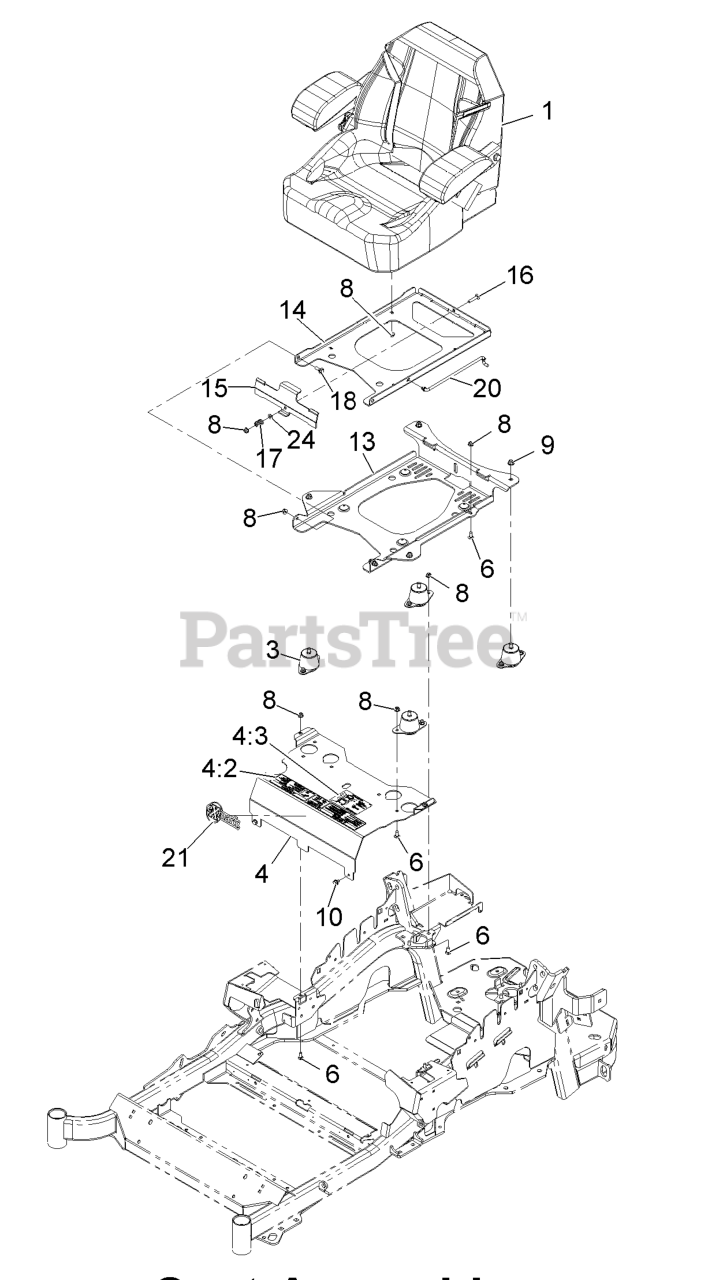

Seat Assembly Parts Diagram

  • Title

1

Exmark 116-4474

126-5801
(Superseded to 126-5801)

$1339.99

$

Usually ships in 3-6 days

0

3

Exmark 109-9034

ISOLATOR-SEAT

$66.99

$

In Stock, Qty 6

0

4

Exmark 116-2323

MOUNT-SEAT

$234.99

$

Usually ships in 3-6 days

0

4:2

Exmark 109-7069

DECAL-CONSOLE

$14.99

$

In Stock, only 1 left!

0

4:3

Exmark 116-0211

DECAL-SERVICE AID

$11.99

$

In Stock, only 1 left!

0

6

Exmark 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

8

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

9

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

10

Exmark 9266934

SCREW

$8.99

$

In Stock, only 2 left!

0

13

Exmark 116-0181-03

PLATE-SUPPORT, SEAT TILT

$

$

Not available

14

Exmark 116-0179-03

PLATE-FRAME, SEAT TILT

$167.99

$

Usually ships in 3-6 days

0

15

Exmark 109-9881-03

PLATE-LATCH, SEAT

$19.99

$

Usually ships in 3-6 days

0

16

Exmark 3230-4

BOLT-CARR

$3.99

$

In Stock, Qty 6

0

17

Exmark 107-3017

SPRING-COMPRESSION

$2.99

$

In Stock, only 1 left!

0

18

Exmark 116-1297

SCREW-SHOULDER

$5.49

$

Usually ships in 3-6 days

0

20

Exmark 116-0070

ROD-PROP

$20.99

$

Usually ships in 3-6 days

0

21

Exmark 103-2883

DECAL

$10.99

$

In Stock, Qty 9

0

24

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0
