LZX29EKC606 - Exmark 60" Lazer Z X-Series Zero-Turn Mower, 29hp Kohler (SN: 000920000 - 000999999) (2011) Engine Assembly Parts Diagram

60" Lazer Z X-Series Zero-Turn Mower, 29hp Kohler

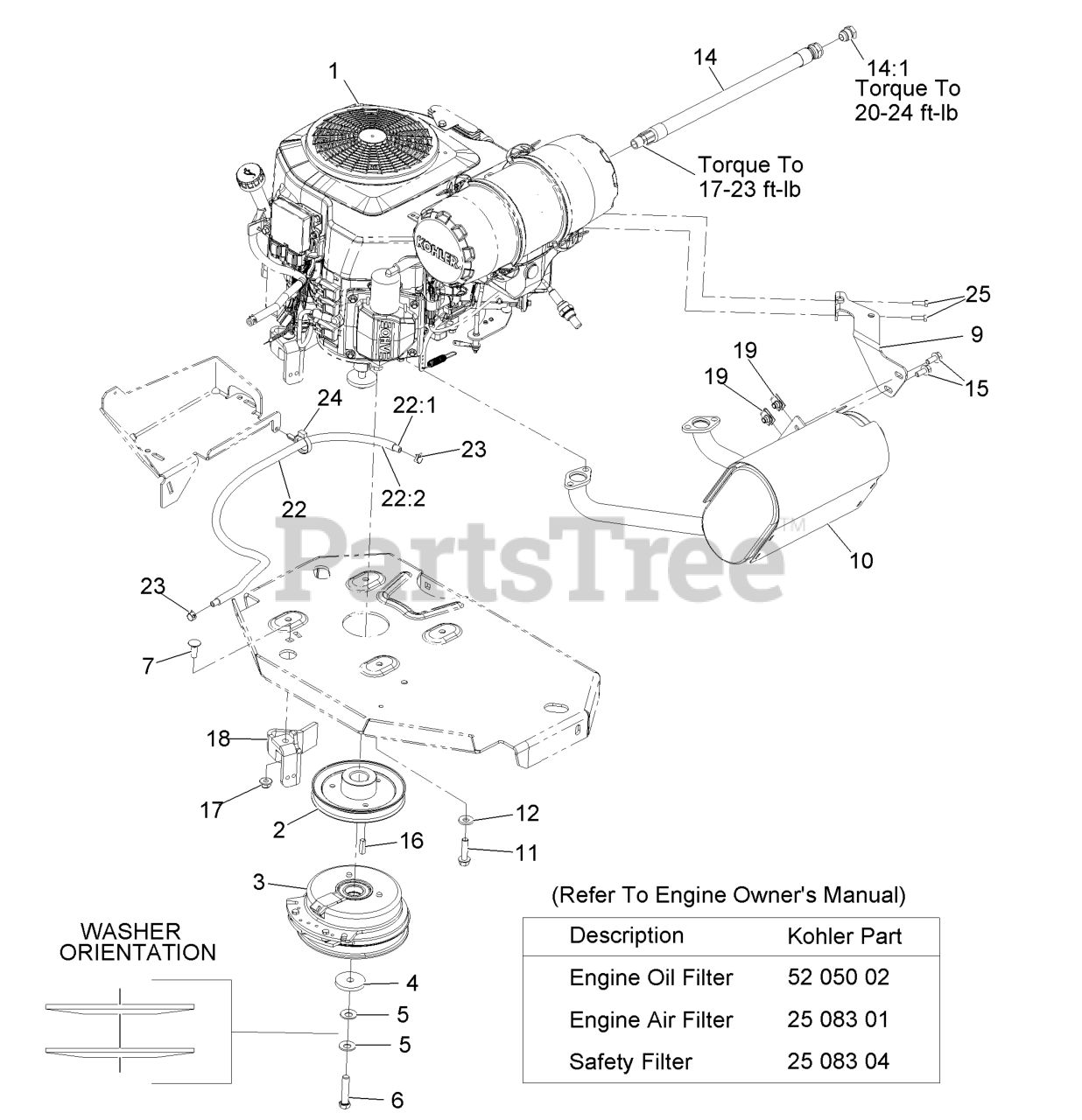

Engine Assembly Parts Diagram

  • Title
1

Engine,Koh 29hp Efi

Note: Not serviced separately\nObtain parts from w.kohlerplus.com

$

$

Not available

2

Exmark 109-9905

SHEAVE
(Superseded to 142-9445)

$51.99

$

In Stock, Qty 19

0

3

Exmark 116-1620

CLUTCH KIT

$359.99

$

In Stock, Qty 9

0

4

Exmark 109-6919

WASHER-CLUTCH

$5.49

$

In Stock, Qty 6

0

5

Exmark 1-603610

WASHER-SPRING

$5.49

$

In Stock, Qty 20+

0

6

Exmark 109-9762

SCREW-HH W/LOCTITE

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$5.49

$

In Stock, Qty 9

0

7

Exmark 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

9

Exmark 116-4297

MUFFLER BRACKET KIT

$75.99

$

In Stock, only 1 left!

0

10

Exmark 116-2038

135-2127
(Superseded to 142-6858)

$485.99

$

In Stock, Qty 9

0

11

Exmark 32144-102

SCREW-HWH

$3.49

$

Usually ships in 3-6 days

0

12

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

14

Exmark 116-0013

116-5316
(Superseded to 116-5316)

$54.99

$

In Stock, Qty 14

0

14:1

$8.49

$

Usually ships in 3-6 days

0

15

Exmark 3234-5

SCREW-HHF

$1.49

$

In Stock, Qty 5

0

$2.49

$

In Stock, Qty 20+

0

17

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

18

Exmark 116-2612-01

CLUTCH-ANCHOR

$55.99

$

In Stock, only 2 left!

0

19

$2.99

$

In Stock, Qty 20+

0

22

Exmark 117-3893

FUEL LINE ASM

$49.99

$

Usually ships in 3-6 days

0

22:1

Exmark 109-0307

HOSE-FUEL

$21.99

$

In Stock, only 1 left!

0

22:2

Exmark 117-3892

SLEEVE-THERMAL

$33.99

$

Usually ships in 3-6 days

0

23

Exmark 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

24

Exmark 104-2490

CLAMP-HOSE

$4.99

$

In Stock, only 2 left!

0

25

Exmark 116-4295

SCREW-HH M6-1 X 20Mm W/Patch

$5.49

$

Usually ships in 3-6 days

0
