LZX24KA526 - Exmark 52" Lazer Z X-Series Zero-Turn Mower, 24hp Kawasaki (SN: 000920000 - 000999999) (2011) Pump Ilder Assembly No. 116-1255 Parts Diagram

52" Lazer Z X-Series Zero-Turn Mower, 24hp Kawasaki

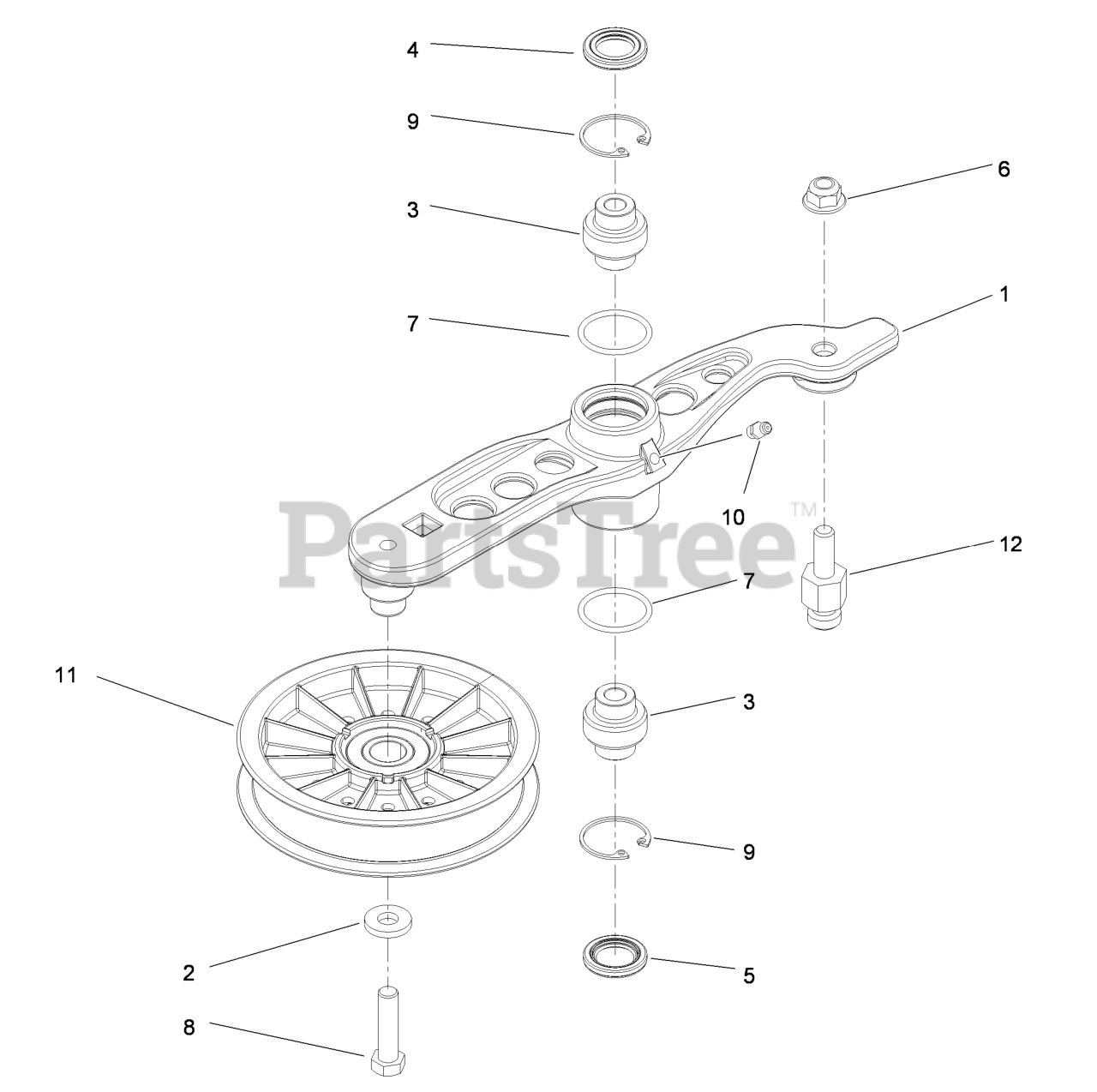

Pump Ilder Assembly No. 116-1255 Parts Diagram

  • Title
1

Arm-Pump, Idler

Note: Not serviced separately

$

$

Not available

2

$5.49

$

In Stock, Qty 20+

0

3

Exmark 103-3504

BEARING-SPHERICAL

$25.99

$

In Stock, Qty 20+

0

4

Exmark 103-3505

SEAL-LIP, DOUBLE

$5.49

$

In Stock, Qty 20+

0

5

Exmark 103-3506

SEAL-LIP, SINGLE

$5.49

$

In Stock, Qty 20+

0

6

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

7

$1.49

$

In Stock, Qty 20+

0

8

Exmark 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

9

Exmark 32120-10

RING-SNAP

$1.49

$

In Stock, Qty 20+

0

10

Exmark 302-19

FITTING-GREASE

$2.49

$

In Stock, Qty 20+

0

11

Exmark 109-8076

PULLEY-IDLER

$64.99

$

In Stock, Qty 20+

0

12

Exmark 116-3467

132-4724
(Superseded to 132-4724)

$5.49

$

In Stock, only 4 left!

0
