LZX23KC486 - Exmark 48" Lazer Z X-Series Zero-Turn Mower, 23hp Kohler (SN: 000920000 - 000999999) (2011) Deck Assembly Parts Diagram

48" Lazer Z X-Series Zero-Turn Mower, 23hp Kohler

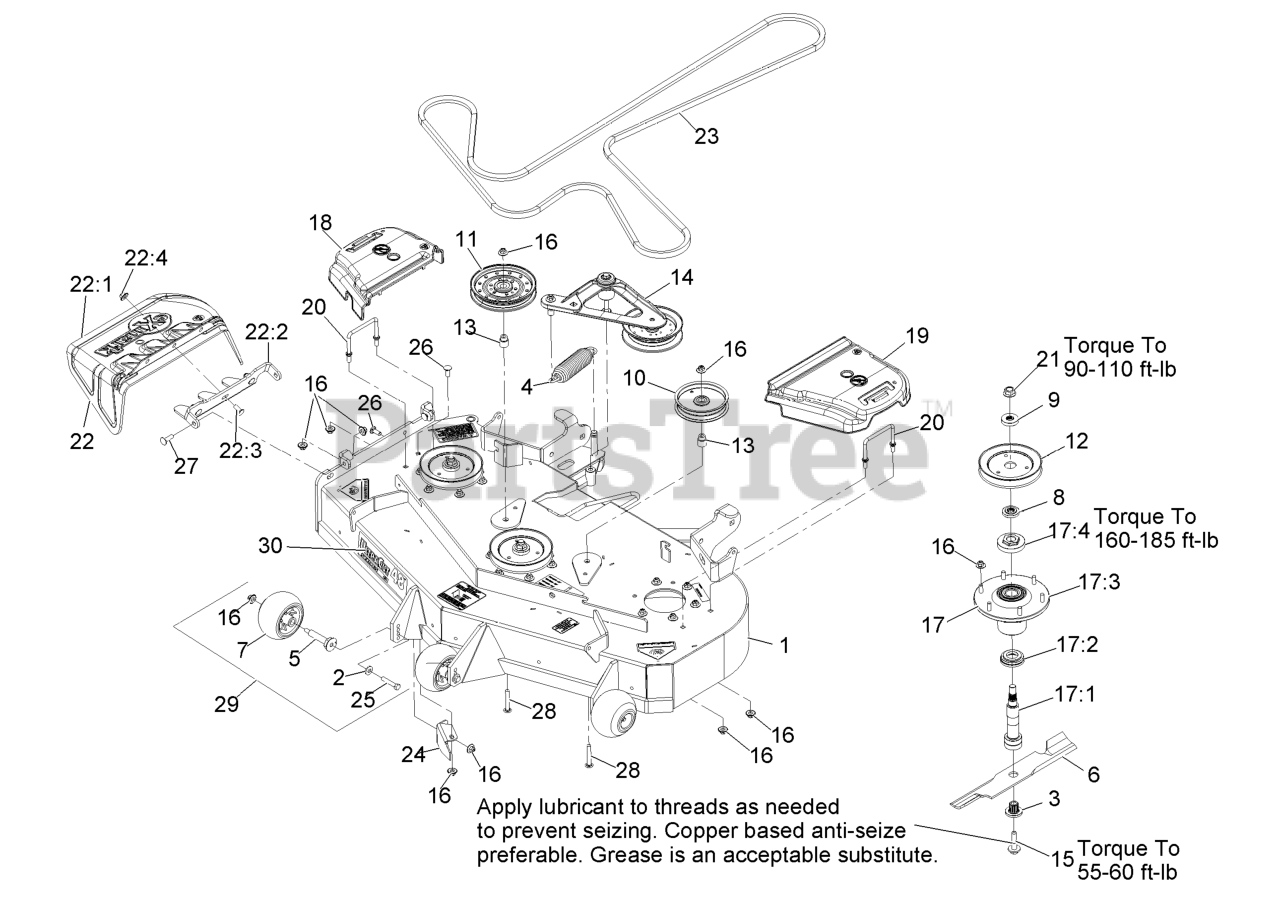

Deck Assembly Parts Diagram

  • Title

1

Exmark 109-9008

ASM,DECK W/DECALS 48

$4383.99

$

Usually ships in 3-6 days

0

2

Exmark 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

3

Exmark 103-3037

BUSHING,SPLINED

$23.99

$

In Stock, Qty 20+

0

4

Exmark 116-0133

116-6317
(Superseded to 116-6317)

$29.99

$

In Stock, Qty 20+

0

5

Exmark 109-9851

126-2928
(Superseded to 126-2928)

$28.99

$

In Stock, Qty 20+

0

6

Exmark 103-6381

103-6381-S
(Superseded to 103-6381-S)

$36.99

$

In Stock, Qty 20+

0

6

Exmark 103-6401

103-6401-S
(Superseded to 103-6401-S)

$33.99

$

In Stock, Qty 20+

0

6

Exmark 103-6396

116-5177-S
(Superseded to 116-5177-S)

$34.99

$

In Stock, Qty 20+

0

6

Exmark 103-6391

103-6391-S
(Superseded to 103-6391-S)

Note: Requires installation of mulch kit for proper mulching. See your Exmark dealer for details.

$34.99

$

In Stock, Qty 20+

0

6

Exmark 103-6386

103-6386-S
(Superseded to 103-6386-S)

$33.99

$

In Stock, Qty 20+

0

7

Exmark 103-8415

ROLLER-SCALP, ANTI

$25.99

$

In Stock, only 2 left!

0

8

Exmark 103-9522

SPACER,SPLINED STEPPED

$7.49

$

In Stock, Qty 20+

0

9

Exmark 103-9523

SPACER,SPLINED

$8.99

$

In Stock, Qty 16

0

10

Exmark 1-613098

PULLEY-IDLER

$50.99

$

In Stock, Qty 20+

0

11

Exmark 1-633109

126-7685
(Superseded to 126-7685)

$66.99

$

In Stock, Qty 20+

0

12

Exmark 116-1443

SHEAVE,BLADE DRIVE 5.90

$44.99

$

Usually ships in 3-6 days

0

13

Exmark 1-633456

BUSHING-IDLER

$5.49

$

In Stock, Qty 20+

0

14

Exmark 116-3755

DECK IDLER ASM

$283.99

$

In Stock, Qty 20+

0

15

Exmark 109-9220

SCREW,SEMS 1/2-20 X 2.19

$8.99

$

In Stock, Qty 20+

0

16

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

17

Exmark 109-6917

ASM,SPINDLE HOUSING

$425.99

$

In Stock, Qty 8

0

17:1

Exmark 103-9504

GUARD,BOTTOM

$13.99

$

In Stock, Qty 5

0

17:2

Exmark 103-9539

ASM,CUTTER HOUSING

$415.99

$

In Stock, only 2 left!

0

17:3

Exmark 109-0916

NUT, SPINDLE 7/8-14

$26.99

$

In Stock, only 2 left!

0

17:4

Exmark 109-6881

SPINDLE,DOUBLE SPLINE

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade anti-seize). See operator s manual for locations.

$152.99

$

In Stock, Qty 6

0

18

Exmark 109-6935

COVER-BELT, RH

$41.99

$

In Stock, Qty 8

0

19

Exmark 109-6936

COVER-BELT, LH

$41.99

$

In Stock, Qty 15

0

20

Exmark 109-6982

WIREFORM-COVER

$12.99

$

In Stock, Qty 5

0

21

Exmark 109-7033

NUT-FLANGE, CENTERLOCK

$2.99

$

In Stock, Qty 20+

0

22

Exmark 109-7188

ASM,DISCHARGE CHUTE

$123.99

$

In Stock, only 1 left!

0

22:1

Exmark 109-2738

CHUTE,DISCHARGE

$86.99

$

In Stock, Qty 12

0

22:2

Exmark 109-8675-01

BRACKET,DISCHARGE CHUTE

$57.99

$

In Stock, only 2 left!

0

22:3

Exmark 3231-22

SCREW-CARR

$3.99

$

In Stock, Qty 20+

0

22:4

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

23

Exmark 109-8070

BELT
(Superseded to 109-8070-SL)

$157.99

$

Usually ships in 3-6 days

0

24

Exmark 109-9010-01

BAFFLE,DISCHARGE

$

$

Not available

25

Exmark 3211-46

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

26

Exmark 3231-22

SCREW-CARR

$3.99

$

In Stock, Qty 20+

0

27

Exmark 3231-28

Bolt-Carriage 3/8-16 X 1 1/4

$4.99

$

In Stock, Qty 20+

0

28

Exmark 3231-44

SCREW-CARR

$2.99

$

In Stock, Qty 20+

0

29

Exmark 109-2098

116-9981
(Superseded to 116-9981)

$55.99

$

In Stock, Qty 20+

0

30

Exmark 109-9437

DECAL,ULTRACUT 48 SERIES

$

$

Not available
