LZUVQD7 - Exmark Ultra Vac QDS Bagger for Lazer Z Mower (SN: 408644346 - 411294211) (Rev A) (2021) Hopper Assembly Parts Diagram

Ultra Vac QDS Bagger for Lazer Z Mower

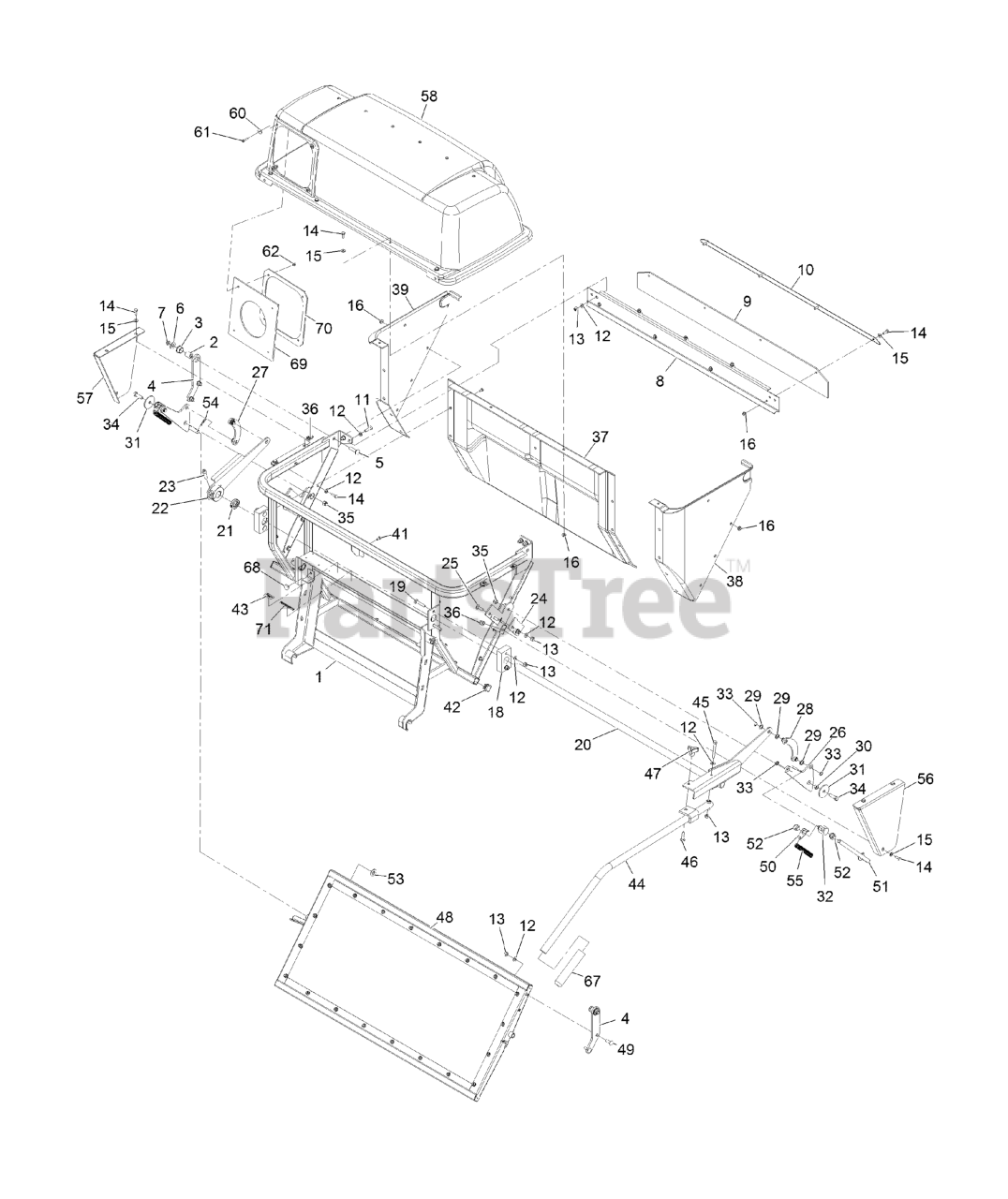

Hopper Assembly Parts Diagram

  • Title

1

Exmark 109-8701-03

FRAME ASM

$1358.99

$

Usually ships in 3-6 days

0

2

Exmark 103-6294

PIN-PIVOT, HINGE

$26.99

$

Usually ships in 3-6 days

0

3

Exmark 103-6295

BEARING

$15.99

$

Usually ships in 3-6 days

0

4

Exmark 103-4820-03

PLATE-HINGE

$60.99

$

Usually ships in 3-6 days

0

5

Exmark 3231-4

SCREW-CARR

$3.99

$

In Stock, Qty 20+

0

6

Exmark 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

7

Exmark 3296-59

121-4600
(Superseded to 121-4600)

$1.49

$

In Stock, Qty 17

0

8

Exmark 103-4412-03

PLATE-REAR

$64.99

$

Usually ships in 3-6 days

0

9

Exmark 103-4832

SEAL-DOOR

$23.99

$

Usually ships in 3-6 days

0

10

Exmark 103-4834-03

STRAP-HOLD DOWN

$29.99

$

Usually ships in 3-6 days

0

11

Exmark 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

12

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

13

Exmark 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

14

Exmark 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

15

Exmark 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

16

Exmark 32128-33

NUT-HF

$0.99

$

In Stock, Qty 6

0

18

Exmark 103-4402

BEARING

$45.99

$

Usually ships in 3-6 days

0

19

Exmark 3230-5

BOLT-CAR

$0.99

$

In Stock, only 3 left!

0

20

Exmark 103-5114-03

BELLCRANK

$232.99

$

Usually ships in 3-6 days

0

21

Exmark 103-4433

SHAFT-COLLAR

$6.99

$

Usually ships in 3-6 days

0

22

Exmark 103-8835-03

103-8839
(Superseded to 103-8839)

$160.99

$

Usually ships in 3-6 days

0

23

Exmark 3274-1

SCREW-HSH

$8.49

$

Usually ships in 3-6 days

0

24

Exmark 103-4408-03

STOP-LINKAGE

$19.99

$

Usually ships in 3-6 days

0

25

Exmark 3230-2

BOLT-CARR

$1.49

$

In Stock, Qty 5

0

26

Exmark 103-4424

ARM-LINKAGE, DOOR

$34.99

$

Usually ships in 3-6 days

0

27

Exmark 103-5111

LINK-RH

$62.99

$

Usually ships in 3-6 days

0

28

Exmark 103-5112

LINK-LH

$62.99

$

Usually ships in 3-6 days

0

29

Exmark 94-8196

WASHER-NYLON

$6.99

$

In Stock, only 3 left!

0

30

Exmark 103-4415

BEARING-LINKAGE, PIVOT

$26.99

$

Usually ships in 3-6 days

0

31

Exmark 103-4431

WASHER

$5.49

$

Usually ships in 3-6 days

0

32

Exmark 103-4848

TRUNNION-LINK

$39.99

$

Usually ships in 3-6 days

0

33

Exmark 32151-61

RING-RETAINING

$2.99

$

In Stock, Qty 20+

0

34

Exmark 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

35

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 16

0

36

Exmark 107069

CLIP

$2.99

$

In Stock, Qty 20+

0

37

Exmark 103-5102

PANEL-BAGGER

$241.99

$

Usually ships in 3-6 days

0

38

Exmark 103-7828

PANEL-BAGGER, LH

$185.99

$

Usually ships in 3-6 days

0

39

Exmark 103-7829

PANEL-BAGGER, RH

$185.99

$

Usually ships in 3-6 days

0

41

Exmark 114439

RIVET-BLIND

$1.49

$

In Stock, Qty 20+

0

42

Exmark 103-3202

CAP

$1.49

$

In Stock, only 1 left!

0

43

Exmark 126-4345

Decal-Patent Ttco.Com

$1.99

$

In Stock, Qty 9

0

44

Exmark 109-8506-03

HANDLE-QD7

$136.99

$

Usually ships in 3-6 days

0

45

Exmark 322-12

SCREW-HH

$2.49

$

In Stock, Qty 14

0

46

Exmark 3230-3

Bolt-Carriage 5/16-18 X 1 1/4

$1.49

$

In Stock, Qty 20+

0

47

Exmark 1-323385

KNOB-3 PRONG

$5.49

$

In Stock, Qty 20+

0

48

Exmark 103-6270

Asm, Door

$

$

Currently unavailable

49

Exmark 3230-22

SCREW-CARR
(Superseded to 3230-22)

$2.49

$

In Stock, only 2 left!

0

50

Exmark 103-4835

ANCHOR-SPRING

$30.99

$

Usually ships in 3-6 days

0

51

Exmark 103-4822

LINK-DOOR

$44.99

$

Usually ships in 3-6 days

0

52

Exmark 3219-5

NUT-HEX

$1.49

$

In Stock, only 1 left!

0

53

Exmark 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

54

Exmark 1-806003

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

55

Exmark 103-4813

SPRING

$6.49

$

Usually ships in 3-6 days

0

56

Exmark 103-4437-03

GUARD-LH

$46.99

$

Usually ships in 3-6 days

0

57

Exmark 103-4819-03

GUARD-RH

$46.99

$

Usually ships in 3-6 days

0

58

Exmark 103-6232

ASM, HOOD

$470.99

$

Usually ships in 3-6 days

0

60

Exmark 3256-61

WASHER-FLAT

$2.99

$

In Stock, only 2 left!

0

61

Exmark 3250-27

SCREW-PPH

$0.99

$

In Stock, Qty 9

0

62

Exmark 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

67

Exmark 103-7115

HANDLE-GRIP

$7.99

$

Usually ships in 3-6 days

0

68

Exmark 1-513658

BUMPER

$6.49

$

In Stock, Qty 11

0

69

Exmark 1-653561

SEAL-CHUTE

$19.99

$

In Stock, only 4 left!

0

70

Exmark 1-653598-03

CLAMP-SEAL

$80.99

$

Usually ships in 3-6 days

0

71

Exmark 133-8061

DECAL-WARNING

$1.49

$

Usually ships in 3-6 days

0
