LZUVQD7 - Exmark Ultra Vac QDS Bagger for Lazer Z Mower (SN: 400000000 - 402082299) (2017) Hopper Assembly No. 109-5909 Parts Diagram

Ultra Vac QDS Bagger for Lazer Z Mower

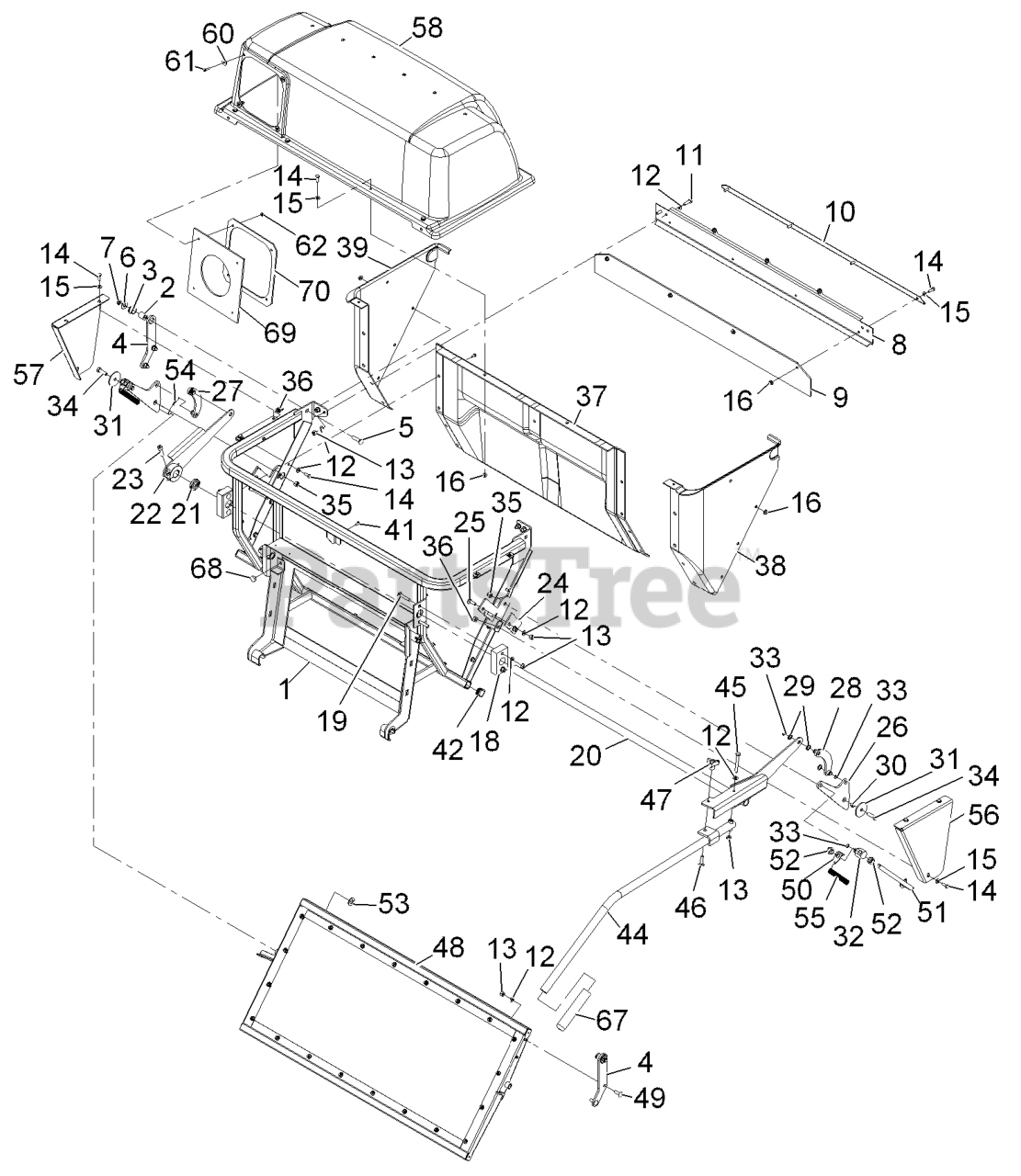

Hopper Assembly No. 109-5909 Parts Diagram

  • Title

1

Exmark 109-8701-03

Frame ASM

$1358.99

$

Usually ships in 3-6 days

0

2

Exmark 103-6294

Pin-Pivot, Hinge

$26.99

$

Usually ships in 3-6 days

0

3

Exmark 103-6295

Bearing

$15.99

$

Usually ships in 3-6 days

0

4

Exmark 103-4820-03

Plate, Hinge

$60.99

$

Usually ships in 3-6 days

0

5

Exmark 3231-4

Bolt-Carriage 3/8-16 X 1 1/2

$3.99

$

In Stock, Qty 20+

0

6

Exmark 3256-4

Washer-3/8 Std

$1.99

$

In Stock, Qty 20+

0

7

Exmark 3296-59

Nut-Nyloc 3/8-16 Thin
(Superseded to 121-4600)

$1.49

$

In Stock, Qty 20+

0

8

Exmark 103-4412-03

Plate-Rear

$64.99

$

Usually ships in 3-6 days

0

9

Exmark 103-4832

Seal-Door

$23.99

$

Usually ships in 3-6 days

0

10

Exmark 103-4834-03

Strap-Hold Down

$29.99

$

Usually ships in 3-6 days

0

11

Exmark 322-5

Screw-HH 5/16-18 X 1

$0.99

$

In Stock, Qty 20+

0

12

Exmark 3256-23

Washer-5/16 SAE

$2.49

$

In Stock, Qty 20+

0

13

Exmark 3296-29

Nut-Nyloc 5/16-18

$2.49

$

In Stock, Qty 20+

0

14

Exmark 321-4

Screw-HH 1/4-20 X 3/4

$1.49

$

In Stock, Qty 20+

0

15

Exmark 3256-22

Washer-1/4 SAE

$0.99

$

In Stock, Qty 20+

0

16

Exmark 32128-33

Nut-Whizlock 1/4-20

$0.99

$

In Stock, Qty 20+

0

18

Exmark 103-4402

Bearing

$45.99

$

Usually ships in 3-6 days

0

19

Exmark 3230-5

Bolt-Carriage 5/16-18 X 1 3/4

$0.99

$

In Stock, Qty 20+

0

20

Exmark 103-5114-03

Bellcrank

$232.99

$

Usually ships in 3-6 days

0

21

Exmark 103-4433

Shaft-Collar

$6.99

$

Usually ships in 3-6 days

0

22

Exmark 103-8835-03

Link
(Superseded to 103-8839)

$160.99

$

Usually ships in 3-6 days

0

23

Exmark 3274-1

Screw-Sh 3/8-16 X 1 1/4

$8.99

$

Usually ships in 3-6 days

0

24

Exmark 103-4408-03

Stop-Linkage

$19.99

$

Usually ships in 3-6 days

0

25

Exmark 3230-2

Bolt-Carriage 5/16-18 X 1

$1.49

$

In Stock, Qty 14

0

26

Exmark 103-4424

Arm-Linkage, Door

$34.99

$

Usually ships in 3-6 days

0

27

Exmark 103-5111

Link-RH

$62.99

$

Usually ships in 3-6 days

0

28

Exmark 103-5112

Link-LH

$62.99

$

Usually ships in 3-6 days

0

29

Exmark 94-8196

Washer-Nylon

$6.99

$

In Stock, only 3 left!

0

30

Exmark 103-4415

Bearing-Linkage, Pivot

$26.99

$

Usually ships in 3-6 days

0

31

Exmark 103-4431

Washer

$5.49

$

Usually ships in 3-6 days

0

32

Exmark 103-4848

Trunnion-Link

$39.99

$

Usually ships in 3-6 days

0

33

Exmark 32151-61

Ring-Retaining

$2.99

$

In Stock, Qty 20+

0

34

Exmark 323-7

Screw-HH 3/8-16 X 1 1/4

$2.99

$

In Stock, Qty 20+

0

35

Exmark 3296-39

Nut-Nyloc 3/8-16

$2.99

$

In Stock, Qty 20+

0

36

Exmark 107069

Nut-Retainer-Panel 1/4-20

$2.99

$

In Stock, Qty 20+

0

37

Exmark 103-5102

Panel-Bagger

$241.99

$

Usually ships in 3-6 days

0

38

Exmark 103-7828

Panel-Bagger, LH

$185.99

$

Usually ships in 3-6 days

0

39

Exmark 103-7829

Panel-Bagger, RH

$185.99

$

Usually ships in 3-6 days

0

41

Exmark 114439

Rivet

$1.49

$

In Stock, Qty 20+

0

42

Exmark 103-3202

Cap

$1.49

$

In Stock, only 1 left!

0

44

Exmark 109-8506-03

Handle-Qd7

$136.99

$

Usually ships in 3-6 days

0

45

Exmark 322-12

Screw-HH 5/16-18 X 2 1/2

$2.49

$

In Stock, Qty 10

0

46

Exmark 3230-3

Bolt-Carriage 5/16-18 X 1 1/4

$1.49

$

In Stock, Qty 20+

0

47

Exmark 1-323385

Knob-3 Prong

$5.49

$

In Stock, Qty 20+

0

48

Exmark 103-6270

Asm, Door

$

$

Currently unavailable

49

Exmark 3230-22

Bolt-Carriage 5/16-18 X 1 Sp
(Superseded to 3230-22)

$2.49

$

In Stock, Qty 20+

0

50

Exmark 103-4835

Anchor-Spring

$30.99

$

Usually ships in 3-6 days

0

51

Exmark 103-4822

Link-Door

$44.99

$

Usually ships in 3-6 days

0

52

Exmark 3219-5

Nut-Hex 1/2-20

$1.49

$

In Stock, only 1 left!

0

53

Exmark 3256-26

Washer-1/2 SAE

$0.99

$

In Stock, Qty 20+

0

54

Exmark 1-806003

Hairpin-Cotter

$1.49

$

In Stock, Qty 20+

0

55

Exmark 103-4813

Spring

$6.49

$

Usually ships in 3-6 days

0

56

Exmark 103-4437-03

Guard-LH

$46.99

$

Usually ships in 3-6 days

0

57

Exmark 103-4819-03

Guard-RH

$46.99

$

Usually ships in 3-6 days

0

58

Exmark 103-6232

Asm, Hood

$522.99

$

Usually ships in 3-6 days

0

60

Exmark 3256-61

Washer

$2.99

$

In Stock, only 2 left!

0

61

Exmark 3250-27

Screw-PPH #10-24 X 7/8

$0.99

$

In Stock, Qty 9

0

62

Exmark 3296-2

Nut-Nyloc #10-24

$2.49

$

In Stock, Qty 20+

0

67

Exmark 103-7115

Handle-Grip

$7.99

$

Usually ships in 3-6 days

0

68

Exmark 1-513658

Bumper

$6.49

$

In Stock, Qty 9

0

69

Exmark 1-653561

Seal-Chute

$19.99

$

In Stock, Qty 20+

0

70

Exmark 1-653598-03

Clamp-Seal

$80.99

$

Usually ships in 3-6 days

0
