Exmark LZUVQD7 - Exmark Ultra Vac QDS Bagger for Lazer Z Mower (SN: 313000000 - 313999999) (2013) Blower Assembly No. 109-9832 Parts Lookup with Diagrams

1

Exmark 1-303334

WASHER-SPRING

$2.99

$

In Stock, only 4 left!

2

Exmark 1-353054

LATCH-CATCHER, GRASS

$7.99

$

In Stock, only 3 left!

3

Exmark 1-513013

HOUSING-FLANGE

$5.49

$

Usually ships in 3-6 days

4

Exmark 1-513208

WASHER-SPRING

$8.99

$

In Stock, only 2 left!

5

Exmark 1-513435

WASHER-SPRING

$5.49

$

In Stock, Qty 13

6

Exmark 116-4817

ASM-UPPER HOUSING SMALL

$547.99

$

Usually ships in 3-6 days

6:2

Exmark 116-4789

DECAL-ULTRA VAC S-SERIES

$27.99

$

Usually ships in 3-6 days

6:3

Exmark 98-5954

DECAL-COVER, MISSING

$9.49

$

In Stock, Qty 7

6:4

Exmark 103-6604

DECAL,WEIGHT

$26.99

$

Usually ships in 3-6 days

7

Exmark 1-653322

IDLER-INSIDE

$64.99

$

In Stock, only 2 left!

8

Exmark 1-653331

SPRING-IDLER

$12.99

$

In Stock, only 3 left!

9

Exmark 1-653346

BEARING

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade anti-seize). See operator s manual for locations.

$71.99

$

In Stock, Qty 20+

10

Exmark 1-653365

SPACER

$27.99

$

Usually ships in 3-6 days

11

Exmark 1-653366

HUB

$25.99

$

In Stock, only 1 left!

14

Exmark 1-653596-03

PLATE-BACKING, BLOWER

$50.99

$

In Stock, only 1 left!

15

Asm, Idler

Note: Not serviced separately

$

Not available 

16

Exmark 1-803075

SCREW-HEAD, TRUSS

$1.49

$

In Stock, Qty 5

17

Exmark 1-803076

SCREW

$1.49

$

Usually ships in 3-6 days

19

Exmark 103-0126

BUSHING, LOCATOR

$6.99

$

In Stock, Qty 11

20

Exmark 103-0130

BUSHING-PIVOT, IDLER

$18.99

$

In Stock, Qty 6

21

Exmark 103-1047

SHEAVE-BLOWER

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade anti-seize). See operator s manual for locations.

$75.99

$

In Stock, Qty 6

23

Exmark 103-3585

ASM, BEARING COVER

$119.99

$

In Stock, only 1 left!

23:2

Exmark 103-3508

DECAL-WARNING

$23.99

$

Usually ships in 3-6 days

24

Exmark 103-3815

IMPELLER

$310.99

$

In Stock, Qty 5

25

Exmark 103-4080

LATCH-RUBBER

Note: Kit No. 103-4188 - Contains catch, rubber latch, and mounting hardware

$31.99

$

In Stock, Qty 5

28

Exmark 109-1985

ASM,BLOWER CHUTE LHP

$455.99

$

Usually ships in 3-6 days

28:2

Exmark 103-4752-03

PLATE-REINFORCEMENT

$13.99

$

Usually ships in 3-6 days

28:3

Exmark 114439

RIVET-BLIND

$1.49

$

In Stock, Qty 20+

29

Exmark 109-1122-01

BUMPER

$119.99

$

In Stock, only 1 left!

30

Exmark 109-9362-03

WELD, FRAME SM BLOWER

$708.99

$

Usually ships in 3-6 days

30:3

Exmark 1-806323

PIN-ROLL

$1.49

$

In Stock, only 3 left!

30:4

Exmark 1-353050

SHAFT-CATCHER, GRASS

$17.99

$

In Stock, only 2 left!

31

Exmark 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

32

Exmark 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

33

Exmark 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 12

34

Exmark 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

35

Exmark 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

36

Exmark 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 12

37

Exmark 3219-6

NUT-HEX

$3.99

$

In Stock, Qty 20+

38

Exmark 3220-5

NUT-JAM

Note: Use Pro-Lock retaining type, Part no. 1-840023 (.5cc tube) on threads.

$1.99

$

In Stock, Qty 20+

39

Exmark 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 20+

40

Exmark 3229-11

SCREW-CARR

$1.49

$

In Stock, Qty 20+

41

Exmark 3230-18

SCREW-CARR

$5.49

$

In Stock, Qty 5

42

Exmark 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

43

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 14

44

Exmark 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

45

Exmark 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

46

Exmark 3257-32

KEY-WOODRUFF

$2.99

$

In Stock, Qty 11

47

Exmark 3274-107

SCREW-HSBH

$5.49

$

In Stock, only 4 left!

48

Exmark 3274-18

SCREW-HSH

$9.49

$

In Stock, Qty 7

49

Exmark 3290-148

NUT-HF

$0.99

$

In Stock, Qty 11

50

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

51

Exmark 3290-500

SCREW-PPH

$1.49

$

In Stock, Qty 20+

52

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

53

Exmark 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 8

54

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

55

Exmark 32128-33

NUT-HF

$0.99

$

In Stock, Qty 6

56

Exmark 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

57

Exmark 3296-28

NUT-LOCK, NI

$1.99

$

In Stock, only 4 left!

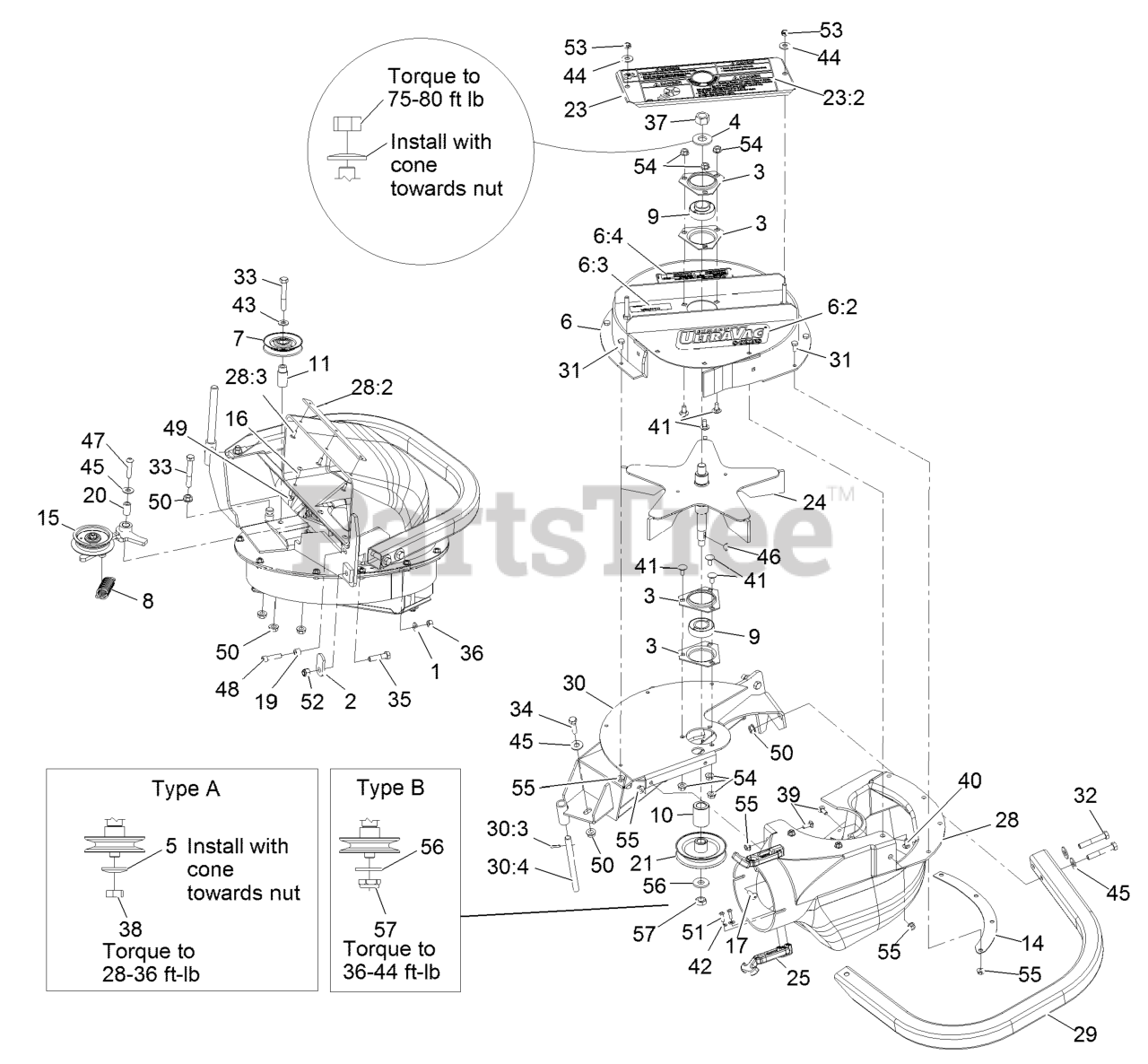

LZUVQD7 - Exmark Ultra Vac QDS Bagger for Lazer Z Mower (SN: 313000000 - 313999999) (2013) Blower Assembly No. 109-9832 Parts Diagram

Blower Assembly No. 109-9832 Parts Diagram
