LZUVQD11 - Exmark Ultra Vac QDS Bagger for Lazer Z Mower (SN: 316000000 - 399999999) (2016) LZUVQD11 Assembly Parts Diagram

Ultra Vac QDS Bagger for Lazer Z Mower

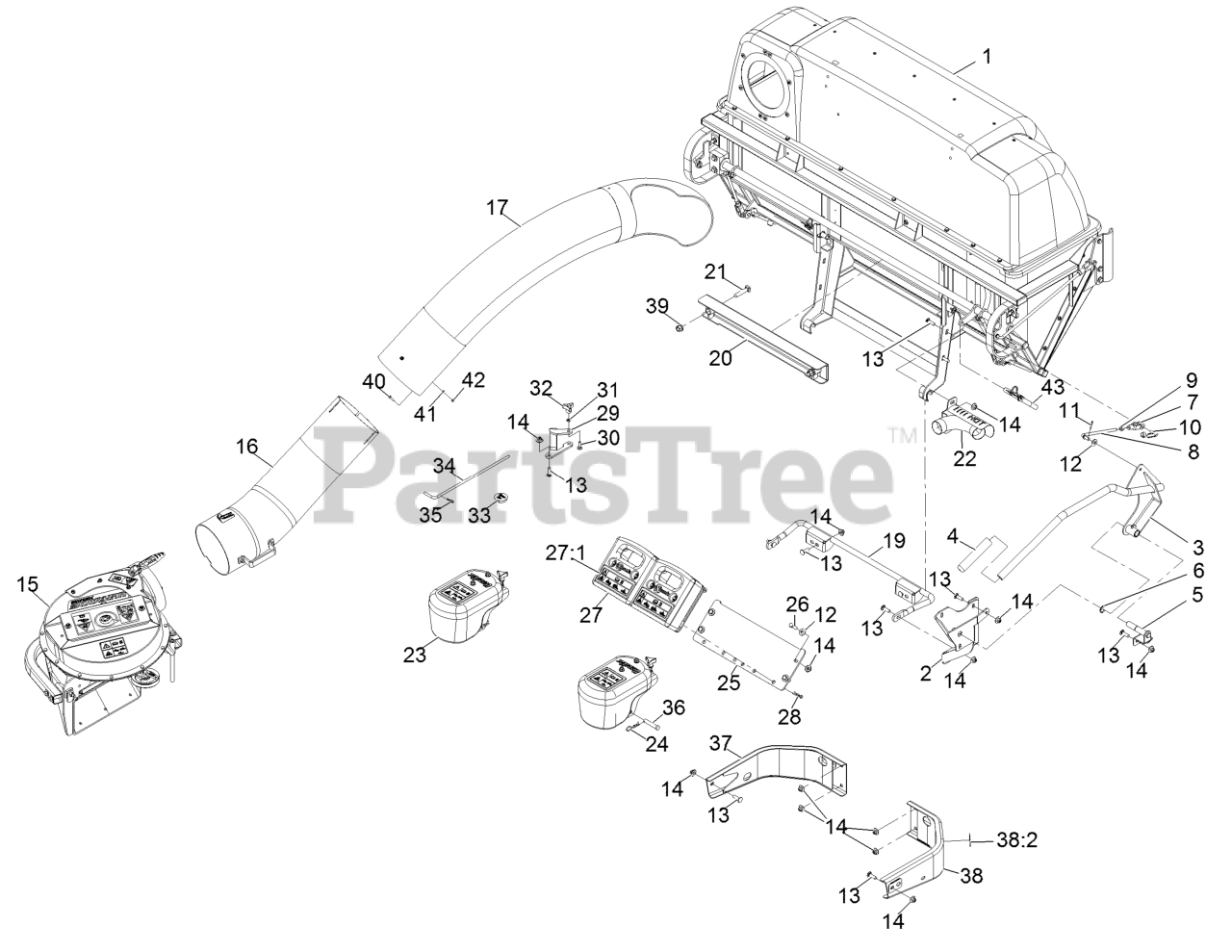

LZUVQD11 Assembly Parts Diagram

  • Title

1

ASM,Hopper Lg Qds

Note: Not serviced separately

$

$

Not available

2

Exmark 109-8712-03

MOUNT-PIVOT

$255.99

$

Usually ships in 3-6 days

0

3

Exmark 109-9369-03

WLD,DUMP HANDLE

$465.99

$

Usually ships in 3-6 days

0

4

Exmark 103-7115

HANDLE-GRIP

$7.99

$

Usually ships in 3-6 days

0

5

Exmark 109-6869

PIN-HANDLE

$77.99

$

Usually ships in 3-6 days

0

6

Exmark 32151-48

E-RING

$1.99

$

In Stock, Qty 14

0

7

Exmark 1-633131

YOKE-LINKAGE, BRAKE

$15.99

$

In Stock, Qty 12

0

8

Exmark 103-2413

LINK-HANDLE

$13.99

$

In Stock, only 3 left!

0

9

Exmark 3219-3

NUT-HEX

$1.99

$

In Stock, Qty 20+

0

10

Exmark 103-2399

PIN-SPRING, CLEVIS

$6.49

$

In Stock, Qty 6

0

11

Exmark 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 11

0

12

Exmark 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

13

Exmark 3231-28

Bolt-Carriage 3/8-16 X 1 1/4

$4.49

$

In Stock, Qty 20+

0

14

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

15

Exmark 109-9836

ASM, BLOWER LARGE - SVC O

$2147.99

$

Usually ships in 3-6 days

0

16

Exmark 109-1973

LOWER TUBE ASM

$322.99

$

Usually ships in 3-6 days

0

17

Exmark 109-1968

TUBE-UPPER

$354.99

$

Usually ships in 3-6 days

0

19

Exmark 109-9248

MOUNT-BAGGER, LOWER

$210.99

$

Usually ships in 3-6 days

0

20

Exmark 116-0473-03

MOUNT-BAGGER, UPPER

$245.99

$

Usually ships in 3-6 days

0

21

Exmark 3233-34

SCREW-CARR

$9.49

$

In Stock, only 3 left!

0

22

Exmark 116-2804

EXHAUST DIVERTER ASM

$186.99

$

Usually ships in 3-6 days

0

23

Exmark 109-8461

ASM,CASTER WEIGHT

$729.99

$

Usually ships in 3-6 days

0

24

Exmark 1-806005

PIN-COTTER

$2.99

$

In Stock, Qty 20+

0

25

Exmark 103-6368-01

PLATE,WEIGHT ASM MOUNT

$85.99

$

In Stock, only 1 left!

0

26

Exmark 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

27

Exmark 103-6363

ASM,CAST WEIGHT

$382.99

$

Usually ships in 3-6 days

0

27:1

Exmark 126-4661

DECAL-WARNING WEIGHT

$6.49

$

In Stock, only 2 left!

0

28

Exmark 9335124

PIN-HAIR

$2.99

$

In Stock, Qty 5

0

29

Exmark 109-9463-03

BRACKET,BELT COVER

$49.99

$

Usually ships in 3-6 days

0

30

Exmark 3230-2

BOLT-CARR

$1.49

$

In Stock, Qty 14

0

31

Exmark 109-5667

RING-RETAINING, BOLT

$6.49

$

In Stock, only 1 left!

0

32

Exmark 1-323385

KNOB-3 PRONG

$5.49

$

In Stock, Qty 20+

0

33

Exmark 103-1279

PLUG, BLACK NYLON 1.75

$12.99

$

Usually ships in 3-6 days

0

34

Exmark 109-3458

PIN,CHUTE PIVOT

$17.99

$

Usually ships in 3-6 days

0

35

Exmark 1-806003

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

36

Exmark 92-2743

PIN-CLEVIS

$23.99

$

Usually ships in 3-6 days

0

37

Exmark 116-0057-03

BUMPER-RH

$220.99

$

In Stock, only 1 left!

0

38

Exmark 116-0180

LH BUMPER ASM

$148.99

$

Usually ships in 3-6 days

0

38:2

Exmark 106-5517

DECAL-WARNING

$5.49

$

In Stock, only 3 left!

0

39

Exmark 99-5107

Nut-Lock 1/2-13

$1.99

$

In Stock, Qty 20+

0

40

Exmark 32105-13

SCREW-HWH

$1.99

$

In Stock, Qty 5

0

41

Exmark 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

42

Exmark 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

43

Exmark 116-0458

PIN-MOUNT, BAGGER

$16.99

$

In Stock, only 2 left!

0
