LZUVQD11 - Exmark Ultra Vac QDS Bagger for Lazer Z Mower (SN: 314000000 - 314999999) (2014) Hopper Assembly No. 109-6142 Parts Diagram

Ultra Vac QDS Bagger for Lazer Z Mower

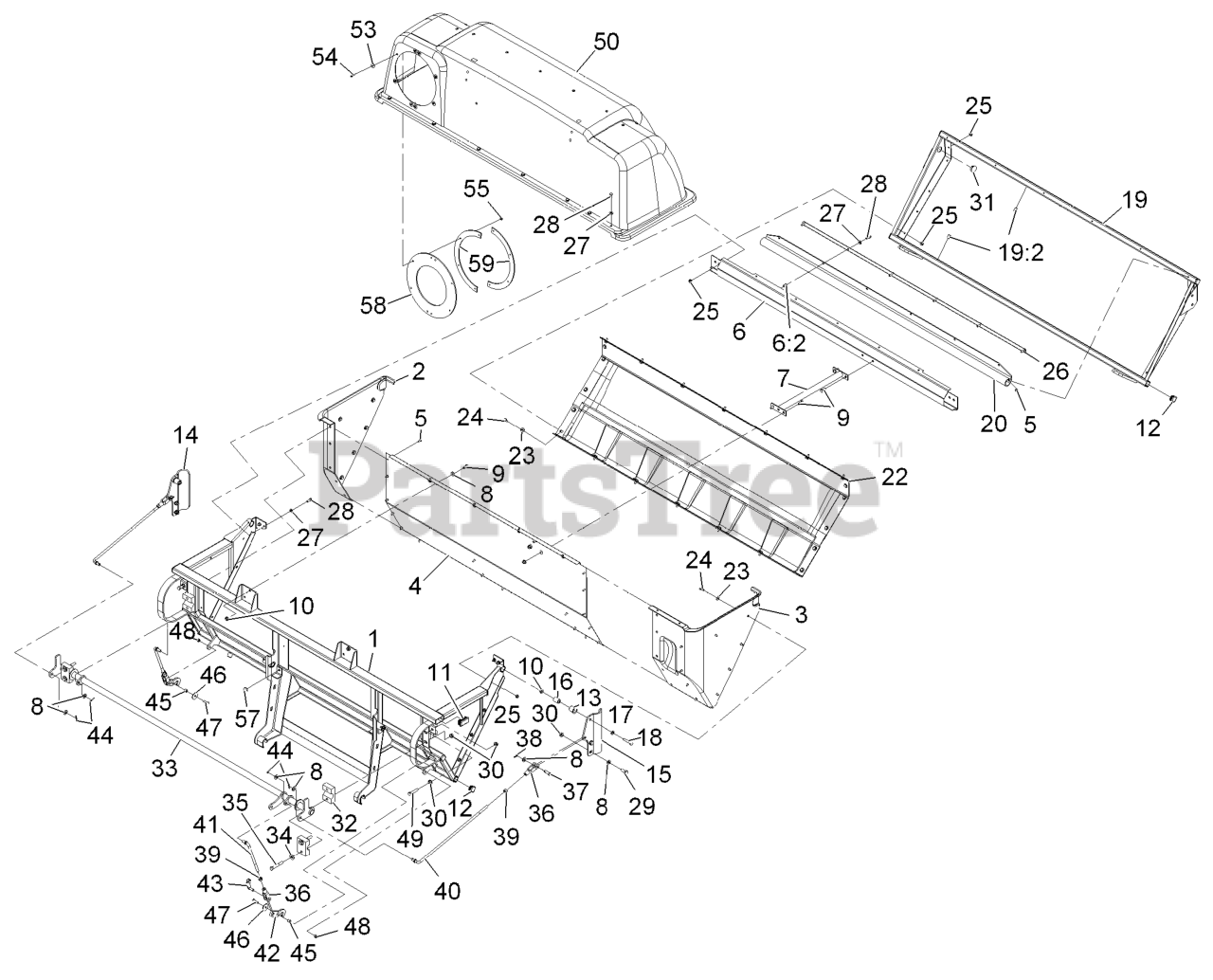

Hopper Assembly No. 109-6142 Parts Diagram

  • Title

1

Exmark 109-8709-03

FRAME

$2452.99

$

Usually ships in 3-6 days

0

2

Exmark 103-7827

PANEL-BAGGER, RH

$181.99

$

Usually ships in 3-6 days

0

3

Exmark 103-7826

PANEL-BAGGER, LH

$181.99

$

Usually ships in 3-6 days

0

4

Exmark 103-2404-03

SHEET-WALL

$178.99

$

Usually ships in 3-6 days

0

5

Exmark 114439

RIVET-BLIND

$1.49

$

In Stock, Qty 20+

0

6

Exmark 103-2710

REAR CROSSMEMBER ASM

$181.99

$

Usually ships in 3-6 days

0

6:2

Exmark 32148-6

NUT-CLINCH

$2.49

$

Usually ships in 3-6 days

0

7

Exmark 103-2414-03

SUPPORT

$56.99

$

Usually ships in 3-6 days

0

8

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

9

Exmark 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

10

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

11

Exmark 103-3201

CAP

$3.49

$

Usually ships in 3-6 days

0

12

Exmark 103-3202

CAP

$1.49

$

In Stock, only 1 left!

0

13

Exmark 103-2377

BUSHING

$8.99

$

In Stock, only 1 left!

0

14

Exmark 103-3331-03

ARM-HINGE, RH

$60.99

$

Usually ships in 3-6 days

0

15

Exmark 103-3332-03

ARM-HINGE, LH

$60.99

$

Usually ships in 3-6 days

0

16

Exmark 103-2361

PIN-PIVOT, HINGE

$19.99

$

Usually ships in 3-6 days

0

17

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

18

Exmark 322-9

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

19

Exmark 103-2737

DOOR ASM

$722.99

$

Usually ships in 3-6 days

0

19:2

Exmark 32148-6

NUT-CLINCH

$2.49

$

Usually ships in 3-6 days

0

20

Exmark 103-2360

SEAL-DOOR HINGE

$132.99

$

Usually ships in 3-6 days

0

22

Exmark 103-2383

BAG AND BOTTOM PANEL ASM

$359.99

$

Usually ships in 3-6 days

0

23

Exmark 3256-2

WASHER-FLAT
(Superseded to 3256-2)

$0.99

$

In Stock, Qty 20+

0

24

Exmark 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

25

Exmark 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

26

Exmark 103-3010-03

STRAP-HOLD DOWN

$67.99

$

Usually ships in 3-6 days

0

27

Exmark 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

28

Exmark 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

29

Exmark 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

30

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

31

Exmark 103-8018

PLUG-DOME

$5.49

$

Usually ships in 3-6 days

0

32

Exmark 103-2409

103-8057
(Superseded to 103-8057)

$63.99

$

Usually ships in 3-6 days

0

33

Exmark 103-2412-03

LINK-INTERMEDIATE

$283.99

$

Usually ships in 3-6 days

0

34

Exmark 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

35

Exmark 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

36

Exmark 1-633131

YOKE-LINKAGE, BRAKE

$15.99

$

In Stock, Qty 12

0

37

Exmark 1-808285

PIN-CLEVIS

$3.49

$

In Stock, Qty 15

0

38

Exmark 1-806003

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

39

Exmark 3219-3

NUT-HEX

$1.99

$

In Stock, Qty 20+

0

40

Exmark 103-2365

LINK-HINGE

$15.99

$

In Stock, only 2 left!

0

41

Exmark 103-2413

LINK-HANDLE

$13.99

$

In Stock, only 3 left!

0

42

Exmark 103-3191-03

LATCH

$22.99

$

Usually ships in 3-6 days

0

43

Exmark 103-2399

PIN-SPRING, CLEVIS

$6.49

$

In Stock, Qty 6

0

44

Exmark 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 11

0

45

Exmark 1-633545

SPACER

$2.99

$

In Stock, Qty 20+

0

46

Exmark 3256-55

WASHER-FLAT

$5.49

$

In Stock, Qty 11

0

47

Exmark 321-6

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

48

Exmark 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

49

Exmark 323-53

SCREW-HH

$3.99

$

Usually ships in 3-6 days

0

50

Exmark 109-7301

ASM,HOOD DUMP

$1145.99

$

Usually ships in 3-6 days

0

53

Exmark 3256-61

WASHER-FLAT

$2.99

$

In Stock, only 2 left!

0

54

Exmark 3250-27

SCREW-PPH

$0.99

$

In Stock, Qty 9

0

55

Exmark 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

57

Exmark 1-513658

BUMPER

$6.49

$

In Stock, Qty 9

0

58

Exmark 103-0439

SEAL-TUBE

$45.99

$

In Stock, only 3 left!

0

59

Exmark 103-0378

CLAMP-SEAL

$33.99

$

In Stock, only 1 left!

0
