Exmark LZUV52 - Exmark Ultra Vac Bagger for Lazer Z Mower (SN: 000850000 - 000919999) (2010) Hood And Bag Assembly - Lazer Z 52" Parts Lookup with Diagrams

1

Exmark 1-654597

ASM, HOOD

Note: Includes items 2,4,7,12,13,18 riveted together and Decal.

$684.99

$

Usually ships in 3-6 days

2

Exmark 1-653397-03

STIFFENER-BAGGER, TOP

$80.99

$

Usually ships in 3-6 days

3

Exmark 103-0825-03

HINGE-RH

Note: (RH)

$104.99

$

Usually ships in 3-6 days

Exmark 103-0826-03

HINGE-LH

Note: (LH)

$104.99

$

Usually ships in 3-6 days

4

Exmark 114967

SCREEN-BAGGER

$37.99

$

In Stock, only 3 left!

5

Exmark 114439

RIVET-BLIND

$1.49

$

In Stock, Qty 20+

6

Exmark 1-803075

SCREW-HEAD, TRUSS

$1.49

$

In Stock, Qty 5

7

Exmark 3256-61

WASHER-FLAT

$2.99

$

In Stock, only 2 left!

8

Exmark 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

9

Exmark 1-653561

SEAL-CHUTE

$19.99

$

In Stock, only 4 left!

10

Exmark 1-653598-03

CLAMP-SEAL

$79.99

$

Usually ships in 3-6 days

11

Exmark 103-1346

SEAL-HOOD

$88.99

$

Usually ships in 3-6 days

12

Exmark 1-653400-03

SUPPORT-SCREEN

$85.99

$

Usually ships in 3-6 days

13

Exmark 1-653519

ANCHOR-LATCH

$86.99

$

Usually ships in 3-6 days

14

Exmark 1-653036

WASHER

$5.49

$

In Stock, only 2 left!

15

Exmark 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

16

Exmark 32128-33

NUT-HF

$0.99

$

In Stock, Qty 6

17

Exmark 1-653403

LATCH

$78.99

$

In Stock, Qty 6

18

Exmark 1-653535

REINFORCEMENT-LATCH

$47.99

$

Usually ships in 3-6 days

19

Exmark 321-11

SCREW-HH

$0.99

$

In Stock, Qty 20+

20

Exmark 3274-55

SCREW-HSBH

$5.49

$

In Stock, Qty 13

21

Exmark 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

22

Exmark 321-6

SCREW-HH

$0.99

$

In Stock, Qty 20+

23

Exmark 103-4741-03

UPRIGHT-BAGGER

$678.99

$

Usually ships in 3-6 days

24

Exmark 3256-2

WASHER-FLAT

(Superseded to 3256-2) 

$0.99

$

In Stock, Qty 20+

25

Exmark 1-633545

SPACER

$2.99

$

In Stock, Qty 15

26

Exmark 1-653544

SPRING-EXTENSION

$7.99

$

In Stock, only 2 left!

27

Exmark 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

28

Exmark 1-653528-03

PLATE-BACKING

$66.99

$

Usually ships in 3-6 days

29

Exmark 1-653529-03

FRAME-BAG

$117.99

$

Usually ships in 3-6 days

30

Exmark 114973-03

HANGER-BAG

$25.99

$

In Stock, only 2 left!

31

Exmark 114974-03

CLAMP

$14.99

$

Usually ships in 3-6 days

32

Exmark 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

33

Exmark 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

34

Exmark 116-0757

BAG

$100.99

$

In Stock, Qty 13

35

Exmark 1-653566

HANDLE-BAG

$12.99

$

In Stock, only 2 left!

36

Exmark 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 20+

37

Exmark 1-653036

WASHER

$5.49

$

In Stock, only 2 left!

38

Exmark 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

39

Exmark 1-653404

CATCH

$36.99

$

In Stock, Qty 10

40

Exmark 3290-500

SCREW-PPH

$1.49

$

In Stock, Qty 20+

41

Exmark 3290-148

NUT-HF

$0.99

$

In Stock, Qty 11

42

Exmark 103-5124-03

SUPPORT-BAG

$161.99

$

Usually ships in 3-6 days

43

Exmark 32128-33

NUT-HF

$0.99

$

In Stock, Qty 6

44

Exmark 1-523420

109-2365

$14.99

$

Usually ships in 3-6 days

45

Exmark 116-0754

BAG AND FRAME ASM

$185.99

$

Usually ships in 3-6 days

46

Exmark 32153-1

NUT-LOCK, SIDE

$3.99

$

In Stock, only 1 left!

47

Exmark 71-9310

SPACER

Note: (Type A) Used on units with ROPS installed only.

$2.99

$

Usually ships in 3-6 days

48

Exmark 283-69

PIN-CLEVIS

$10.99

$

In Stock, only 3 left!

49

Exmark 1-806005

PIN-COTTER

$2.99

$

In Stock, Qty 20+

50

Exmark 3250-27

SCREW-PPH

$0.99

$

In Stock, Qty 9

51

Exmark 323-7

SCREW-HH

Note: (Type A)

$2.99

$

In Stock, Qty 20+

Exmark 323-7

SCREW-HH

Note: (Type B)

$2.99

$

In Stock, Qty 20+

52

Exmark 103-0429-03

MOUNT-BAGGER

$509.99

$

Usually ships in 3-6 days

53

Exmark 103-5612-03

BRACKET-FRAME, LH

Note: (LH) (Type A)

$96.99

$

Usually ships in 3-6 days

54

Exmark 103-0399-03

BRACKET-FRAME, RH

Note: (RH) (Type B)

$119.99

$

Usually ships in 3-6 days

55

Exmark 3290-357

NUT-HHF, WHIZ

Note: (Type A)

$0.99

$

In Stock, Qty 20+

Exmark 3290-357

NUT-HHF, WHIZ

Note: (Type B)

$0.99

$

In Stock, Qty 20+

56

Exmark 98-5975

WASHER-BELLEVILLE

Note: (Type A)

$3.49

$

In Stock, Qty 20+

Exmark 98-5975

WASHER-BELLEVILLE

Note: (Type B)

$3.49

$

In Stock, Qty 20+

Exmark 103-1155-03

SPACER

Note: (Type B)

$8.99

$

Usually ships in 3-6 days

57

Exmark 103-2975-03

PLATE-MOUNT, BAGGER

Note: (Type B)

$58.99

$

Usually ships in 3-6 days

58

Exmark 116-0128

TUBE,EXHAUST DEFLECTOR

$

Not available 

59

Exmark 103-4751-03

PLATE,REINFORCEMENT LARGE

Note: Used only on LAS28KA524 Units S/N 670,000-789,999.

$20.99

$

Usually ships in 3-6 days

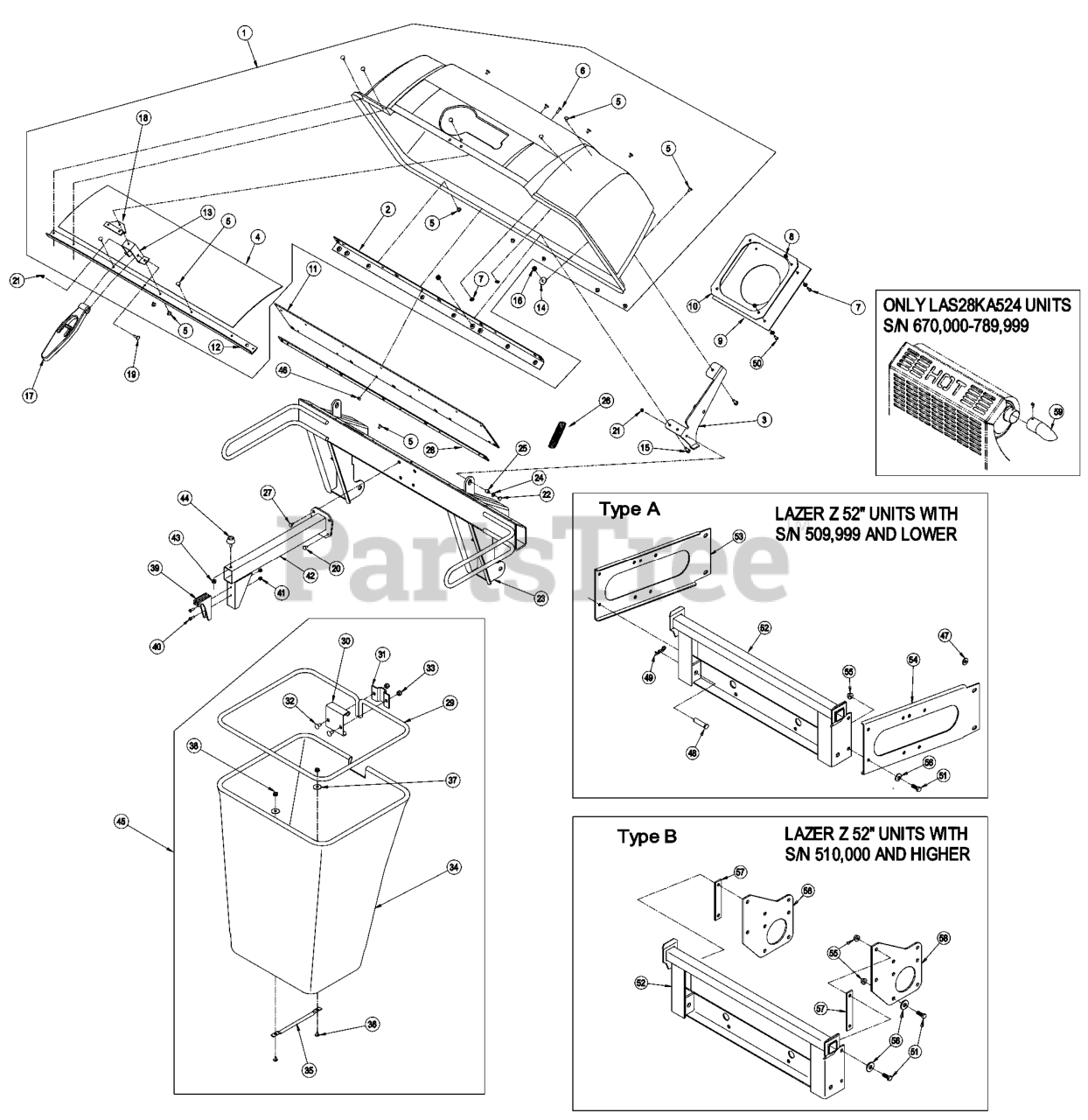

LZUV52 - Exmark Ultra Vac Bagger for Lazer Z Mower (SN: 000850000 - 000919999) (2010) Hood And Bag Assembly - Lazer Z 52" Parts Diagram
