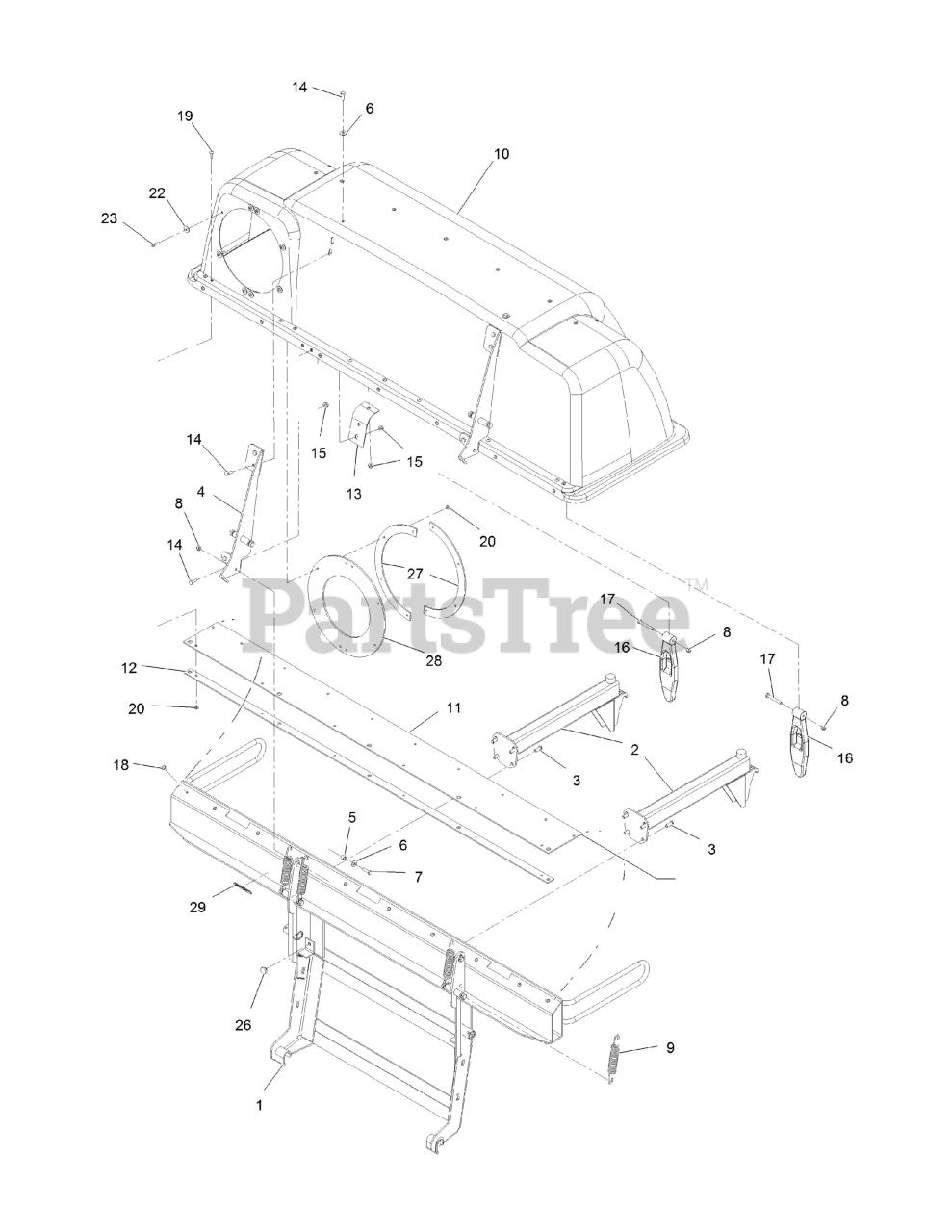

LZUV3B - Exmark Ultra Vac Triple Bagger for Lazer Z Mower (SN: 408644346 - 411294211) (Rev A) (2021) Hood and Frame Assembly Parts Diagram

Ultra Vac Triple Bagger for Lazer Z Mower

Hood and Frame Assembly Parts Diagram

  • Title

1

Exmark 109-8706-03

FRAME-TRIPLE BAGGER

$1025.99

$

Usually ships in 3-6 days

0

2

Exmark 103-5166

BAG SUPPORT ASM

$160.99

$

Usually ships in 3-6 days

0

3

Exmark 3274-55

SCREW-HSBH

$5.49

$

In Stock, Qty 13

0

4

Exmark 109-8351-03

HINGE

$100.99

$

Usually ships in 3-6 days

0

5

Exmark 1-633545

SPACER

$2.99

$

In Stock, Qty 15

0

6

Exmark 3256-2

WASHER-FLAT
(Superseded to 3256-2)

$0.99

$

In Stock, Qty 20+

0

7

Exmark 321-6

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

8

Exmark 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

9

Exmark 1-653544

SPRING-EXTENSION

$7.99

$

In Stock, only 2 left!

0

10

Exmark 103-0437

ASM, HOOD

$1107.99

$

Usually ships in 3-6 days

0

11

Exmark 103-0451

SEAL-HINGE

$273.99

$

Usually ships in 3-6 days

0

12

Exmark 103-0452-03

PLATE-BACKING

$39.99

$

Usually ships in 3-6 days

0

13

Exmark 103-0391

REINFORCEMENT-HOOD, BAGGE

$12.99

$

Usually ships in 3-6 days

0

14

Exmark 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

15

Exmark 32128-33

NUT-HF

$0.99

$

In Stock, Qty 6

0

16

Exmark 1-653403

LATCH

$78.99

$

In Stock, Qty 6

0

17

Exmark 321-11

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

18

Exmark 114439

RIVET-BLIND

$1.49

$

In Stock, Qty 20+

0

19

Exmark 1-803075

SCREW-HEAD, TRUSS

$1.49

$

In Stock, Qty 5

0

20

Exmark 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

22

Exmark 3256-61

WASHER-FLAT

$2.99

$

In Stock, only 2 left!

0

23

Exmark 3250-27

SCREW-PPH

$0.99

$

In Stock, Qty 9

0

26

Exmark 1-513658

BUMPER

$6.49

$

In Stock, Qty 11

0

27

Exmark 103-0378

CLAMP-SEAL

$33.99

$

In Stock, only 1 left!

0

28

Exmark 103-0439

SEAL-TUBE

$49.99

$

In Stock, only 2 left!

0

29

Exmark 133-8061

DECAL-WARNING

$1.49

$

Usually ships in 3-6 days

0
