LZUV3B - Exmark Ultra Vac Triple Bagger for Lazer Z Mower (SN: 400000000 - 402082299) (2017) Hood and Frame Assembly No. 109-6140 Parts Diagram

Ultra Vac Triple Bagger for Lazer Z Mower

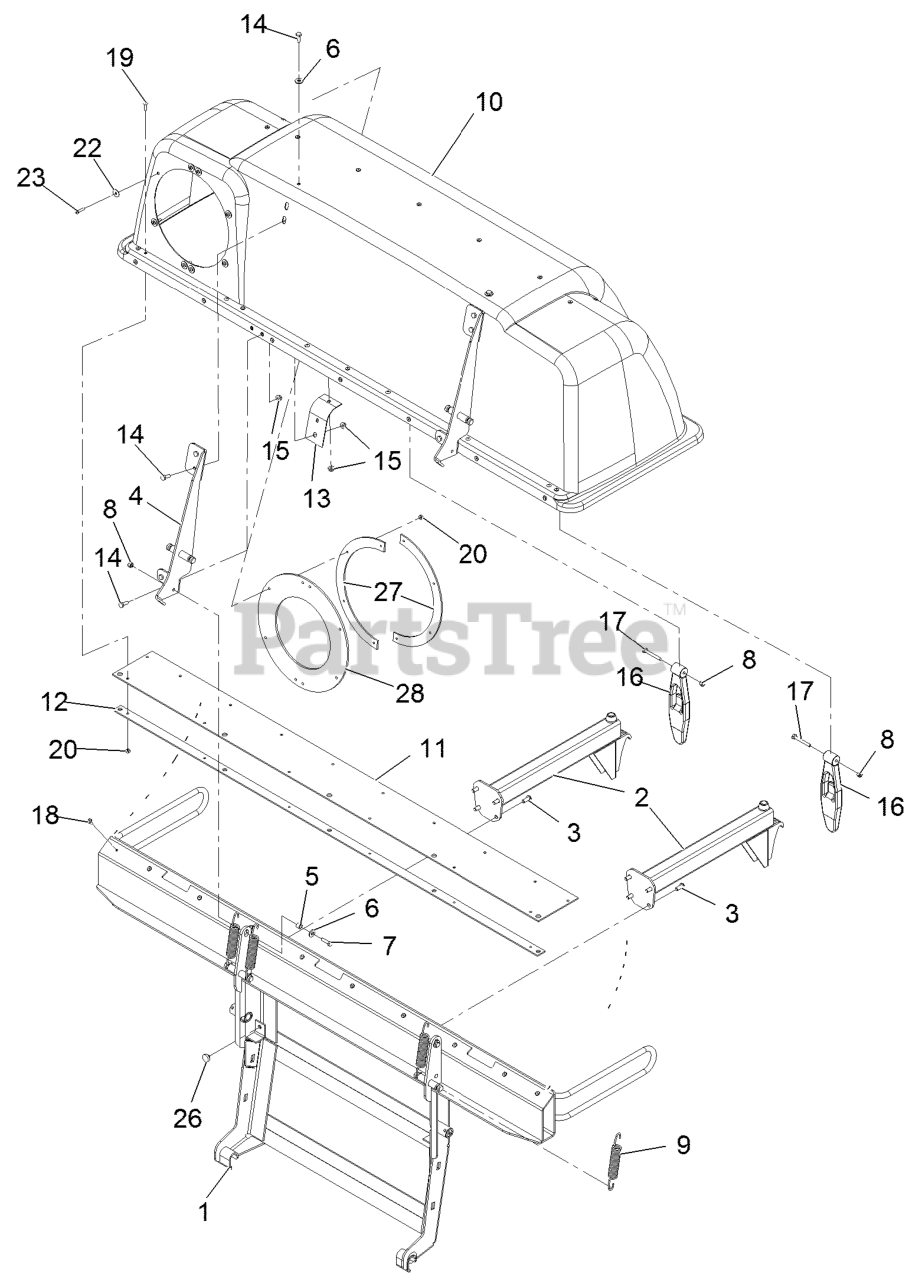

Hood and Frame Assembly No. 109-6140 Parts Diagram

  • Title

1

Exmark 109-8706-03

Frame-Triple Bagger

$1139.99

$

Usually ships in 3-6 days

0

2

Exmark 103-5166

Bag Support ASM

$173.99

$

Usually ships in 3-6 days

0

3

Exmark 3274-55

Screw-Button Head 5/16-18 X 3/4

$5.49

$

In Stock, Qty 13

0

4

Exmark 109-8351-03

Hinge

$101.99

$

Usually ships in 3-6 days

0

5

Exmark 1-633545

Spacer

$2.99

$

In Stock, Qty 20+

0

6

Exmark 3256-2

Washer-1/4 Std
(Superseded to 3256-2)

$0.99

$

In Stock, Qty 20+

0

7

Exmark 321-6

Screw-HH 1/4-20 X 1

$0.99

$

In Stock, Qty 20+

0

8

Exmark 3296-42

Nut-Nyloc 1/4-20

$0.99

$

In Stock, Qty 20+

0

9

Exmark 1-653544

Spring-Extension

$8.99

$

In Stock, only 2 left!

0

10

Exmark 103-0437

Hood Assembly

$1229.99

$

Usually ships in 3-6 days

0

11

Exmark 103-0451

Seal-Hinge

$281.99

$

Usually ships in 3-6 days

0

12

Exmark 103-0452-03

Plate-Backing

$41.99

$

Usually ships in 3-6 days

0

13

Exmark 103-0391

Reinforcement-Hood, Bagger

$12.99

$

Usually ships in 3-6 days

0

14

Exmark 321-4

Screw-HH 1/4-20 X 3/4

$1.49

$

In Stock, Qty 20+

0

15

Exmark 32128-33

Nut-Whizlock 1/4-20

$0.99

$

In Stock, Qty 20+

0

16

Exmark 1-653403

Latch

$80.99

$

In Stock, Qty 6

0

17

Exmark 321-11

Screw-HH 1/4-20 X 2

$0.99

$

In Stock, Qty 20+

0

18

Exmark 114439

Rivet

$1.49

$

In Stock, Qty 20+

0

19

Exmark 1-803075

Screw-Truss Head #10-24 X 3/4

$1.49

$

In Stock, Qty 5

0

20

Exmark 3296-2

Nut-Nyloc #10-24

$2.49

$

In Stock, Qty 20+

0

22

Exmark 3256-61

Washer

$2.99

$

In Stock, only 2 left!

0

23

Exmark 3250-27

Screw-PPH #10-24 X 7/8

$0.99

$

In Stock, Qty 9

0

26

Exmark 1-513658

Bumper

$6.49

$

In Stock, Qty 9

0

27

Exmark 103-0378

Clamp-Seal

$33.99

$

In Stock, only 1 left!

0

28

Exmark 103-0439

Seal-Tube

$45.99

$

In Stock, only 3 left!
