Exmark LZUV3B - Exmark Ultra Vac Triple Bagger for Lazer Z Mower (SN: 400000000 - 402082299) (2017) Blower Assembly No. 109-9836 Parts Lookup with Diagrams

1

Exmark 109-8885-03

Wld,Frame Lg Blower

$677.99

$

In Stock, only 1 left!

1:3

Exmark 1-806323

Rollpin 3/16 X 7/8

$1.49

$

In Stock, only 3 left!

1:4

Exmark 1-353050

Shaft-Catcher, Grass

$17.99

$

In Stock, only 2 left!

2

Exmark 116-4816

ASM-Upper Housing Large

$575.99

$

Usually ships in 3-6 days

2:2

Exmark 126-4662

Decal-Warning, Traction

$5.99

$

In Stock, only 4 left!

2:3

Exmark 126-7210

Decal-Ultravac X-Series

$7.99

$

Usually ships in 3-6 days

2:4

Exmark 112-9028

Decal-Missing, Cover

$22.99

$

Usually ships in 3-6 days

3

Exmark 109-2954

Asm, Blower Chute

$332.99

$

In Stock, Qty 5

3:2

Exmark 103-4751-03

Plate, Reinforcement

$22.99

$

Usually ships in 3-6 days

3:3

Exmark 114439

Rivet

$1.49

$

In Stock, Qty 20+

4

Exmark 103-2898

Latch-Rubber

$34.99

$

In Stock, Qty 6

5

Exmark 103-3093

Plate-Backing

$8.49

$

Usually ships in 3-6 days

6

ASM, Idler

$

Not available 

7

Exmark 1-603044

Bushing

$14.99

$

In Stock, Qty 20+

8

Exmark 1-653331

Spring

$12.99

$

In Stock, only 3 left!

9

Exmark 3256-4

Washer-3/8 Std

$1.99

$

In Stock, Qty 20+

10

Exmark 323-11

Screw-HH 3/8-16 X 2 1/4

$2.49

$

In Stock, Qty 20+

11

Exmark 3290-357

Nut-Whizlock 3/8-16

$0.99

$

In Stock, Qty 20+

12

Exmark 1-513013

Housing-Flange

$5.49

$

In Stock, Qty 20+

13

Exmark 1-653346

Bearing

$71.99

$

In Stock, Qty 20+

14

Exmark 103-0455

Impeller

$441.99

$

Usually ships in 3-6 days

15

Exmark 103-0460

Spacer

$20.99

$

In Stock, only 1 left!

16

Exmark 103-0456

Sheave

$53.99

$

In Stock, only 3 left!

17

Exmark 3230-18

Bolt-Carriage 5/16-18 X 5/8

$5.49

$

In Stock, Qty 20+

18

Exmark 32128-20

Nut-Whizlock 5/16-18

$1.49

$

In Stock, Qty 20+

19

Exmark 1-513208

Washer-Spring Disc 5/8

$8.99

$

In Stock, Qty 9

20

Exmark 3219-6

Nut-Hex 5/8-18

$3.99

$

In Stock, Qty 20+

21

Exmark 3257-32

Key-Woodruff 3/16 X 5/8

$2.99

$

In Stock, Qty 20+

22

Exmark 1-513435

Washer-Spring Disc 1/2

$5.49

$

In Stock, Qty 20+

23

Exmark 3220-5

Nut-Jam 1/2-20

$1.99

$

In Stock, Qty 19

24

Exmark 103-0458-01

Bumper

$123.99

$

Usually ships in 3-6 days

25

Exmark 103-0461-03

Plate-Backing, Blower

$15.99

$

In Stock, only 1 left!

26

Exmark 321-3

Screw-HH 1/4-20 X 5/8

$1.49

$

In Stock, Qty 20+

27

Exmark 32128-33

Nut-Whizlock 1/4-20

$0.99

$

In Stock, Qty 20+

28

Exmark 3229-11

Bolt-Carriage 1/4-20 X 5/8

$1.49

$

In Stock, Qty 20+

29

Exmark 3229-1

Bolt-Carriage 1/4-20 X 3/4

$3.99

$

In Stock, Qty 20+

30

Exmark 1-803075

Screw-Truss Head #10-24 X 3/4

$1.49

$

In Stock, Qty 5

31

Exmark 3290-148

Nut-Whizlock #10-24

$0.99

$

In Stock, Qty 11

32

Exmark 1-803076

Screw-PPH 1/4-20 X 3/4

$1.49

$

Usually ships in 3-6 days

33

Exmark 103-3583

Cover, Bearing W/Decal

$109.99

$

Usually ships in 3-6 days

33

Exmark 103-3584-03

Cover, Bearing With Decal

$39.99

$

Usually ships in 3-6 days

33:2

Exmark 109-5890

Decal, Warning

$77.99

$

Usually ships in 3-6 days

34

Exmark 3256-3

Washer-5/16 Std

$0.99

$

In Stock, Qty 20+

35

Exmark 3296-47

Nut-Nyloc 5/16-18 Thin

$3.99

$

In Stock, Qty 20+

36

Exmark 323-8

Screw-HH 3/8-16 X 1 1/2

$1.49

$

In Stock, Qty 20+

37

Exmark 1-353054

Latch-Catcher, Grass

$7.99

$

In Stock, only 3 left!

38

Exmark 3296-39

Nut-Nyloc 3/8-16

$2.99

$

In Stock, Qty 20+

39

Exmark 1-303334

Washer-Spring Disc 5/16

$2.99

$

In Stock, only 3 left!

40

Exmark 3217-6

Nut-Hex 5/16-18

$1.49

$

In Stock, Qty 12

41

Exmark 103-0126

Bushing

$6.99

$

In Stock, Qty 11

42

Exmark 3274-18

Screw-Sh 5/16-18 X 1 1/4

$9.49

$

In Stock, Qty 7

45

Exmark 321-4

Screw-HH 1/4-20 X 3/4

$1.49

$

In Stock, Qty 20+

46

Exmark 3296-42

Nut-Nyloc 1/4-20

$0.99

$

In Stock, Qty 20+

48

Exmark 126-4659

Decal-Warning

$5.99

$

Usually ships in 3-6 days

52

Exmark 126-4853

Decal-Warning

$7.49

$

Usually ships in 3-6 days

53

Exmark 1-523157

Washer

$1.49

$

In Stock, Qty 20+

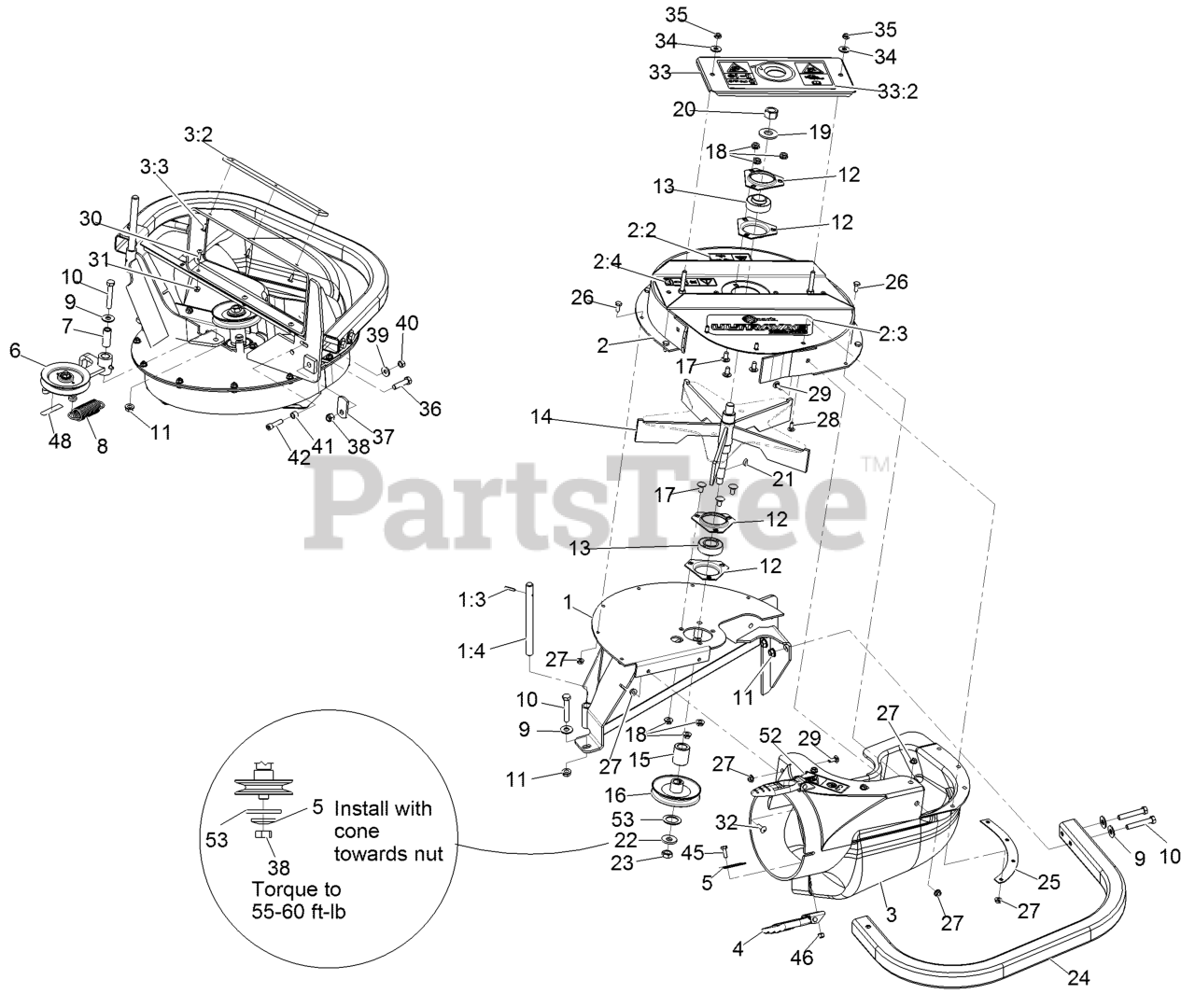

LZUV3B - Exmark Ultra Vac Triple Bagger for Lazer Z Mower (SN: 400000000 - 402082299) (2017) Blower Assembly No. 109-9836 Parts Diagram

Blower Assembly No. 109-9836 Parts Diagram

ASM, Idler
