LZUV3B - Exmark Ultra Vac Triple Bagger for Lazer Z Mower (SN: 315000000 - 315999999) (2015) LZUV3B Assembly Parts Diagram

Ultra Vac Triple Bagger for Lazer Z Mower

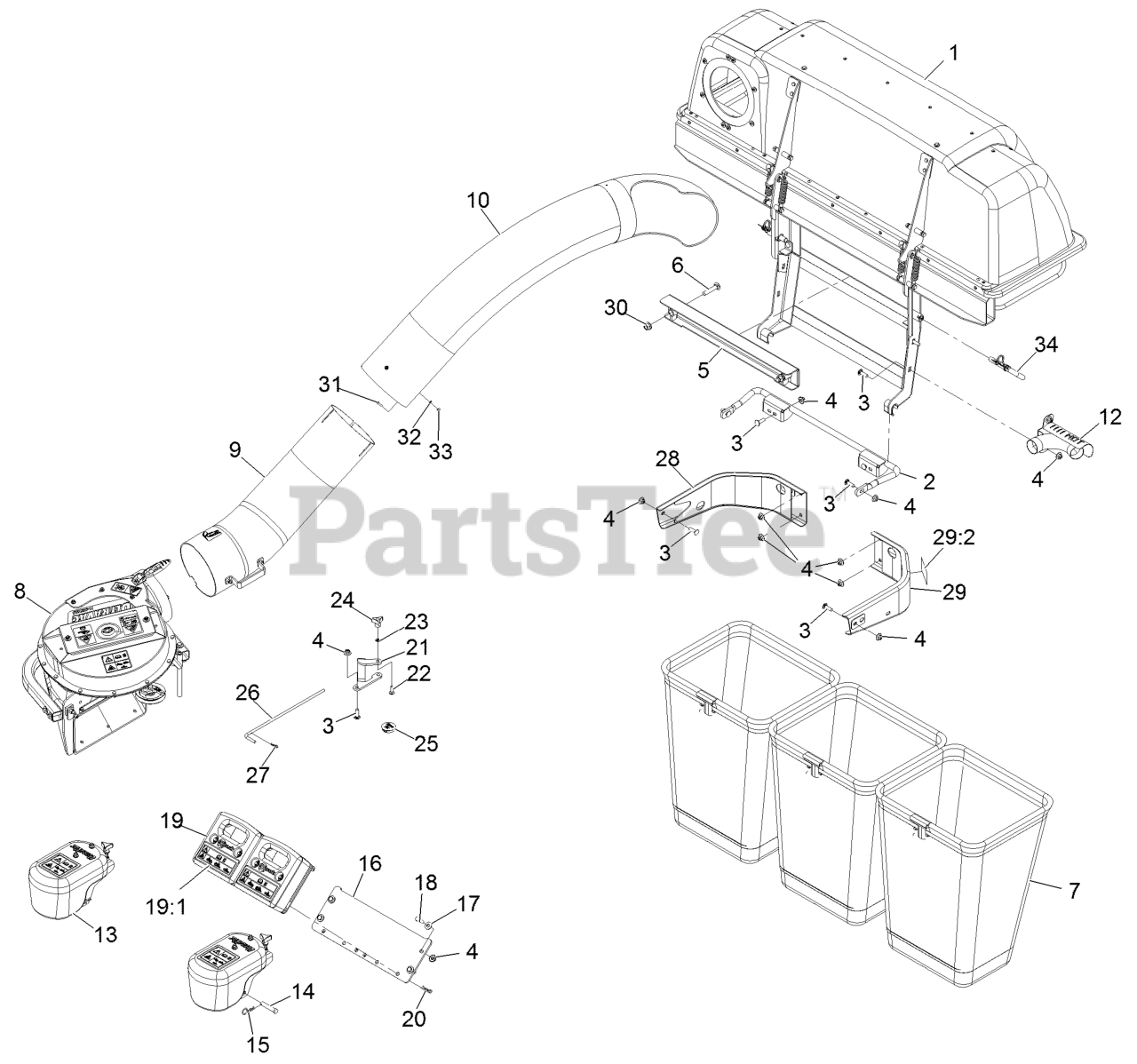

LZUV3B Assembly Parts Diagram

  • Title

1

ASM,Hood Uv 3 Bag

Note: Not serviced separately

$

$

Not available

2

Exmark 109-9248

MOUNT-BAGGER, LOWER

$223.99

$

Usually ships in 3-6 days

0

3

Exmark 3231-28

Bolt-Carriage 3/8-16 X 1 1/4

$4.99

$

In Stock, Qty 20+

0

4

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

5

Exmark 116-0473-03

MOUNT-BAGGER, UPPER

$259.99

$

Usually ships in 3-6 days

0

6

Exmark 3233-34

SCREW-CARR

$10.99

$

In Stock, Qty 18

0

7

Exmark 116-0754

BAG AND FRAME ASM

$202.99

$

In Stock, only 2 left!

0

8

Exmark 109-9836

ASM, BLOWER LARGE - SVC O

$2275.99

$

Usually ships in 3-6 days

0

9

Exmark 109-1973

LOWER TUBE ASM

$341.99

$

Usually ships in 3-6 days

0

10

Exmark 109-1968

TUBE-UPPER

$376.99

$

Usually ships in 3-6 days

0

12

Exmark 116-2804

EXHAUST DIVERTER ASM

$198.99

$

Usually ships in 3-6 days

0

13

Exmark 109-8461

ASM,CASTER WEIGHT

$774.99

$

Usually ships in 3-6 days

0

14

Exmark 92-2743

PIN-CLEVIS

$25.99

$

Usually ships in 3-6 days

0

15

Exmark 1-806005

PIN-COTTER

$2.99

$

In Stock, Qty 20+

0

16

Exmark 103-6368-01

PLATE,WEIGHT ASM MOUNT

$90.99

$

In Stock, only 1 left!

0

17

Exmark 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

18

Exmark 323-7

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

19

Exmark 103-6363

ASM,CAST WEIGHT

$405.99

$

Usually ships in 3-6 days

0

19:1

Exmark 126-4661

DECAL-WARNING WEIGHT

$6.49

$

In Stock, only 2 left!

0

20

Exmark 9335124

PIN-HAIR

$2.99

$

In Stock, Qty 5

0

21

Exmark 109-9463-03

BRACKET,BELT COVER

$51.99

$

Usually ships in 3-6 days

0

22

Exmark 3230-2

BOLT-CARR

$1.49

$

In Stock, only 4 left!

0

23

Exmark 109-5667

RING-RETAINING, BOLT

$6.99

$

In Stock, only 2 left!

0

24

Exmark 1-323385

KNOB-3 PRONG

$5.49

$

In Stock, Qty 20+

0

25

Exmark 103-1279

PLUG, BLACK NYLON 1.75

$13.99

$

Usually ships in 3-6 days

0

26

Exmark 109-3458

PIN,CHUTE PIVOT

$19.99

$

Usually ships in 3-6 days

0

27

Exmark 1-806003

PIN-COTTER

$1.99

$

In Stock, Qty 20+

0

28

Exmark 116-0057-03

BUMPER-RH

$233.99

$

Usually ships in 3-6 days

0

29

Exmark 116-0180

LH BUMPER ASM

$157.99

$

Usually ships in 3-6 days

0

29:2

Exmark 106-5517

DECAL-WARNING

$5.49

$

In Stock, only 2 left!

0

30

Exmark 99-5107

Nut-Lock 1/2-13

$1.99

$

In Stock, Qty 20+

0

31

Exmark 32105-13

SCREW-HWH

$1.99

$

In Stock, only 2 left!

0

32

Exmark 3256-14

WASHER-FLAT

$0.99

$

In Stock, only 4 left!

0

33

Exmark 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

34

Exmark 116-0458

PIN-MOUNT, BAGGER

$17.99

$

In Stock, only 2 left!

0
