LZUV2B - Exmark Ultra Vac Twin Bagger for Lazer Z Mower (SN: 411294212 - 413950473) (Rev A) (2022) Hood and Frame Assembly Parts Diagram

Ultra Vac Twin Bagger for Lazer Z Mower

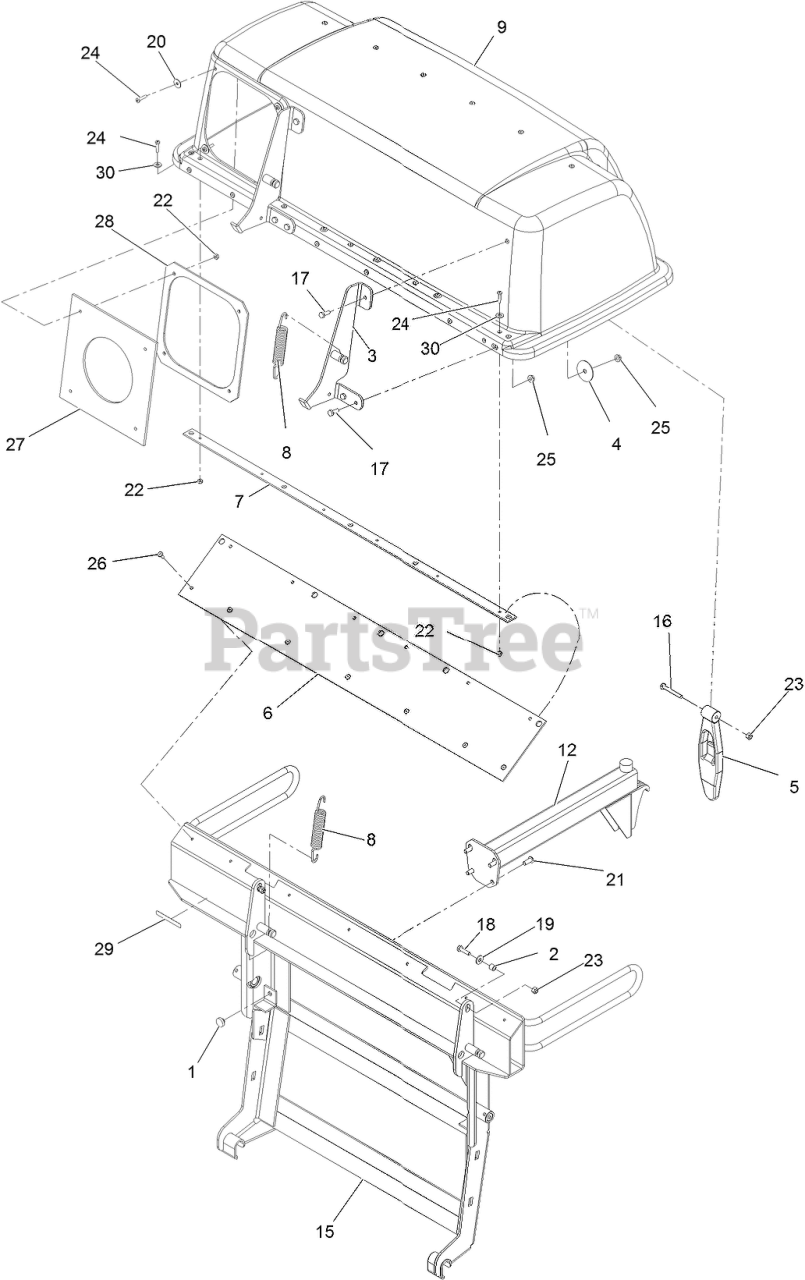

Hood and Frame Assembly Parts Diagram

  • Title

1

Exmark 1-513658

BUMPER

$6.49

$

In Stock, Qty 11

0

2

Exmark 1-633545

SPACER

$2.99

$

In Stock, Qty 15

0

3

Exmark 1-652395-03

HINGE ASM

$94.99

$

Usually ships in 3-6 days

0

4

Exmark 1-653036

WASHER

$5.49

$

In Stock, only 2 left!

0

5

Exmark 1-653403

LATCH

$78.99

$

In Stock, Qty 6

0

6

Exmark 1-653425

SEAL

$84.99

$

Usually ships in 3-6 days

0

7

Exmark 1-653528-03

PLATE-BACKING

$66.99

$

Usually ships in 3-6 days

0

8

Exmark 1-653544

SPRING-EXTENSION

$7.99

$

In Stock, only 2 left!

0

9

Exmark 1-654597

ASM, HOOD

$684.99

$

Usually ships in 3-6 days

0

12

Exmark 103-5166

BAG SUPPORT ASM

$160.99

$

Usually ships in 3-6 days

0

15

Exmark 109-8705-03

FRAME-BAG, TWIN

$810.99

$

Usually ships in 3-6 days

0

16

Exmark 321-11

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

17

Exmark 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

18

Exmark 321-6

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

19

Exmark 3256-2

WASHER-FLAT
(Superseded to 3256-2)

$0.99

$

In Stock, Qty 20+

0

20

Exmark 3256-61

WASHER-FLAT

$2.99

$

In Stock, only 2 left!

0

21

Exmark 3274-55

SCREW-HSBH

$5.49

$

In Stock, Qty 13

0

22

Exmark 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

23

Exmark 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

24

Exmark 3250-27

SCREW-PPH

$0.99

$

In Stock, Qty 9

0

25

Exmark 32128-33

NUT-HF

$0.99

$

In Stock, Qty 6

0

26

Exmark 114439

RIVET-BLIND

$1.49

$

In Stock, Qty 20+

0

27

Exmark 1-653561

SEAL-CHUTE

$19.99

$

In Stock, only 4 left!

0

28

Exmark 1-653598-03

CLAMP-SEAL

$79.99

$

Usually ships in 3-6 days

0

29

Exmark 133-8061

DECAL-WARNING

$1.49

$

Usually ships in 3-6 days

0

30

Exmark 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0
