Exmark LZUV2B - Exmark Ultra Vac Twin Bagger for Lazer Z Mower (SN: 402082300 - 404314158) (2018) Blower Assembly No. 109-9832 Parts Lookup with Diagrams

1

Exmark 1-303334

Washer-Spring Disc 5/16

$2.99

$

In Stock, only 4 left!

2

Exmark 1-353054

Latch-Catcher, Grass

$7.99

$

In Stock, only 3 left!

3

Exmark 1-513013

Housing-Flange

$5.49

$

In Stock, only 3 left!

4

Exmark 1-513208

Washer-Spring Disc 5/8

$8.99

$

In Stock, only 2 left!

5

Exmark 1-513435

Washer-Spring Disc 1/2

$5.49

$

In Stock, Qty 13

6

Exmark 116-4817

ASM-Upper Housing Small

$547.99

$

Usually ships in 3-6 days

6:2

Exmark 126-7211

Decal-Ultravac S-Series

$7.49

$

Usually ships in 3-6 days

6:3

Exmark 112-9028

Decal-Missing, Cover

$20.99

$

Usually ships in 3-6 days

6:4

Exmark 126-4661

Decal-Warning Weight

$5.99

$

In Stock, only 2 left!

7

Exmark 1-653322

Idler-Inside

$66.99

$

In Stock, only 2 left!

8

Exmark 1-653331

Spring

$12.99

$

In Stock, only 3 left!

9

Exmark 1-653346

Bearing

$69.99

$

In Stock, Qty 5

10

Exmark 1-653365

Spacer

$27.99

$

In Stock, only 1 left!

11

Exmark 1-653366

Spacer

$25.99

$

In Stock, only 2 left!

13

Exmark 126-4659

Decal-Warning

$5.49

$

Usually ships in 3-6 days

14

Exmark 1-653596-03

Plate-Backing, Blower

$49.99

$

In Stock, only 1 left!

15

ASM, Idler

$

Not available 

16

Exmark 1-803075

Screw-Truss Head #10-24 X 3/4

$1.49

$

In Stock, Qty 5

17

Exmark 1-803076

Screw-PPH 1/4-20 X 3/4

$1.49

$

Usually ships in 3-6 days

19

Exmark 103-0126

Bushing

$6.99

$

In Stock, Qty 11

20

Exmark 103-0130

Bushing-Pivot, Idler

$18.99

$

In Stock, Qty 7

21

Exmark 103-1047

Sheave-Blower

$75.99

$

In Stock, Qty 6

23

Exmark 103-3585

Cover, Bearing

$119.99

$

In Stock, only 1 left!

23:2

Exmark 126-4584

Decal-Warning

$11.99

$

Usually ships in 3-6 days

24

Exmark 103-3815

Impeller

$300.99

$

In Stock, Qty 5

25

Exmark 103-4080

Latch-Rubber

$31.99

$

In Stock, Qty 5

28

Exmark 109-1985

Chute, Blower (46, 50 And 56)

$455.99

$

Usually ships in 3-6 days

28:2

Exmark 103-4752-03

Plate-Reinforcing

$13.99

$

Usually ships in 3-6 days

28:3

Exmark 114439

Rivet

$1.49

$

In Stock, Qty 20+

28:4

Exmark 126-4853

Decal-Warning

$6.99

$

Usually ships in 3-6 days

29

Exmark 109-1122-01

Bumper

$116.99

$

Usually ships in 3-6 days

30

Exmark 109-9362-03

Weld, Frame Sm Blower

$708.99

$

Usually ships in 3-6 days

30:3

Exmark 1-806323

Rollpin 3/16 X 7/8

$1.49

$

Usually ships in 3-6 days

30:4

Exmark 1-353050

Shaft-Catcher, Grass

$17.99

$

Usually ships in 3-6 days

31

Exmark 321-3

Screw-HH 1/4-20 X 5/8

$1.49

$

In Stock, Qty 20+

32

Exmark 323-11

Screw-HH 3/8-16 X 2 1/4

$2.49

$

In Stock, Qty 20+

33

Exmark 323-12

Screw-HH 3/8-16 X 2 1/2

$2.49

$

In Stock, Qty 13

34

Exmark 323-7

Screw-HH 3/8-16 X 1 1/4

$2.99

$

In Stock, Qty 20+

35

Exmark 323-8

Screw-HH 3/8-16 X 1 1/2

$1.49

$

In Stock, Qty 20+

36

Exmark 3217-6

Nut-Hex 5/16-18

$1.49

$

In Stock, Qty 12

37

Exmark 3219-6

Nut-Hex 5/8-18

$3.99

$

In Stock, Qty 20+

38

Exmark 3220-5

Nut-Jam 1/2-20

$1.99

$

In Stock, Qty 20+

39

Exmark 3229-1

Bolt-Carriage 1/4-20 X 3/4

$3.99

$

In Stock, Qty 20+

40

Exmark 3229-11

Bolt-Carriage 1/4-20 X 5/8

$1.49

$

In Stock, Qty 20+

41

Exmark 3230-18

Bolt-Carriage 5/16-18 X 5/8

$5.49

$

In Stock, Qty 8

42

Exmark 3256-14

Washer-#10 Std

$0.99

$

In Stock, Qty 20+

43

Exmark 3256-24

Washer-3/8 SAE

$0.99

$

In Stock, Qty 20+

44

Exmark 3256-3

Washer-5/16 Std

$0.99

$

In Stock, Qty 20+

45

Exmark 3256-4

Washer-3/8 Std

$1.99

$

In Stock, Qty 20+

46

Exmark 3257-32

Key-Woodruff 3/16 X 5/8

$2.99

$

In Stock, Qty 11

47

Exmark 3274-107

Screw-Button Head 3/8-16 X 1 3/4

$5.49

$

In Stock, only 4 left!

48

Exmark 3274-18

Screw-Sh 5/16-18 X 1 1/4

$9.49

$

In Stock, Qty 7

49

Exmark 3290-148

Nut-Whizlock #10-24

$0.99

$

In Stock, Qty 11

50

Exmark 3290-357

Nut-Whizlock 3/8-16

$0.99

$

In Stock, Qty 20+

51

Exmark 3290-500

Screw-PPH #10-24 X 5/8

$1.49

$

In Stock, Qty 20+

52

Exmark 3296-39

Nut-Nyloc 3/8-16

$2.99

$

In Stock, Qty 20+

53

Exmark 3296-47

Nut-Nyloc 5/16-18 Thin

$3.99

$

In Stock, Qty 7

54

Exmark 32128-20

Nut-Whizlock 5/16-18

$1.49

$

In Stock, Qty 20+

55

Exmark 32128-33

Nut-Whizlock 1/4-20

$0.99

$

In Stock, Qty 6

57

Exmark 126-4853

Decal-Warning

$6.99

$

Usually ships in 3-6 days

58

Exmark 1-523157

Washer

$1.49

$

In Stock, Qty 20+

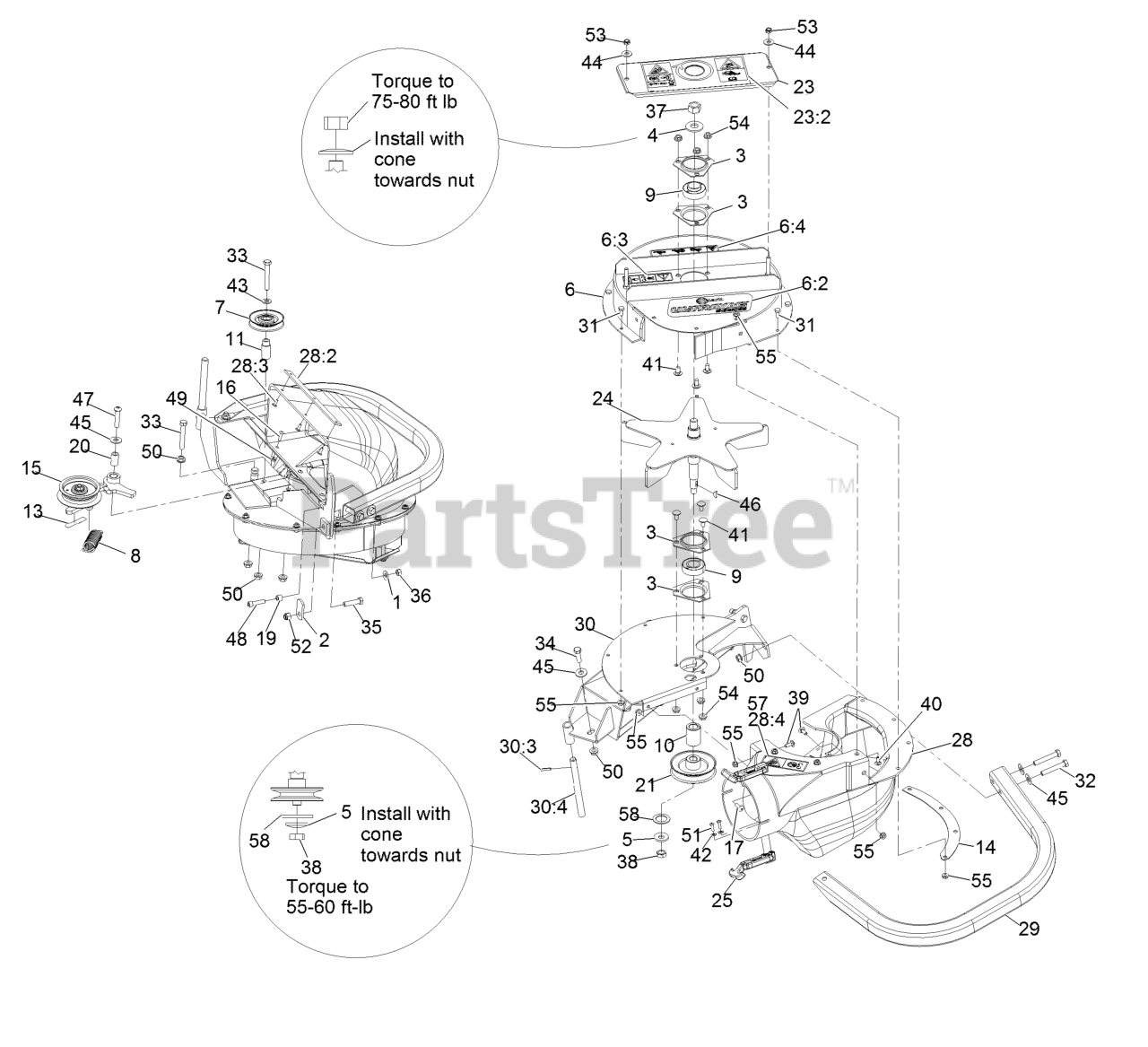

LZUV2B - Exmark Ultra Vac Twin Bagger for Lazer Z Mower (SN: 402082300 - 404314158) (2018) Blower Assembly No. 109-9832 Parts Diagram

Blower Assembly No. 109-9832 Parts Diagram
