LZUV2B - Exmark Ultra Vac Twin Bagger for Lazer Z Mower (SN: 314000000 - 314999999) (2014) LZUV2B Assembly Parts Diagram

Ultra Vac Twin Bagger for Lazer Z Mower

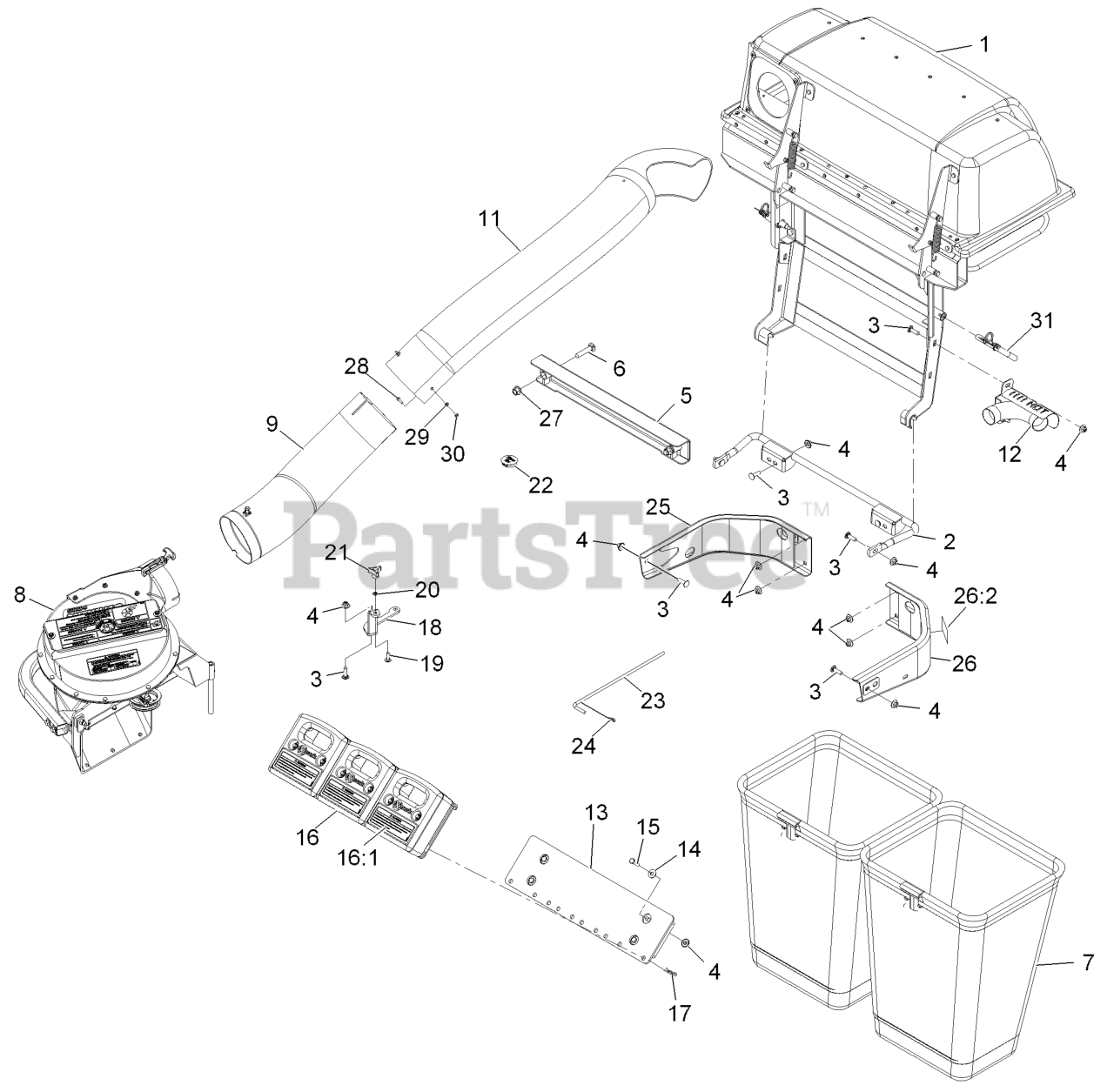

LZUV2B Assembly Parts Diagram

  • Title
1

Asm,Hood Uv 2-Bag

Note: Not serviced separately

$

$

Not available

2

Exmark 109-9248

MOUNT-BAGGER, LOWER

$210.99

$

Usually ships in 3-6 days

0

3

Exmark 3231-28

Bolt-Carriage 3/8-16 X 1 1/4

$4.49

$

In Stock, Qty 20+

0

4

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

5

Exmark 116-0473-03

MOUNT-BAGGER, UPPER

$245.99

$

Usually ships in 3-6 days

0

6

Exmark 3233-34

SCREW-CARR

$9.49

$

In Stock, only 3 left!

0

7

Exmark 116-0754

BAG AND FRAME ASM

$191.99

$

Usually ships in 3-6 days

0

8

Exmark 109-9832

ASM, BLOWER SMALL - SVC O

$2147.99

$

Usually ships in 3-6 days

0

9

Exmark 109-2043

LOWER TUBE ASM

$266.99

$

In Stock, only 1 left!

0

11

Exmark 109-2036

TUBE-UPPER

$287.99

$

Usually ships in 3-6 days

0

12

Exmark 116-2804

EXHAUST DIVERTER ASM

$186.99

$

Usually ships in 3-6 days

0

13

Exmark 116-1129-01

WLD, MOUNT TOEBOARD WEIGH

$456.99

$

Usually ships in 3-6 days

0

14

Exmark 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

15

Exmark 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

16

Exmark 103-6363

ASM,CAST WEIGHT

$344.99

$

Usually ships in 3-6 days

0

16:1

Exmark 103-6605

DECAL,WEIGHT

$

$

Not available

17

Exmark 9335124

PIN-HAIR

$2.99

$

In Stock, Qty 5

0

18

Exmark 116-0161-01

BRACKET, SMALL UV BELT CO

$50.99

$

Usually ships in 3-6 days

0

19

Exmark 3230-2

BOLT-CARR

$1.49

$

In Stock, Qty 5

0

20

Exmark 109-5667

RING-RETAINING, BOLT

$6.49

$

In Stock, only 1 left!

0

21

Exmark 1-323385

KNOB-3 PRONG

$5.49

$

In Stock, Qty 20+

0

22

Exmark 103-1279

PLUG, BLACK NYLON 1.75

$11.99

$

Usually ships in 3-6 days

0

23

Exmark 109-3458

PIN,CHUTE PIVOT

$17.99

$

Usually ships in 3-6 days

0

24

Exmark 1-806003

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

25

Exmark 116-0057-03

BUMPER-RH

$220.99

$

In Stock, only 1 left!

0

26

Exmark 116-0180

LH BUMPER ASM

$144.99

$

Usually ships in 3-6 days

0

26:2

Exmark 103-2076

DECAL-CAUTION

$6.49

$

In Stock, only 1 left!

0

27

Exmark 99-5107

Nut-Lock 1/2-13

$1.99

$

In Stock, Qty 20+

0

28

Exmark 32105-13

SCREW-HWH

$1.99

$

In Stock, Qty 5

0

29

Exmark 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

30

Exmark 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

31

Exmark 116-0458

PIN-MOUNT, BAGGER

$15.99

$

In Stock, only 2 left!

0
