LZUV2B - Exmark Ultra Vac Twin Bagger for Lazer Z Mower (SN: 000790000 - 000849999) (2009) LZUV2B Assembly Parts Diagram

Ultra Vac Twin Bagger for Lazer Z Mower

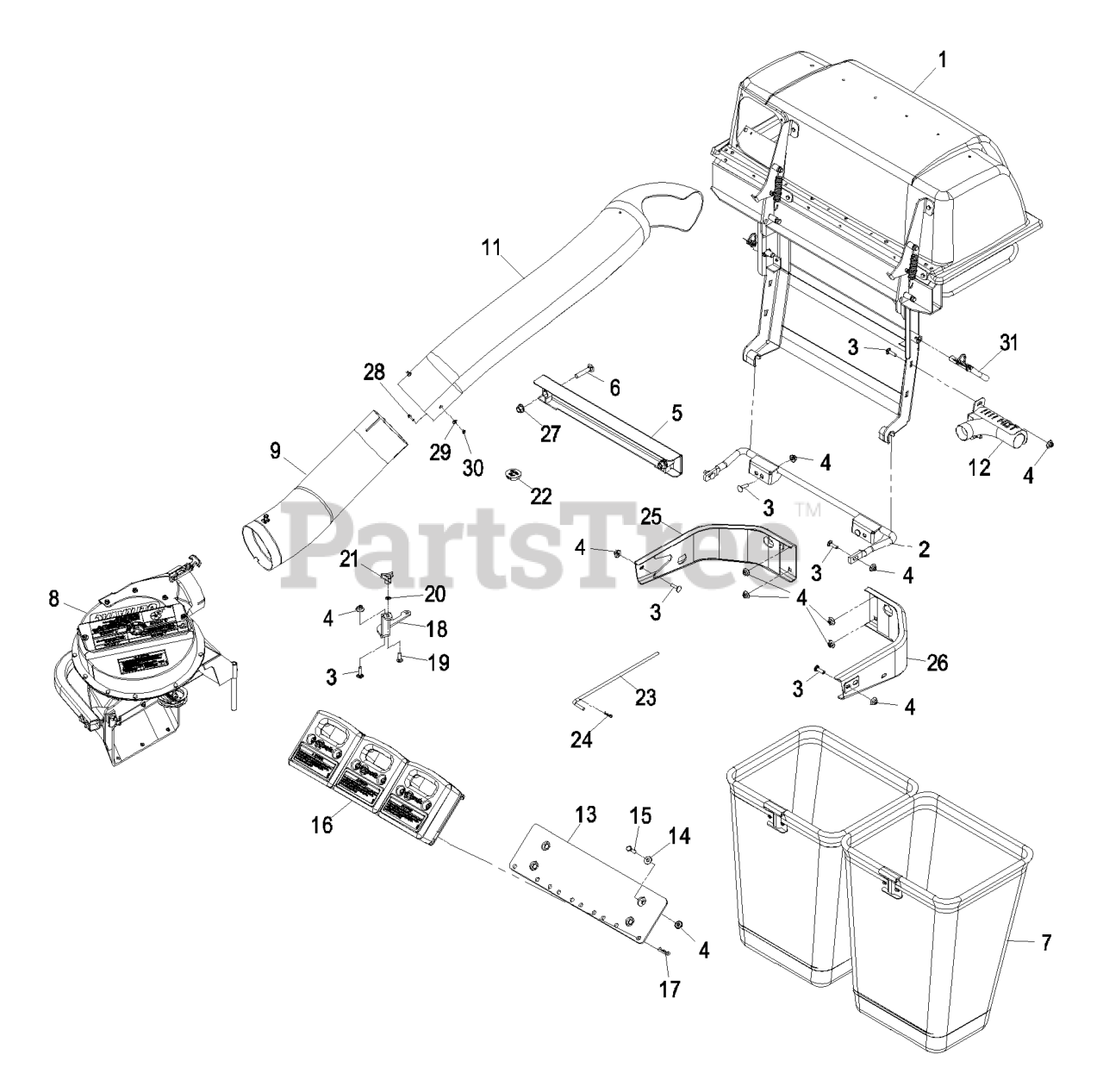

LZUV2B Assembly Parts Diagram

  • Title
1

Exmark 109-5941

Asm, Hood & Frame

$

$

Currently unavailable

2

Exmark 109-9248

MOUNT-BAGGER, LOWER

$206.99

$

Usually ships in 3-6 days

0

3

Exmark 3231-28

Bolt-Carriage 3/8-16 X 1 1/4

$4.49

$

In Stock, Qty 20+

0

4

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, only 4 left!

0

5

Exmark 116-0473-03

MOUNT-BAGGER, UPPER

$239.99

$

Usually ships in 3-6 days

0

6

Exmark 3233-34

SCREW-CARR

$9.49

$

In Stock, only 3 left!

0

7

Exmark 103-0435

116-0754
(Superseded to 116-0754)

$185.99

$

Usually ships in 3-6 days

0

8

Exmark 109-9832

ASM, BLOWER SMALL - SVC O

$2147.99

$

Usually ships in 3-6 days

0

9

Exmark 109-2043

LOWER TUBE ASM

$258.99

$

In Stock, only 1 left!

0

11

Exmark 109-2036

TUBE-UPPER

$279.99

$

Usually ships in 3-6 days

0

12

Exmark 109-9338

116-2804
(Superseded to 116-2804)

$202.99

$

Usually ships in 3-6 days

0

13

Exmark 109-9355-01

116-1129-01
(Superseded to 116-1129-01)

$456.99

$

Usually ships in 3-6 days

0

14

Exmark 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

15

Exmark 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

16

Exmark 103-6363

ASM,CAST WEIGHT

$344.99

$

Usually ships in 3-6 days

0

17

Exmark 9335124

PIN-HAIR

$2.99

$

In Stock, Qty 5

0

18

Exmark 116-0161-01

BRACKET, SMALL UV BELT CO

$51.99

$

Usually ships in 3-6 days

0

19

Exmark 3230-2

BOLT-CARR

$1.49

$

Usually ships in 3-6 days

0

20

Exmark 109-5667

RING-RETAINING, BOLT

$6.49

$

In Stock, only 1 left!

0

21

Exmark 1-323385

KNOB-3 PRONG

$5.49

$

In Stock, Qty 20+

0

22

Exmark 103-1279

PLUG, BLACK NYLON 1.75

$11.99

$

Usually ships in 3-6 days

0

23

Exmark 109-3458

PIN,CHUTE PIVOT

$17.99

$

Usually ships in 3-6 days

0

24

Exmark 1-806003

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

25

Exmark 116-0057-03

BUMPER-RH

$213.99

$

In Stock, only 1 left!

0

26

Exmark 116-0180

LH BUMPER ASM

$144.99

$

Usually ships in 3-6 days

0

27

Exmark 99-5107

Nut-Lock 1/2-13

$1.99

$

In Stock, Qty 20+

0

28

Exmark 32105-13

SCREW-HWH

$1.99

$

In Stock, Qty 5

0

29

Exmark 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

30

Exmark 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

31

Exmark 116-0458

PIN-MOUNT, BAGGER

$15.99

$

In Stock, only 2 left!

0
