LZS902DKU725A1 - Exmark 72" Lazer Z DS-Series Zero-Turn Mower, Kubota Diesel (SN: 400000000 - 402082299) (2017) LH Motion Control Assembly No. 109-3979 Parts Diagram

72" Lazer Z DS-Series Zero-Turn Mower, Kubota Diesel

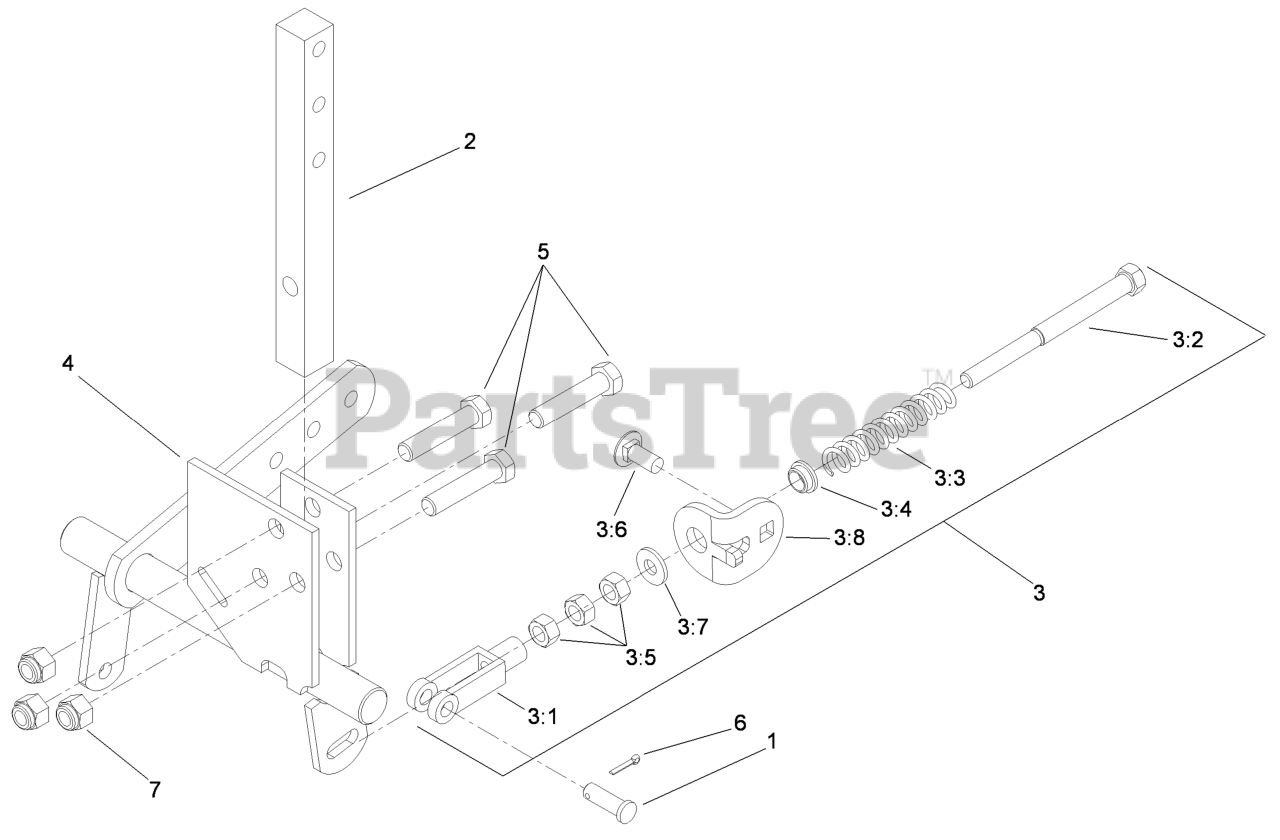

LH Motion Control Assembly No. 109-3979 Parts Diagram

  • Title

1

Exmark 1-808280

PIN-CLEVIS

$2.99

$

In Stock, Qty 20+

0

2

Exmark 103-0407

ARM-SHAFT, CONTROL

$30.99

$

In Stock, only 2 left!

0

3

Exmark 109-3903

NEUTRAL RETURN ASM

$35.99

$

Usually ships in 3-6 days

0

3:1

Exmark 1-303105

YOKE-ADJUSTABLE

$12.99

$

In Stock, only 2 left!

0

3:2

Exmark 1-603737

BOLT-RETURN, NEUTRAL

$9.49

$

In Stock, only 4 left!

0

3:3

Exmark 1-603807

SPRING-RETURN, NEUTRAL

$3.49

$

In Stock, Qty 17

0

3:4

Exmark 109-3769

BUSHING-NYLON, FLANGED

$

$

Not available

3:5

Exmark 3219-2

NUT-HEX

$0.99

$

In Stock, Qty 20+

0

3:6

Exmark 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

3:7

Exmark 3256-2

WASHER-FLAT
(Superseded to 3256-2)

$0.99

$

In Stock, Qty 20+

0

3:8

Exmark 109-3908

TAB-ADJUSTMENT

$6.49

$

Usually ships in 3-6 days

0

4

Exmark 109-3983

109-3979
(Superseded to 109-3979)

$

$

Not available

5

Exmark 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

6

Exmark 3272-5

PIN-COTTER

$1.49

$

In Stock, Qty 5

0

7

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0
