LZS902DKU60R00 - Exmark 60" Lazer Z DS-Series Zero-Turn Mower, Kubota Diesel (SN: 315000000 - 315999999) (2015) Hydraulic Assembly Parts Diagram

60" Lazer Z DS-Series Zero-Turn Mower, Kubota Diesel

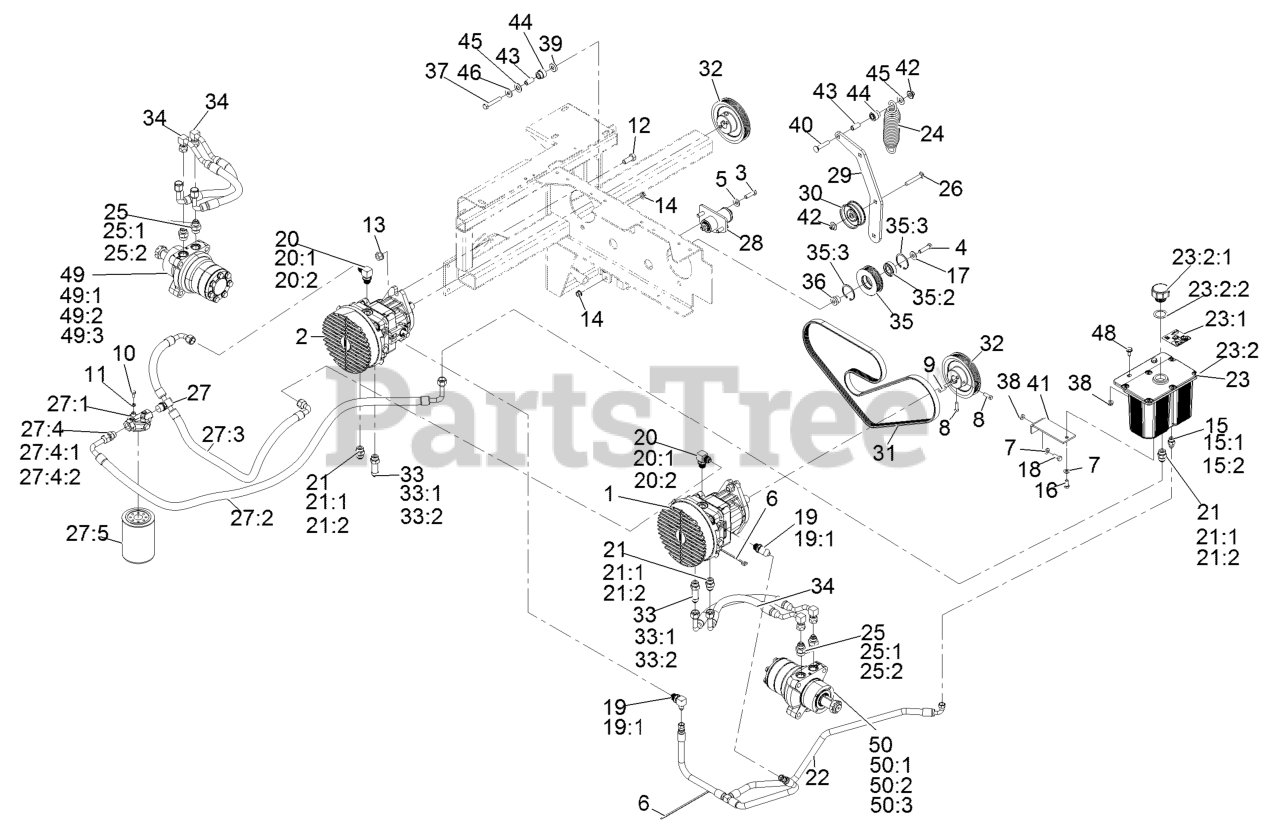

Hydraulic Assembly Parts Diagram

  • Title

1

Exmark 109-7543

PUMP, LH

$1671.99

$

Usually ships in 3-6 days

0

2

Exmark 109-7544

PUMP, RH

$1671.99

$

Usually ships in 3-6 days

0

3

Exmark 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

4

Exmark 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

5

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

6

Exmark 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 8

0

7

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

8

Exmark 30-1710

SCREW-SET

$11.99

$

In Stock, Qty 12

0

9

Exmark 1-807259

KEY

$2.49

$

In Stock, Qty 20+

0

10

Exmark 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

11

Exmark 1-805004

WASHER-LOCK

$1.49

$

In Stock, Qty 14

0

12

Exmark 325-5

SCREW-HH

$1.49

$

In Stock, Qty 6

0

13

Exmark 32128-49

NUT-HHF

$1.99

$

In Stock, Qty 20+

0

14

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

15

Exmark 103-2156

FITTING-STRAIGHT

$42.99

$

In Stock, only 3 left!

0

15:1

Exmark 1-603921

237-42
(Superseded to 237-42)

$3.49

$

In Stock, Qty 20+

0

15:2

Exmark 103-1020

O-RING

$1.49

$

Usually ships in 3-6 days

0

16

Exmark 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

17

Exmark 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

18

Exmark 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

19

Exmark 103-1014

FITTING-ELBOW, 90 DEG

$39.99

$

Usually ships in 3-6 days

0

19:1

Exmark 1-603920

O-RING

$3.99

$

In Stock, Qty 20+

0

20

Exmark 103-2153

FITTING-90 DEG

$49.99

$

Usually ships in 3-6 days

0

20:1

Exmark 1-603920

O-RING

$3.99

$

In Stock, Qty 20+

0

20:2

Exmark 1-603992

O-RING

$2.99

$

In Stock, Qty 20+

0

21

Exmark 1-603990

FITTING-STRAIGHT

$18.99

$

In Stock, Qty 12

0

21:1

Exmark 1-603920

O-RING

$3.99

$

In Stock, Qty 20+

0

21:2

Exmark 1-603992

O-RING

$2.99

$

In Stock, Qty 20+

0

22

Exmark 109-0087

ASM,CASE DRAIN HOSE

$157.99

$

Usually ships in 3-6 days

0

23

Exmark 109-0582

HYDRAULIC TANK ASM

$416.99

$

Usually ships in 3-6 days

0

23:1

Exmark 115-4212

DECAL-WARNING

$12.99

$

Usually ships in 3-6 days

0

23:2

Tank-Hydraulic

Note: Not serviced separately

$

$

Not available

23:2:1

Exmark 103-1948

Cap-Reservoir, HYD
(Superseded to 103-7615)

$32.99

$

In Stock, Qty 20+

0

23:2:2

Exmark 103-1949

GASKET-CAP
(Superseded to 142-2792)

$1.49

$

In Stock, Qty 20+

0

24

Exmark 116-6317

SPRING-EXTENSION

$28.99

$

In Stock, Qty 20+

0

25

Exmark 1-603991

FITTING-STRAIGHT

$21.99

$

In Stock, only 4 left!

0

25:1

Exmark 237-80

O-RING

$6.99

$

In Stock, Qty 19

0

25:2

Exmark 1-603992

O-RING

$2.99

$

In Stock, Qty 20+

0

26

Exmark 3231-31

SCREW-CARR

$7.49

$

In Stock, Qty 20+

0

27

Exmark 109-6905

Asm, Charge Hose

$210.99

$

In Stock, only 1 left!

0

27:1

Exmark 103-2259

HEAD-FILTER

$119.99

$

Usually ships in 3-6 days

0

27:2

Exmark 109-6904

ASM, HOSE-FILTER INLET

$174.99

$

In Stock, only 1 left!

0

27:3

Exmark 109-6903

ASM, HOSE-PUMP INLET

$188.99

$

Usually ships in 3-6 days

0

27:4

Exmark 1-603990

FITTING-STRAIGHT

$18.99

$

In Stock, Qty 12

0

27:4:1

Exmark 1-603920

O-RING

$3.99

$

In Stock, Qty 20+

0

27:4:2

Exmark 1-603992

O-RING

$2.99

$

In Stock, Qty 20+

0

27:5

Exmark 103-2146

FILTER,XP HYD 25 MICRON

$70.99

$

In Stock, Qty 5

0

28

Exmark 109-3250

KIT,PUMP IDLER

$255.99

$

In Stock, only 2 left!

0

29

Exmark 103-7569-03

ARM,PUMP IDLER

$55.99

$

Usually ships in 3-6 days

0

30

Exmark 116-0888

IDLER,FLANGED

$60.99

$

In Stock, only 1 left!

0

31

Exmark 109-7582

BELT, 5K 68.8
(Superseded to 109-7582-SL)

$58.99

$

In Stock, only 1 left!

0

32

Exmark 109-7561

SHEAVE,5K 5.0" PD POLY-V

$118.99

$

Usually ships in 3-6 days

0

33

Exmark 103-1940

ADAPTER-STR, LONG

$25.99

$

In Stock, only 3 left!

0

33:1

Exmark 237-79

O-RING

$5.99

$

In Stock, Qty 7

0

33:2

Exmark 1-603992

O-RING

$2.99

$

In Stock, Qty 20+

0

34

Exmark 103-4680

HYD HOSE ASM

$153.99

$

In Stock, Qty 7

0

35

Exmark 103-4728

ASM,LOWER FRAME IDLER

$157.99

$

In Stock, only 1 left!

0

35:2

Exmark 251-347

BEARING-BALL

$10.99

$

In Stock, only 4 left!

0

35:3

Exmark 32151-13

RING-RETAINING

$5.49

$

Usually ships in 3-6 days

0

36

Exmark 103-4566

SPACER,LOWER FRAME IDLER

$16.99

$

In Stock, only 1 left!

0

37

Exmark 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

38

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

39

Exmark 103-3186

SPACER-BRACKET, GUIDE

$23.99

$

In Stock, only 1 left!

0

40

Exmark 323-16

SCREW-HH

$3.49

$

In Stock, Qty 6

0

41

Exmark 109-0089-03

BRACKET, HYDRAULIC TANK

$36.99

$

Usually ships in 3-6 days

0

42

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

43

Exmark 109-8753

SPACER

$15.99

$

In Stock, only 3 left!

0

44

Exmark 109-8752

BUSHING,PLASTIC

$26.99

$

In Stock, Qty 5

0

45

Exmark 112-9771

WASHER-TEFLON

$2.99

$

In Stock, Qty 18

0

46

Exmark 5-0838

WASHER

$4.99

$

In Stock, only 1 left!

0

48

Exmark 32144-70

Screw-HWH 5/16-18 X 3/4 Tf

$2.99

$

In Stock, Qty 20+

0

49

Exmark 112-8358

HYD MOTOR ASM (CW)

$1345.99

$

Usually ships in 3-6 days

0

49:1

Exmark 3257-42

KEY-WOODRUFF

$6.49

$

In Stock, Qty 10

0

49:2

Exmark 1-809036

NUT-HH

$37.99

$

In Stock, Qty 5

0

49:3

Exmark 109-5966

126-7279
(Superseded to 126-7279)

$333.99

$

Usually ships in 3-6 days

0

50

Exmark 112-8357

HYD MOTOR ASM (CCW)

$1421.99

$

Usually ships in 3-6 days

0

50:1

Exmark 3257-42

KEY-WOODRUFF

$6.49

$

In Stock, Qty 10

0

50:2

Exmark 1-809036

NUT-HH

$37.99

$

In Stock, Qty 5

0

50:3

Exmark 109-5966

126-7279
(Superseded to 126-7279)

$333.99

$

Usually ships in 3-6 days

0
