LZS902DKU605A1 - Exmark 60" Lazer Z DS-Series Zero-Turn Mower, Kubota Diesel (SN: 400000000 - 402082299) (2017) Deck Assembly Parts Diagram

60" Lazer Z DS-Series Zero-Turn Mower, Kubota Diesel

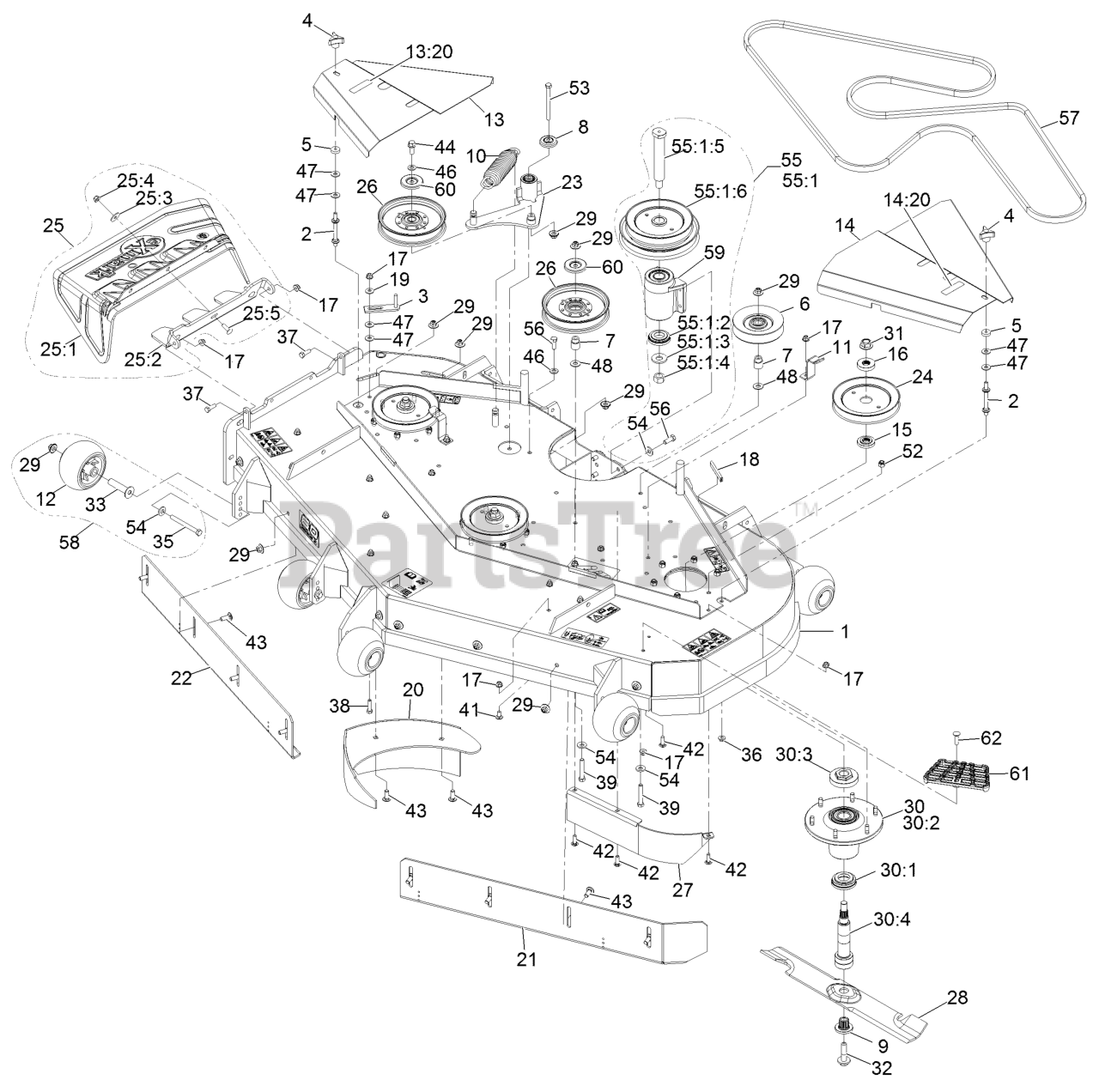

Deck Assembly Parts Diagram

  • Title

1

Exmark 109-2100

ASM, DECK 605 W/DECALS

$4946.99

$

Usually ships in 3-6 days

0

2

Exmark 1-303537

STUD-SHIELD, BELT (SHORT)

$6.49

$

In Stock, Qty 20+

0

3

Exmark 1-322110

GUIDE-BELT

$12.99

$

In Stock, Qty 8

0

4

Exmark 1-323385

KNOB-3 PRONG

$5.49

$

In Stock, Qty 20+

0

5

Exmark 1-323417

WASHER

$3.49

$

In Stock, Qty 20+

0

6

Exmark 1-603805

PULLEY-IDLER

$54.99

$

In Stock, Qty 12

0

7

Exmark 1-633456

BUSHING-IDLER

$5.49

$

In Stock, Qty 20+

0

8

Exmark 103-2916

GUARD-TOP

$2.99

$

In Stock, Qty 9

0

9

Exmark 103-3037

BUSHING,SPLINED

$22.99

$

In Stock, Qty 20+

0

10

Exmark 116-6317

SPRING-EXTENSION

$28.99

$

In Stock, Qty 7

0

11

Exmark 103-8103-01

LATCH,BELT SHIELD

$11.99

$

Usually ships in 3-6 days

0

12

Exmark 103-8415

ROLLER-SCALP, ANTI

$23.99

$

In Stock, Qty 20+

0

13

Exmark 109-2097

SHIELD, BELT RH 605 W/DEC

$135.99

$

Usually ships in 3-6 days

0

13:20

Exmark 93-6687

DECAL-NO STEP

$18.99

$

Usually ships in 3-6 days

0

14

Exmark 109-2096

SHIELD, BELT LH 605 W/DEC

$135.99

$

Usually ships in 3-6 days

0

14:20

Exmark 93-6687

DECAL-NO STEP

$18.99

$

Usually ships in 3-6 days

0

15

Exmark 103-9522

SPACER,SPLINED STEPPED

$6.99

$

In Stock, Qty 9

0

16

Exmark 103-9523

SPACER,SPLINED

$8.49

$

In Stock, Qty 20+

0

17

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

18

Exmark 105-7699

STRIP-SEAL

$9.49

$

In Stock, Qty 20+

0

19

Exmark 1-303334

WASHER-SPRING

$2.99

$

In Stock, only 4 left!

0

20

Exmark 109-0694-01

WLD,DOGLEG 605

$183.99

$

Usually ships in 3-6 days

0

21

Exmark 109-0701-01

WLD,BAFFLE FRT ADJ LH 605

$200.99

$

Usually ships in 3-6 days

0

22

Exmark 109-0704-01

WLD,BAFFLE FRT ADJ RH 605

$200.99

$

Usually ships in 3-6 days

0

23

Exmark 109-2095

KIT, IDLER ARM W/BEARINGS

$229.99

$

In Stock, only 2 left!

0

24

Exmark 109-1023

SHEAVE, BLADE DRIVE 6.13

$41.99

$

In Stock, Qty 5

0

25

Exmark 109-2099

ASM, DISCHARGE CHUTE

$215.99

$

In Stock, only 1 left!

0

25:1

Exmark 109-2739

CHUTE,DISCHARGE LZ

$91.99

$

Usually ships in 3-6 days

0

25:2

Exmark 109-0498-01

HINGE,DISCHARGE CHUTE

$92.99

$

Usually ships in 3-6 days

0

25:3

Exmark 3256-82

WASHER-FLAT

$0.99

$

In Stock, Qty 7

0

25:4

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

25:5

Exmark 3230-22

SCREW-CARR
(Superseded to 3230-22)

$2.49

$

In Stock, only 2 left!

0

26

Exmark 126-9189

IDLER-PULLEY, FLAT 6.00X1

$61.99

$

In Stock, Qty 8

0

27

Exmark 109-5424-01

BAFFLE,SCROLL 605

$

$

Not available

28

Exmark 109-6469

Blade-High Lift Solid, 20.75

$

$

Currently unavailable

28

Exmark 103-8240

103-8240-S
(Superseded to 103-8240-S)

$38.99

$

In Stock, only 3 left!

0

28

Exmark 109-5396

109-5396-S
(Superseded to 109-5396-S)

Note: Requires installation of mulch kit for proper mulching. See your Exmark dealer for details.

$45.99

$

In Stock, Qty 5

0

28

Exmark 109-6463

Blade,High Lift Notched 20.75

$

$

Currently unavailable

28

Exmark 116-5499

Blade-Extreme 2, 20.75
(Superseded to 116-5499-S)

$43.99

$

In Stock, only 3 left!

0

29

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

30

Exmark 109-6917

ASM,SPINDLE HOUSING

$521.99

$

In Stock, Qty 15

0

30:1

Exmark 103-9504

GUARD,BOTTOM

$11.99

$

In Stock, only 2 left!

0

30:2

Exmark 103-9539

ASM,CUTTER HOUSING

$374.99

$

In Stock, only 2 left!

0

30:3

Exmark 109-0916

NUT, SPINDLE 7/8-14

Note: Torque to 160-185 ft-lb

$24.99

$

In Stock, only 1 left!

0

30:4

Exmark 109-6881

SPINDLE,DOUBLE SPLINE

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade anti-seize). See operator s manual for locations.

$129.99

$

In Stock, Qty 9

0

31

Exmark 109-7033

NUT-FLANGE, CENTERLOCK

$2.99

$

In Stock, Qty 20+

0

32

Exmark 109-9220

SCREW,SEMS 1/2-20 X 2.19

$8.49

$

In Stock, Qty 20+

0

33

Exmark 116-8131

AXLE, ROLLER

$12.99

$

In Stock, Qty 12

0

35

Exmark 116-9362

SCREW-HH 3/8-16 X 3 3/4 GR 8

$2.99

$

In Stock, Qty 17

0

36

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

37

Exmark 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

38

Exmark 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

39

Exmark 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

41

Exmark 3230-18

SCREW-CARR

$5.49

$

In Stock, Qty 5

0

42

Exmark 3230-22

SCREW-CARR
(Superseded to 3230-22)

$2.49

$

In Stock, only 2 left!

0

43

Exmark 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

44

Exmark 3234-11

SCREW-HHF

$4.49

$

In Stock, Qty 20+

0

46

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 12

0

47

Exmark 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

48

Exmark 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

52

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

53

Exmark 98-5961

SCREW-HH

$5.49

$

In Stock, Qty 20+

0

54

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

55

Exmark 103-3249

KIT,JACKSHAFT 60/72-3750

$464.99

$

In Stock, only 1 left!

0

55:1

ASM, Jackshaft 60 & 72 - 3750

Note: Not serviced separately

$

$

Not available

55:1:2

Exmark 103-2535

SPACER-GUARD, BOTTOM

$12.99

$

In Stock, only 3 left!

0

55:1:3

Exmark 1-513208

WASHER-SPRING

$8.99

$

In Stock, only 2 left!

0

55:1:4

Exmark 3219-6

NUT-HEX

$3.99

$

In Stock, Qty 20+

0

55:1:5

Exmark 1-643393

JACKSHAFT

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade anti-seize). See operator s manual for locations.

$33.99

$

Usually ships in 3-6 days

0

55:1:6

Exmark 103-3046

SHEAVE, JACKSHAFT DOUBLE

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade anti-seize). See operator s manual for locations.

$111.99

$

In Stock, only 3 left!

0

56

Exmark 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

57

Exmark 1-633127

BELT,BLADE DRIVE
(Superseded to 1-633127-SL)

$119.99

$

In Stock, Qty 20+

0

58

Exmark 116-9981

KIT, ANTI-SCALP ROLLER

$52.99

$

In Stock, Qty 20+

0

59

Exmark 103-9746

KIT, JACKSHAFT ASSY

$263.99

$

In Stock, only 1 left!

0

60

Exmark 126-8043

SHIELD-DUST

$2.99

$

In Stock, only 2 left!

0

61

Exmark 126-4781-03

STEP-DECK

$26.99

$

Usually ships in 3-6 days

0

62

Exmark 3230-3

Bolt-Carriage 5/16-18 X 1 1/4

$1.49

$

In Stock, Qty 20+

0
