LZS902DKU605A1 - Exmark 60" Lazer Z DS-Series Zero-Turn Mower, Kubota Diesel (SN: 316000000 - 399999999) (2016) Seat Frame Single Latch Assembly Parts Diagram

60" Lazer Z DS-Series Zero-Turn Mower, Kubota Diesel

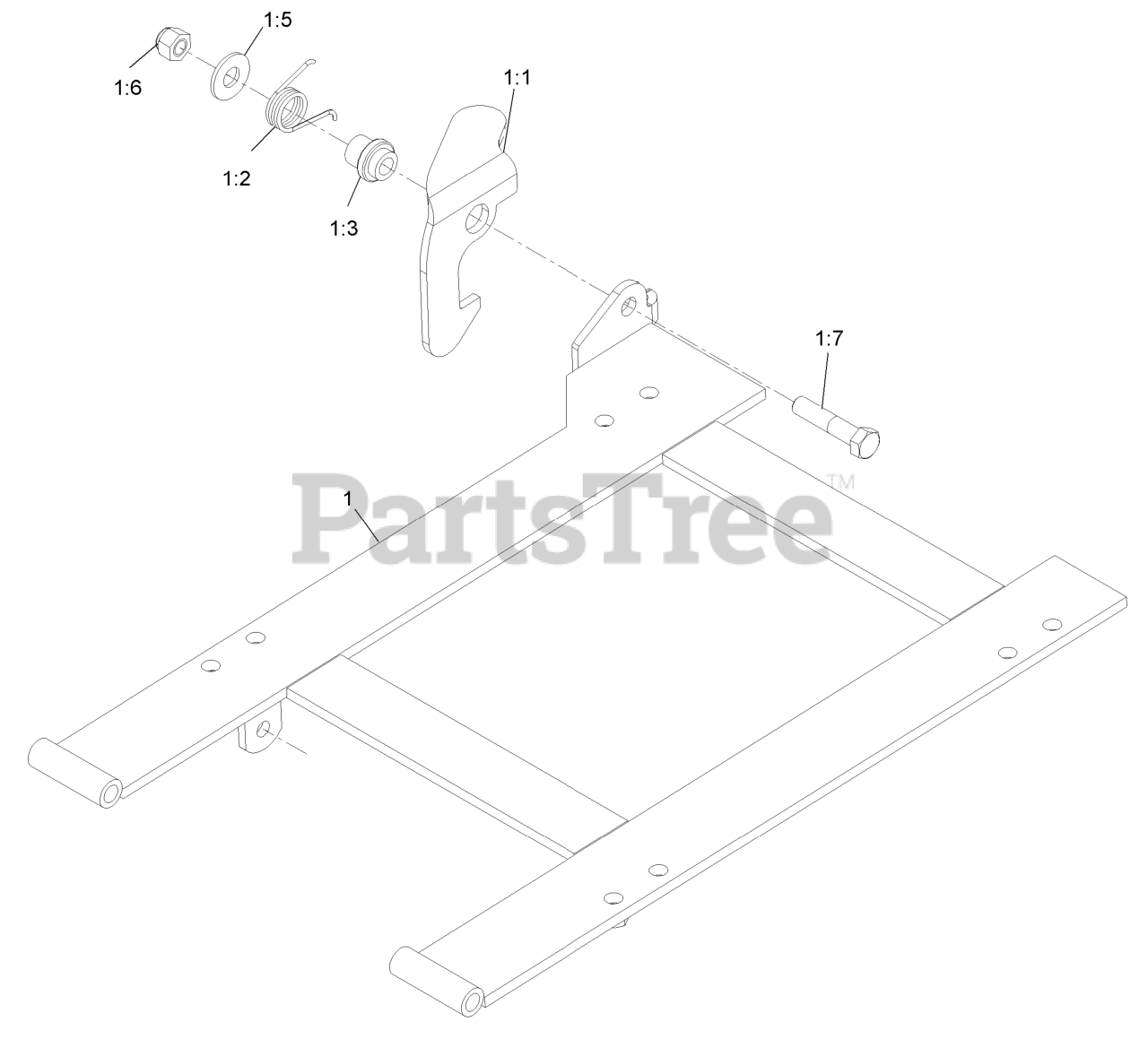

Seat Frame Single Latch Assembly Parts Diagram

  • Title
1

Seat Frame Single Latch ASM

Note: Not serviced separately

$

$

Not available

1:1

Exmark 103-5520

CATCH-LATCH, SINGLE

$170.99

$

Usually ships in 3-6 days

0

1:2

Exmark 103-5519

SPRING-TORSION, LATCH

$8.49

$

Usually ships in 3-6 days

0

1:3

Exmark 107-0075

BUSHING-LATCH, SEAT

$5.49

$

Usually ships in 3-6 days

0

1:5

Exmark 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

1:6

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

1:7

Exmark 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0
