LZS902DKU605A1 - Exmark 60" Lazer Z DS-Series Zero-Turn Mower, Kubota Diesel (SN: 316000000 - 399999999) (2016) Front Frame Assembly Parts Diagram

60" Lazer Z DS-Series Zero-Turn Mower, Kubota Diesel

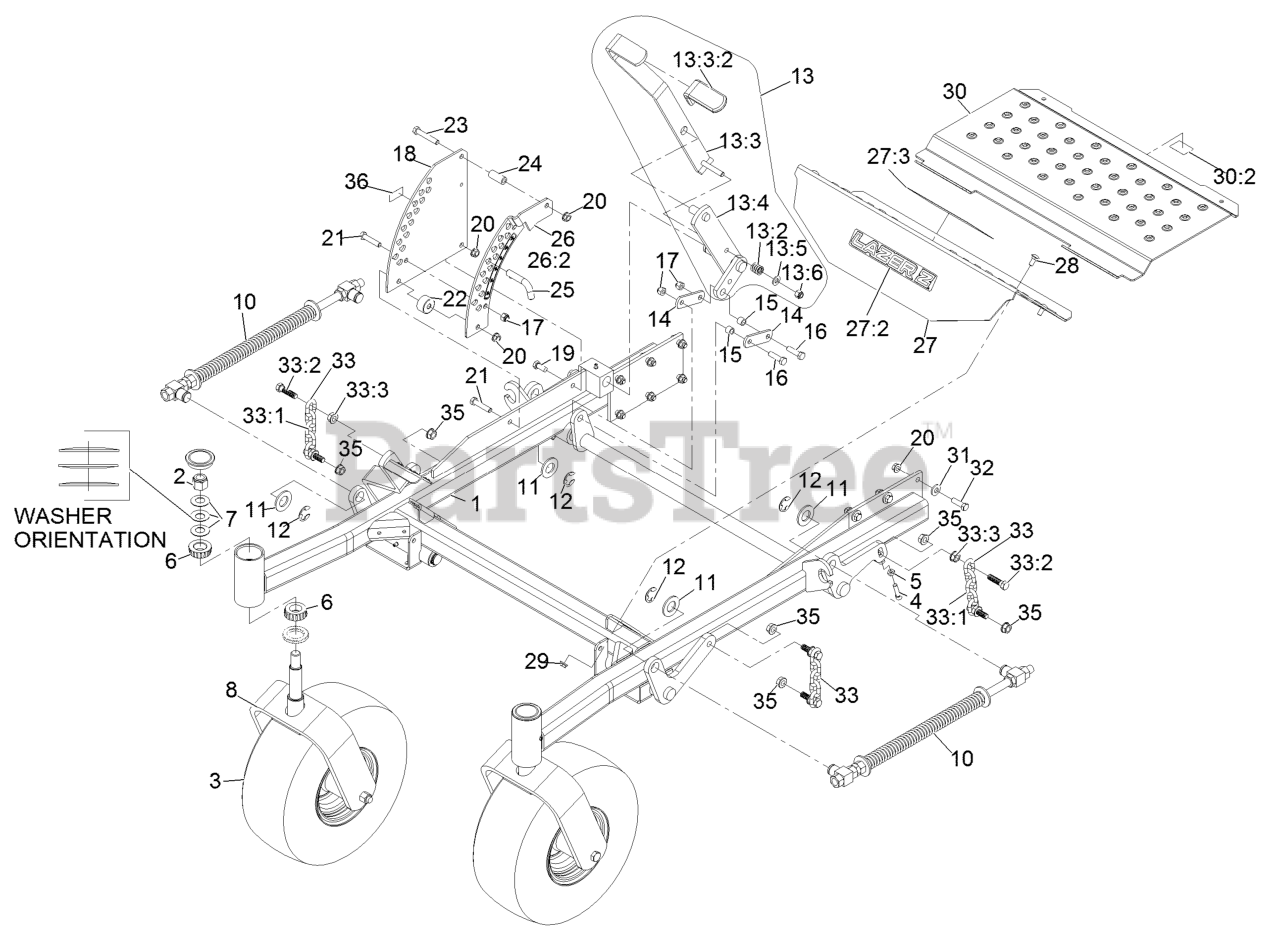

Front Frame Assembly Parts Diagram

  • Title

1

Exmark 116-9498

ASM-FRT FRM 605

$3511.99

$

Usually ships in 3-6 days

0

2

Exmark 3296-51

NUT-LOCK, NI

$6.49

$

In Stock, Qty 10

0

3

Exmark 109-9127

WHEEL & TIRE ASM

$341.99

$

In Stock, Qty 7

0

4

Exmark 3274-18

SCREW-HSH

$9.49

$

In Stock, Qty 7

0

5

Exmark 3218-2

NUT-JAM

$0.99

$

In Stock, Qty 20+

0

6

Exmark 1-543509

Cone-Bearing Tapered Roller

$13.99

$

In Stock, Qty 20+

0

7

Exmark 1-633508

WASHER-BELLVILLE

$3.49

$

In Stock, Qty 20+

0

8

Exmark 116-6707-01

116-8888
(Superseded to 116-8888)

$185.99

$

In Stock, Qty 8

0

10

Exmark 109-4995

ASM,FRONT FRAME SPRING

$110.99

$

Usually ships in 3-6 days

0

11

Exmark 3256-29

WASHER-FLAT

$2.99

$

Usually ships in 3-6 days

0

12

Exmark 32151-103

RING-RETAINING, EXT

$3.49

$

In Stock, Qty 7

0

13

Exmark 109-4488

ASM,Deck Lift Handle

$65.99

$

In Stock, only 1 left!

0

13:2

Exmark 1-633325

SPRING-COMPRESSION

$5.49

$

Usually ships in 3-6 days

0

13:3

Exmark 103-2084

LIFT LEVER/GRIP ASM

$77.99

$

Usually ships in 3-6 days

0

13:3:2

Exmark 1-633295

GRIP-LEVER, LIFT

$7.99

$

In Stock, only 3 left!

0

13:4

Exmark 109-4487

WLD,ARM DECK LIFT

$162.99

$

Usually ships in 3-6 days

0

13:5

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

13:6

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 16

0

14

Exmark 1-633068

ARM-LIFT, DECK

$11.99

$

Usually ships in 3-6 days

0

15

Exmark 103-1918

BUSHING

$7.99

$

In Stock, Qty 6

0

16

Exmark 323-29

SCREW-HH

$0.99

$

In Stock, Qty 7

0

17

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 16

0

18

Exmark 116-9122-01

PLATE-DECK LIFT NOTCHED O

$46.99

$

Usually ships in 3-6 days

0

19

Exmark 323-5

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

20

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

21

Exmark 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

22

Exmark 109-3193

Stop, Deck Height

$

$

Currently unavailable

23

Exmark 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

24

Exmark 1-633082

BUSHING-LEVER, LIFT

$11.99

$

Usually ships in 3-6 days

0

25

Exmark 116-5584

PIN-HOC

$5.49

$

In Stock, only 4 left!

0

26

Exmark 116-9124

PLATE-LIFT, DECK W/DECAL

$54.99

$

Usually ships in 3-6 days

0

26:2

Exmark 126-4664

DECAL-HEIGHT OF CUT

$11.99

$

Usually ships in 3-6 days

0

27

Exmark 109-1903

ASM, FLOORPAN FRONT W/DEC

$274.99

$

Usually ships in 3-6 days

0

27:2

Exmark 126-6574

DECAL, LAZER MODEL

$5.99

$

In Stock, only 2 left!

0

27:3

Exmark 132-0871

DECAL-DANGER

$9.49

$

In Stock, only 1 left!

0

28

Exmark 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

29

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

30

Exmark 109-1902

ASM, FLOORPAN LIFTOUT W/D

$191.99

$

Usually ships in 3-6 days

0

30:2

Exmark 126-4748

Decal-Guard

$

$

Currently unavailable

31

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

32

Exmark 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

33

Exmark 103-9792

DECK CHAIN ASM

$13.99

$

In Stock, only 1 left!

0

33:1

Exmark 1-633447

CHAIN-LIFT, DECK

$10.99

$

In Stock, Qty 16

0

33:2

Exmark 103-1898

SCREW-HH

$1.99

$

In Stock, Qty 20+

0

33:3

Exmark 32128-37

NUT-HF

$4.49

$

In Stock, Qty 18

0

35

Exmark 32128-37

NUT-HF

$4.49

$

In Stock, Qty 18

0

36

Exmark 126-4345

Decal-Patent Ttco.Com

$1.99

$

In Stock, Qty 9

0
