LZS88CDYM96RW0 - Exmark 96" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV88C (SN: 411294212 - 413950473) (Rev A) (2022) Center Deck Idler Assembly Parts Diagram

96" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV88C

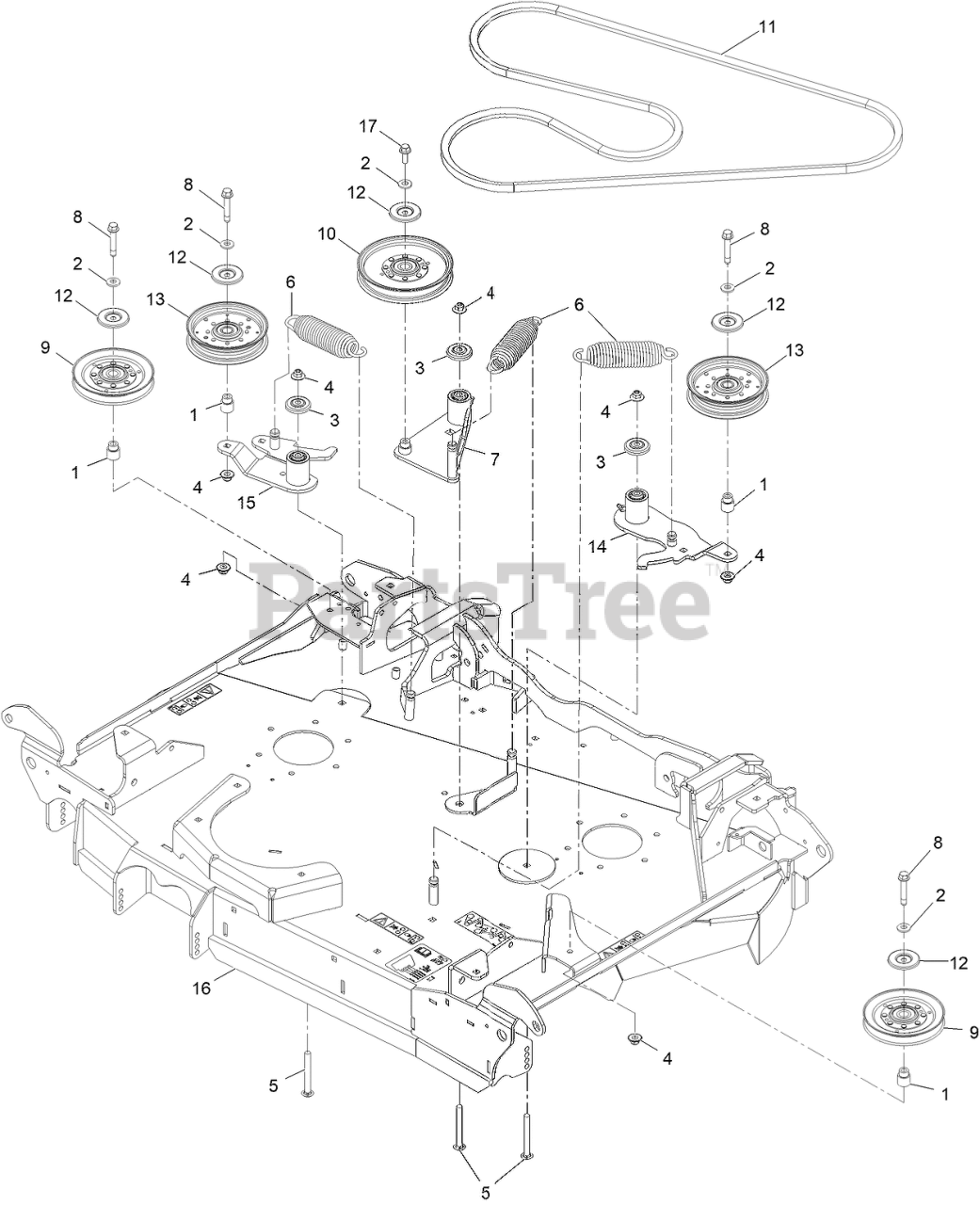

Center Deck Idler Assembly Parts Diagram

  • Title

1

Exmark 1-633456

BUSHING-IDLER

$5.49

$

In Stock, Qty 20+

0

2

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

3

Exmark 103-2916

GUARD-TOP

$2.99

$

In Stock, Qty 9

0

4

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

5

Exmark 116-1502

BOLT-SHOULDER, CARRIAGE 3/8-16 X 3 1/2

$7.99

$

In Stock, only 4 left!

0

6

Exmark 116-6317

SPRING-EXTENSION

$28.99

$

In Stock, Qty 7

0

7

Exmark 126-2585

IDLER ARM ASM

$174.99

$

In Stock, only 1 left!

0

8

Exmark 126-2956

SCREW-HHF

$6.49

$

In Stock, only 2 left!

0

9

Exmark 126-2960

IDLER-V

$64.99

$

In Stock, only 4 left!

0

10

Exmark 126-7685

IDLER-PULLEY

$62.99

$

In Stock, Qty 7

0

11

Exmark 126-7924

V-BELT

$119.99

$

In Stock, only 2 left!

0

12

Exmark 126-8043

SHIELD-DUST

$2.99

$

In Stock, only 3 left!

0

13

Exmark 126-9187

PULLEY-IDLER, FLAT

$60.99

$

In Stock, Qty 19

0

14

Exmark 126-9435

IDLER ASM

$164.99

$

Usually ships in 3-6 days

0

15

Exmark 126-9438

IDLER ASM

$164.99

$

Usually ships in 3-6 days

0

16

Exmark 135-1042

ASM-DECK, CTR 96/120

$2883.99

$

In Stock, only 1 left!

0

17

Exmark 3234-42

SCREW-HHF 3/8-16 X 1

$3.49

$

In Stock, Qty 20+

0
