LZS88CDYM96RW0 - Exmark 96" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV88C (SN: 408644346 - 411294211) (Rev A) (2021) Transmission Assembly (cont.) Center Section Assembly Parts Diagram

96" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV88C

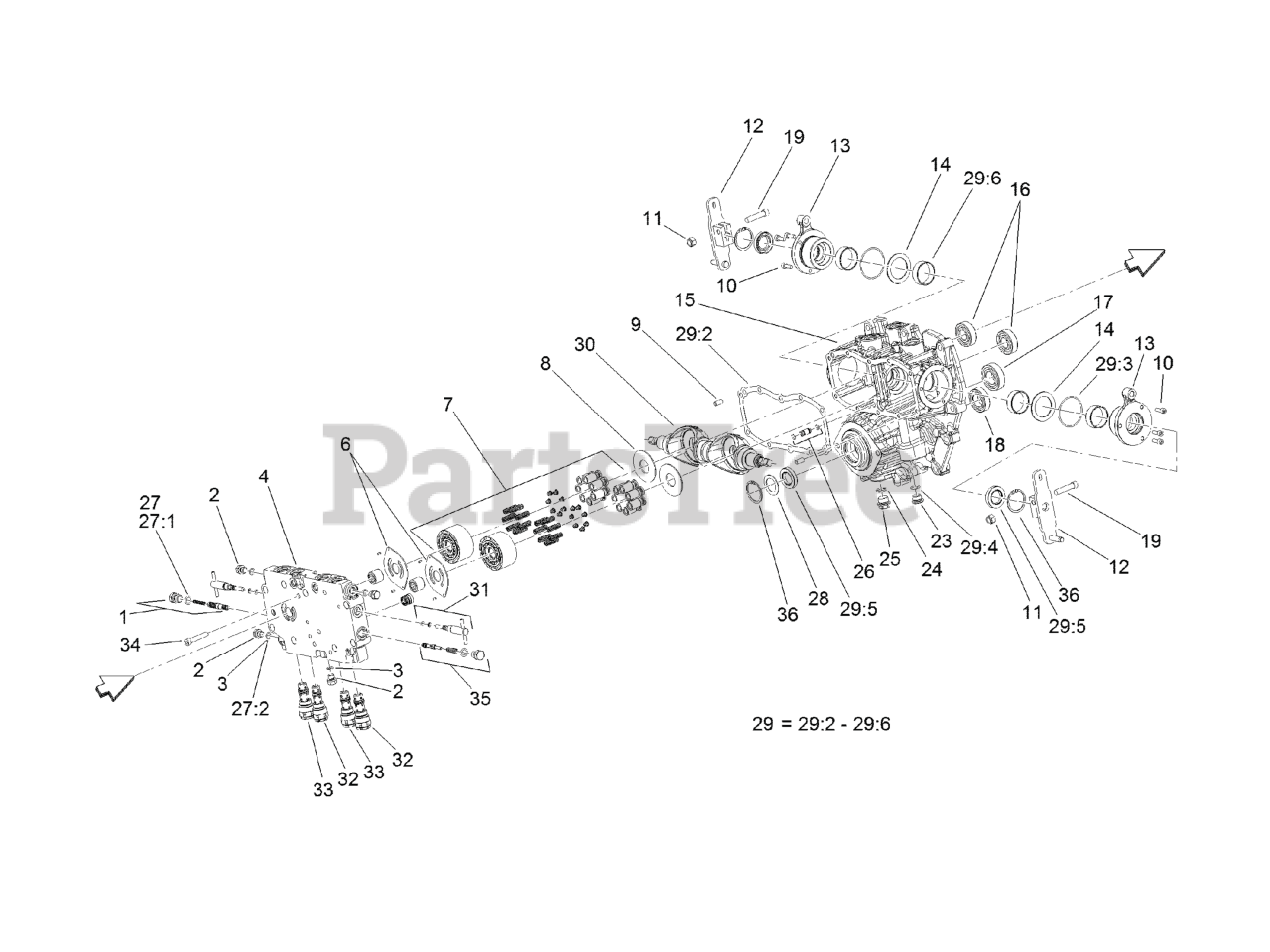

Transmission Assembly (cont.) Center Section Assembly Parts Diagram

  • Title

1

Exmark 107-0807

VALVE-FLUSHING, RH

$127.99

$

Usually ships in 3-6 days

0

2

Exmark 107-0857

PLUG

$38.99

$

Usually ships in 3-6 days

0

3

Exmark 107-0817

O RING-PLUG

$3.49

$

Usually ships in 3-6 days

0

4

Exmark 121-3377

CENTER CASE, COMPLETE

$3044.99

$

Usually ships in 3-6 days

0

6

Exmark 107-0805

PLATE-VALVE

$134.99

$

In Stock, only 2 left!

0

7

Exmark 107-0824

CYLINDER BLOCK ASM

$1300.99

$

Usually ships in 3-6 days

0

8

Exmark 107-0830

PLATE-THRUST

$82.99

$

In Stock, only 3 left!

0

9

Exmark 92-0765

PIN-PARALLEL

$3.99

$

Usually ships in 3-6 days

0

10

Exmark 107-0859

BOLT

$1.99

$

Usually ships in 3-6 days

0

11

Exmark 120-6681

U-NUT

$11.99

$

Usually ships in 3-6 days

0

12

Exmark 120-6680

ARM-CONTROL

$568.99

$

Usually ships in 3-6 days

0

13

Exmark 107-0832

SIDE COVER ASM

$436.99

$

Usually ships in 3-6 days

0

14

Exmark 107-0829

WASHER

$

$

Not available

15

Exmark 120-5151

PUMP HOUSING ASM

$3959.99

$

Usually ships in 3-6 days

0

16

Exmark 107-0826

BEARING

$36.99

$

Usually ships in 3-6 days

0

17

Exmark 107-0821

BEARING

$39.99

$

Usually ships in 3-6 days

0

18

Exmark 107-0838

BEARING

$67.99

$

Usually ships in 3-6 days

0

19

Exmark 120-6682

BOLT

$8.99

$

Usually ships in 3-6 days

0

23

Exmark 107-0861

PLUG-NPTF

$11.99

$

Usually ships in 3-6 days

0

24

Exmark 237-79

O-RING

$5.99

$

In Stock, Qty 7

0

25

Exmark 107-0867

PLUG

$14.99

$

Usually ships in 3-6 days

0

26

Exmark 107-0812

PIPE

$120.99

$

Usually ships in 3-6 days

0

27

Exmark 107-0852

CENTER CASE SEAL KIT

$13.99

$

Usually ships in 3-6 days

0

27:1

Exmark 93-0418

O-RING

$7.99

$

In Stock, only 3 left!

0

27:2

Exmark 107-0817

O RING-PLUG

$3.49

$

Usually ships in 3-6 days

0

28

Exmark 107-0813

SPACER

$10.99

$

Usually ships in 3-6 days

0

29

Exmark 107-0853

PUMP HOUSING SEAL KIT

$221.99

$

Usually ships in 3-6 days

0

29:2

Exmark 107-0810

GASKET-CASE, CENTER

$22.99

$

Usually ships in 3-6 days

0

29:3

Exmark 107-0817

O RING-PLUG

$3.49

$

Usually ships in 3-6 days

0

29:4

Exmark 104-3298

Packing

$

$

Not available

29:5

Exmark 107-0814

SEAL

$52.99

$

In Stock, only 2 left!

0

29:6

Exmark 107-0825

RING-SEAL

$26.99

$

In Stock, only 2 left!

0

30

Exmark 120-6679

PLATE-SWASH

$866.99

$

Usually ships in 3-6 days

0

31

Exmark 107-0808

VALVE-BYPASS

$85.99

$

Usually ships in 3-6 days

0

32

Exmark 107-0804

VALVE-REAR

$443.99

$

Usually ships in 3-6 days

0

33

Exmark 107-0803

VALVE-FRONT

$443.99

$

Usually ships in 3-6 days

0

34

Exmark 107-0863

BOLT

$3.99

$

Usually ships in 3-6 days

0

35

Exmark 107-0806

VALVE-FLUSHING, LH

$127.99

$

Usually ships in 3-6 days

0

36

Exmark 92-0757

RING-SNAP

$7.99

$

Usually ships in 3-6 days

0
