LZS88CDYM96RW0 - Exmark 96" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV88C (SN: 408644346 - 411294211) (Rev A) (2021) Main Frame Assembly Parts Diagram

96" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV88C

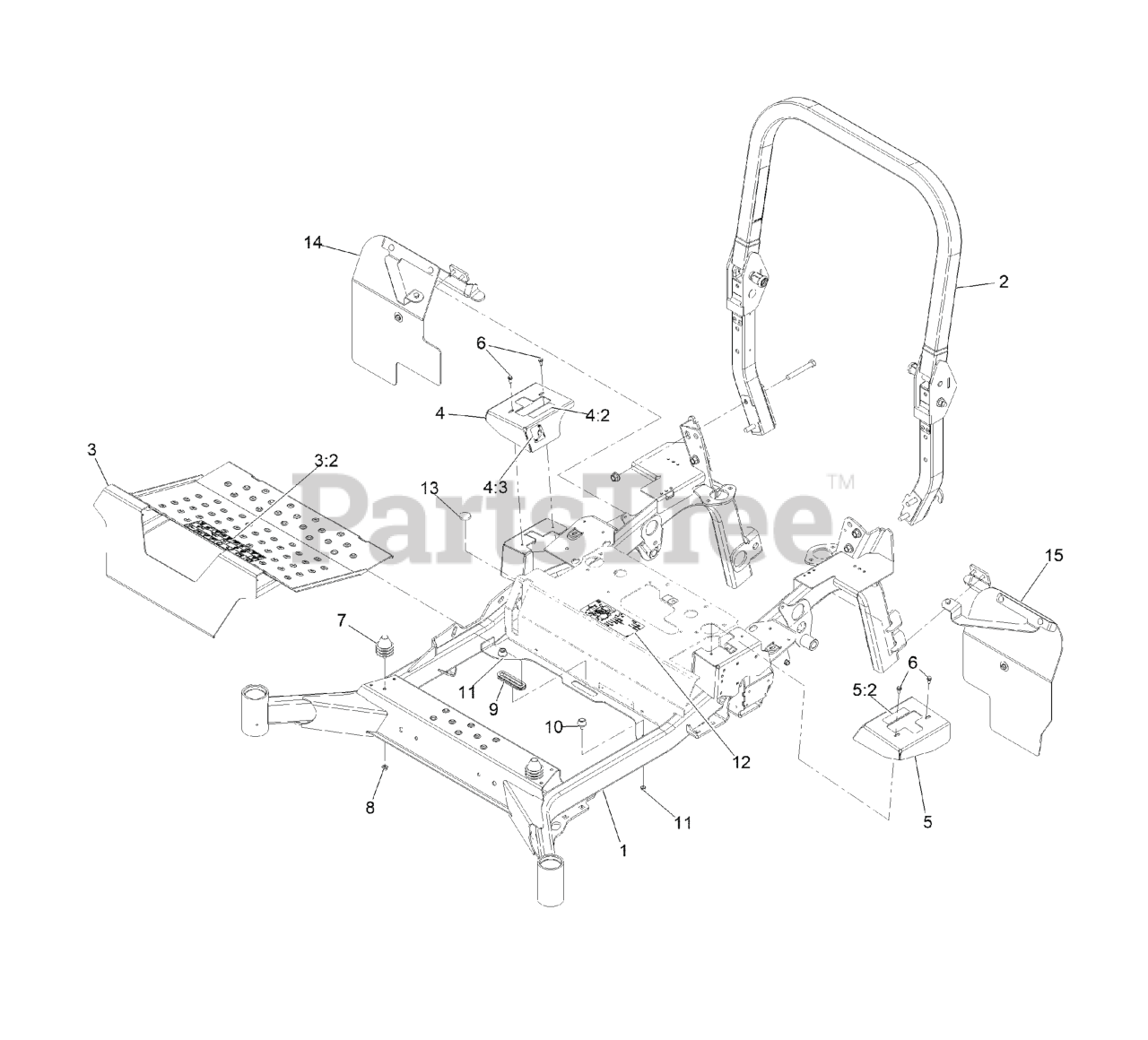

Main Frame Assembly Parts Diagram

  • Title

1

Exmark 126-7749-01

Frame-Main
(Superseded to 142-6829)

$2650.99

$

Usually ships in 3-6 days

0

2

Exmark 135-5786

ROPS ASM

$698.99

$

Usually ships in 3-6 days

0

3

Exmark 126-9066

PAN-FLOOR

$348.99

$

Usually ships in 3-6 days

0

3:2

Exmark 126-8383

DECAL-DANGER

$8.99

$

In Stock, only 1 left!

0

4

Exmark 126-1831

COVER-MOTION CONTROL, RH

$70.99

$

Usually ships in 3-6 days

0

4:2

Exmark 99-8936

DECAL-CONTROL, MOTION

$22.99

$

In Stock, only 2 left!

0

4:3

Exmark 116-5988

DECAL-PARK BRAKE, CE

$14.99

$

In Stock, only 1 left!

0

5

Exmark 126-1821

COVER-MOTION CONTROL, LH

$58.99

$

Usually ships in 3-6 days

0

5:2

Exmark 99-8936

DECAL-CONTROL, MOTION

$22.99

$

In Stock, only 2 left!

0

6

Exmark 32144-10

SCREW-HWH

$4.99

$

In Stock, Qty 7

0

7

Exmark 126-5491

ISOLATOR

$19.99

$

Usually ships in 3-6 days

0

8

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

9

Exmark 126-7065

GROMMET-RUBBER

$5.49

$

Usually ships in 3-6 days

0

10

Exmark 109-2365

BUMPER-RUBBER

$5.49

$

In Stock, only 3 left!

0

11

Exmark 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

12

Exmark 126-9947

DECAL-SERVICE AID

$14.99

$

Usually ships in 3-6 days

0

13

Exmark 109-9233

BUMPER-PUSH-IN, RUBBER

$5.49

$

In Stock, Qty 17

0

14

Exmark 135-4933

ASM, RH Mud Flap

$221.99

$

Usually ships in 3-6 days

0

15

Exmark 135-4943

ASM, LH Mud Flap

$221.99

$

Usually ships in 3-6 days

0
