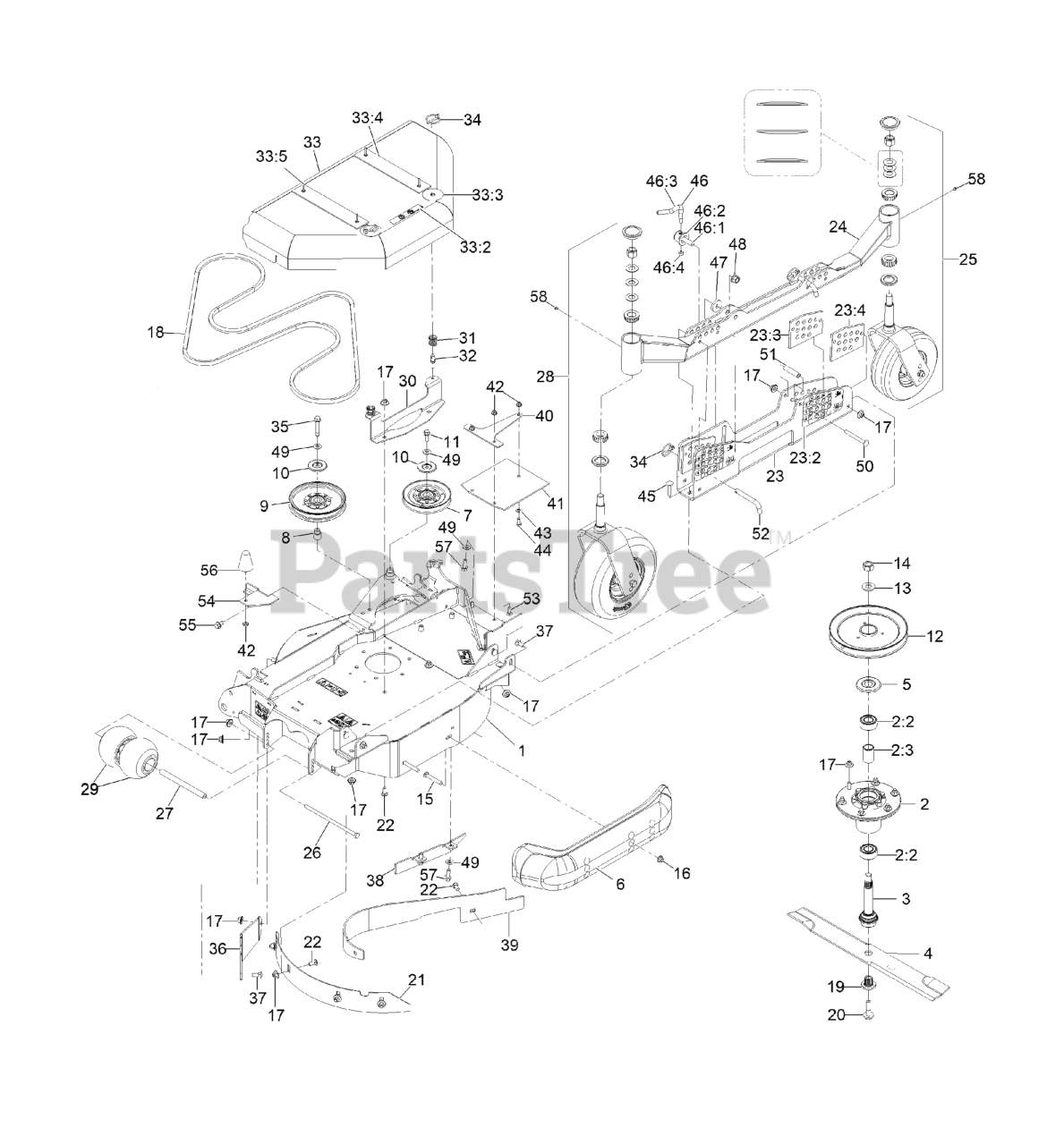

LZS88CDYM96RW0 - Exmark 96" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV88C (SN: 408644346 - 411294211) (Rev A) (2021) LH Wing Deck Assembly Parts Diagram

96" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV88C

LH Wing Deck Assembly Parts Diagram

  • Title

1

Exmark 142-5473

ASM-DECK, LH WING 96

$2072.99

$

Usually ships in 3-6 days

0

2

Exmark 135-3437

ASM-CUTTER HSG

$170.99

$

In Stock, only 2 left!

0

2:2

Exmark 135-3144

BEARING-3205 TRASHGUARD
(Superseded to 134-6634)

$31.99

$

Usually ships in 3-6 days

0

2:3

Exmark 135-3440

SPACER-BEARING

$8.49

$

In Stock, only 2 left!

0

3

Exmark 116-3341

ASM-SPINDLE AND SEAL

$89.99

$

In Stock, Qty 9

0

4

Exmark 103-6389

USE 103-6389-S
(Superseded to 103-6389-S)

$38.99

$

In Stock, Qty 6

0

5

Exmark 103-1330

GUARD-BEARING, TOP

$5.49

$

In Stock, only 2 left!

0

6

Exmark 112-1479

SKID-BUMPER, DECK

$101.99

$

Usually ships in 3-6 days

0

7

Exmark 126-2960

IDLER-V

$64.99

$

In Stock, only 4 left!

0

8

Exmark 1-633456

BUSHING-IDLER

$5.49

$

In Stock, Qty 20+

0

9

Exmark 126-7685

IDLER-PULLEY

$62.99

$

In Stock, Qty 7

0

10

Exmark 126-8043

SHIELD-DUST

$2.99

$

In Stock, only 3 left!

0

11

Exmark 3234-42

SCREW-HHF 3/8-16 X 1

$3.49

$

In Stock, Qty 20+

0

12

Exmark 126-6635

SHEAVE-SINGLE 96RD

$123.99

$

In Stock, only 4 left!

0

13

Exmark 103-2802

WASHER

$5.49

$

In Stock, Qty 14

0

14

Exmark 116-7306

NUT-HEX

Note: Torque to 130-160 ft-lb

$2.99

$

In Stock, Qty 9

0

15

Exmark 3231-31

SCREW-CARR

$6.99

$

In Stock, Qty 20+

0

16

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

17

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

18

Exmark 126-6442

BELT-V

$123.99

$

In Stock, only 4 left!

0

19

Exmark 103-3037

BUSHING,SPLINED

$22.99

$

In Stock, Qty 20+

0

20

Exmark 109-9220

SCREW,SEMS 1/2-20 X 2.19

Note: Torque to 50-60 ft-lb

$8.49

$

In Stock, Qty 20+

0

21

Exmark 135-2459-01

BAFFLE-DEPTH, LH

$34.99

$

Usually ships in 3-6 days

0

22

Exmark 3231-12

BOLT-CARR

$6.49

$

In Stock, only 3 left!

0

23

Exmark 135-2433

LH HOC CHANNEL ASM

$678.99

$

Usually ships in 3-6 days

0

23:2

Exmark 126-8597

DECAL-HEIGHT OF CUT-LH

$14.99

$

Usually ships in 3-6 days

0

23:3

Exmark 135-2422

PLATE-GUIDE, HOC (LH)

$78.99

$

In Stock, Qty 5

0

23:4

Exmark 135-2423

PLATE-GUIDE, HOC (RH)

$78.99

$

In Stock, Qty 5

0

24

Exmark 135-2436-01

TUBE-HOC, LH

$485.99

$

Usually ships in 3-6 days

0

25

Caster/Wheel ASM

Note: Not serviced separately

$

$

Not available

26

Exmark 99-7203

SCREW-HH

$9.99

$

In Stock, Qty 10

0

27

Exmark 126-6115

SPACER-WHEEL

$11.99

$

In Stock, Qty 18

0

28

ASM-Caster,11"tire

Note: Not serviced separately

$

$

Not available

29

Exmark 103-8415

ROLLER-SCALP, ANTI

$23.99

$

In Stock, Qty 5

0

30

Exmark 135-2653-03

BRACKET-SHIELD MOUNT, OUT

$24.99

$

Usually ships in 3-6 days

0

31

Exmark 126-1503

SPRING

$2.99

$

In Stock, only 1 left!

0

32

Exmark 135-7455

PIN, SPRING

$5.49

$

Usually ships in 3-6 days

0

33

Exmark 135-6170

ASM-Wing Shield LH

$315.99

$

Usually ships in 3-6 days

0

33:2

Exmark 93-6687

DECAL-NO STEP

$18.99

$

Usually ships in 3-6 days

0

33:3

Exmark 135-3165

DECAL-SCRATCH COVER

$3.49

$

Usually ships in 3-6 days

0

33:4

Exmark 135-6706

Plate-Uhmw 2"

$31.99

$

Usually ships in 3-6 days

0

33:5

Exmark 133-7130

Rivet-Pop

$1.49

$

Usually ships in 3-6 days

0

34

Exmark 92-1298

PIN-LYNCH

$3.99

$

In Stock, Qty 20+

0

35

Exmark 126-2956

SCREW-HHF

$6.49

$

In Stock, only 2 left!

0

36

Exmark 126-9757-01

PLATE-FILL, LH DECK

$25.99

$

Usually ships in 3-6 days

0

37

Exmark 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 12

0

38

Exmark 135-1824-01

Fin-Baffle, Discharge Wing (LH)

$22.99

$

Usually ships in 3-6 days

0

39

Exmark 135-0794-01

BAFFLE-DOGLEG, CENTER (RH

$70.99

$

In Stock, only 1 left!

0

40

Exmark 135-0618-03

SUPPORT-FLAP, LH

$11.99

$

Usually ships in 3-6 days

0

41

Exmark 135-1849

GUARD-TIRE, LH

$15.99

$

Usually ships in 3-6 days

0

42

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

43

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

44

Exmark 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

45

Exmark 3231-5

SCREW-CARR

$1.49

$

In Stock, only 2 left!

0

46

Exmark 107-1664

LEVER ASM

$75.99

$

Usually ships in 3-6 days

0

46:1

Exmark 106-3239

SCREW-LOCK

$52.99

$

Usually ships in 3-6 days

0

46:2

Exmark 107-1644

CAP-LOCK

$38.99

$

In Stock, only 2 left!

0

46:3

Exmark 106-3241

107-1664
(Superseded to 107-1664)

$75.99

$

Usually ships in 3-6 days

0

46:4

Exmark 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

47

Exmark 30-8770

WASHER

$11.99

$

In Stock, only 2 left!

0

48

Exmark 99-5107

Nut-Lock 1/2-13

$1.99

$

In Stock, Qty 20+

0

49

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

50

Exmark 3231-11

SCREW-CARR

$5.49

$

In Stock, only 2 left!

0

51

Exmark 135-2424

SPACER

$15.99

$

Usually ships in 3-6 days

0

52

Exmark 135-2073

PIN-HOC

$27.99

$

In Stock, Qty 13

0

53

Exmark 3230-10

BOLT-CARR

$3.99

$

Usually ships in 3-6 days

0

54

Exmark 135-2611-01

BRACKET-COVER RETAINER

$17.99

$

Usually ships in 3-6 days

0

55

Exmark 110-9380

SCREW-HWH

$2.99

$

In Stock, Qty 8

0

56

Exmark 114-1925

BUMPER-RUBBER

$26.99

$

In Stock, only 1 left!

0

57

Exmark 3234-11

SCREW-HHF

$4.49

$

In Stock, Qty 20+

0

58

Exmark 1-811010

PLUG

$5.49

$

In Stock, Qty 11

0
