LZS88CDYM96RW0 - Exmark 96" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV88C (SN: 408644346 - 411294211) (Rev A) (2021) Gear Housing Assembly Parts Diagram

96" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV88C

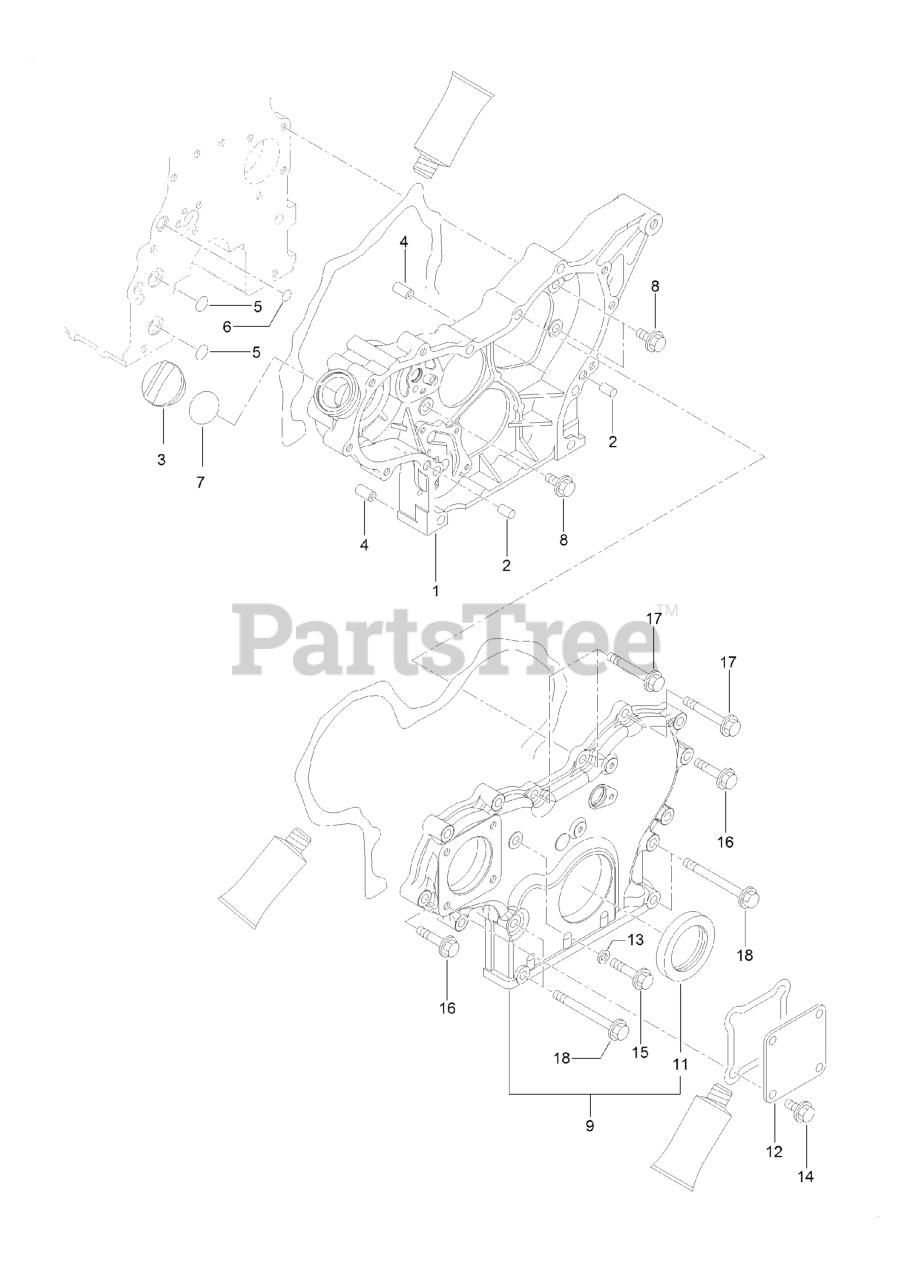

Gear Housing Assembly Parts Diagram

  • Title

1

Exmark 127-3023

Case-Gear

$689.99

$

Usually ships in 3-6 days

0

2

Exmark 125-6995

PIN

$6.99

$

Usually ships in 3-6 days

0

3

Exmark 125-6972

COVER-FILLER

$12.99

$

Usually ships in 3-6 days

0

4

Exmark 125-7107

PIPE

$8.99

$

Usually ships in 3-6 days

0

5

Exmark 125-6909

O-RING

$2.99

$

Usually ships in 3-6 days

0

6

Exmark 127-2973

O-RING

$3.49

$

Usually ships in 3-6 days

0

7

Exmark 125-7197

O-RING

$2.99

$

In Stock, only 1 left!

0

8

Exmark 100-6928

BOLT
(Superseded to 125-7214)

$4.99

$

Usually ships in 3-6 days

0

9

Exmark 127-3024

GEARCASE COVER ASM

$508.99

$

Usually ships in 3-6 days

0

11

Exmark 125-6944

SEAL-OIL

$35.99

$

Usually ships in 3-6 days

0

12

Exmark 125-6977

COVER

$8.99

$

Usually ships in 3-6 days

0

13

Exmark 125-7174

WASHER-SEAL

$6.99

$

Usually ships in 3-6 days

0

14

Exmark 100-6928

BOLT
(Superseded to 125-7214)

$4.99

$

Usually ships in 3-6 days

0

15

Exmark 125-7217

BOLT

$5.49

$

Usually ships in 3-6 days

0

16

Exmark 125-7218

BOLT

$4.49

$

Usually ships in 3-6 days

0

17

Exmark 125-7222

BOLT

$5.99

$

Usually ships in 3-6 days

0

18

Exmark 125-7224

BOLT

$4.99

$

Usually ships in 3-6 days

0
