LZS88CDYM96RW0 - Exmark 96" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV88C (SN: 408644346 - 411294211) (Rev A) (2021) Discharge Tunnel Assembly Parts Diagram

96" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV88C

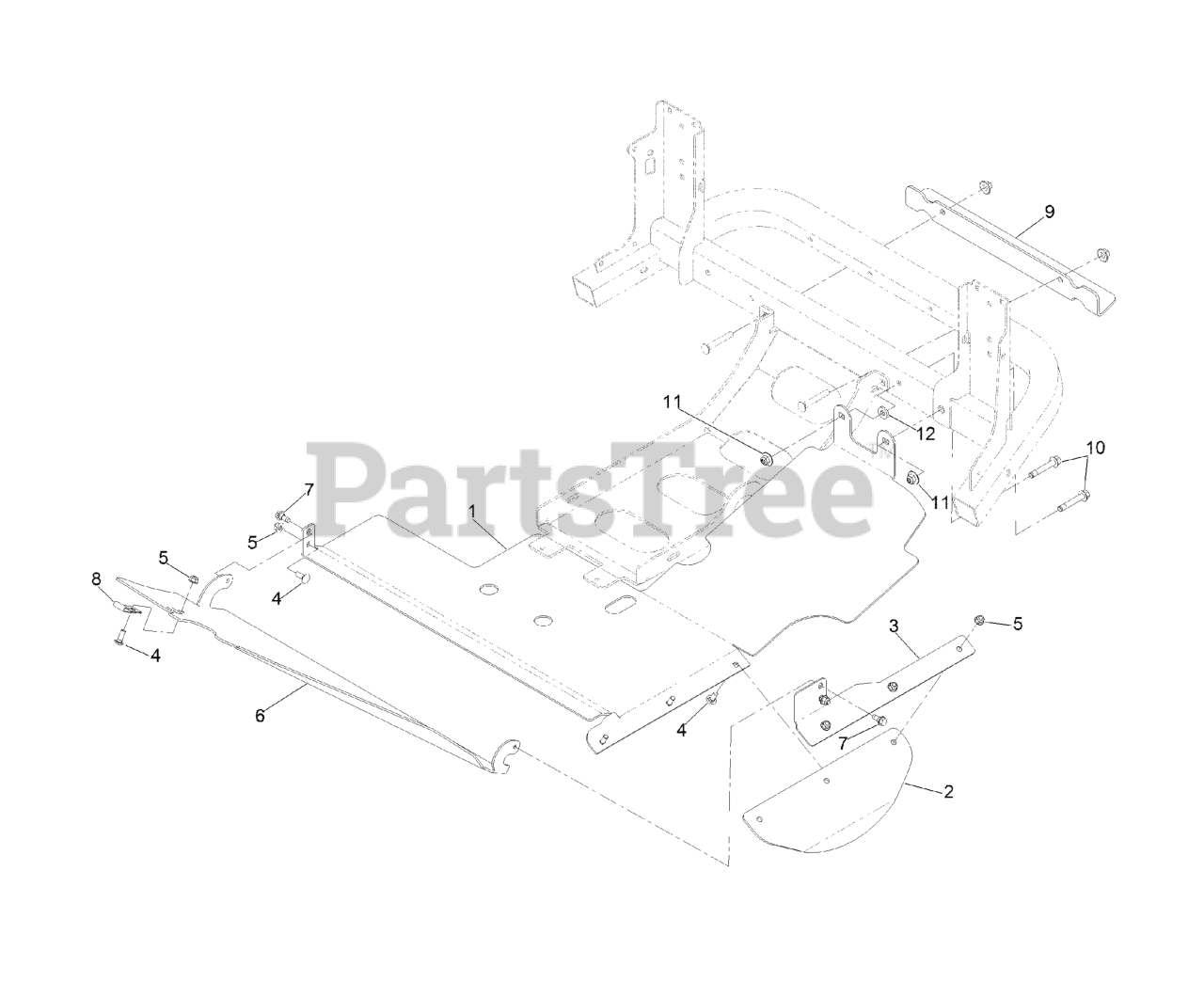

Discharge Tunnel Assembly Parts Diagram

  • Title
1

Exmark 135-2089-03

PLATE-DISCHARGE

$193.99

$

Usually ships in 3-6 days

0

2

Exmark 135-0050

FLAP-RUBBER

$19.99

$

Usually ships in 3-6 days

0

3

Exmark 135-2090-03

BRACKET-FLAP, LH

$20.99

$

Usually ships in 3-6 days

0

4

Exmark 3230-16

SCREW-CARR

$2.99

$

In Stock, Qty 20+

0

5

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

6

Exmark 135-2617-03

PANEL-DISCHARGE

$69.99

$

Usually ships in 3-6 days

0

7

Exmark 126-4424

SCREW-SHOULDER

$2.99

$

In Stock, Qty 8

0

8

Exmark 135-0608

BEARING-STRAP, NYLON

$5.49

$

In Stock, only 4 left!

0

9

Exmark 135-2092-03

BRACKET-TIE DOWN

$37.99

$

Usually ships in 3-6 days

0

10

Exmark 126-2956

SCREW-HHF

$6.49

$

In Stock, only 2 left!

0

11

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

12

$5.49

$

In Stock, Qty 20+

0
