LZS88CDYM96RW0 - Exmark 96" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV88C (SN: 408644346 - 411294211) (Rev A) (2021) Cylinder Block Assembly Parts Diagram

96" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV88C

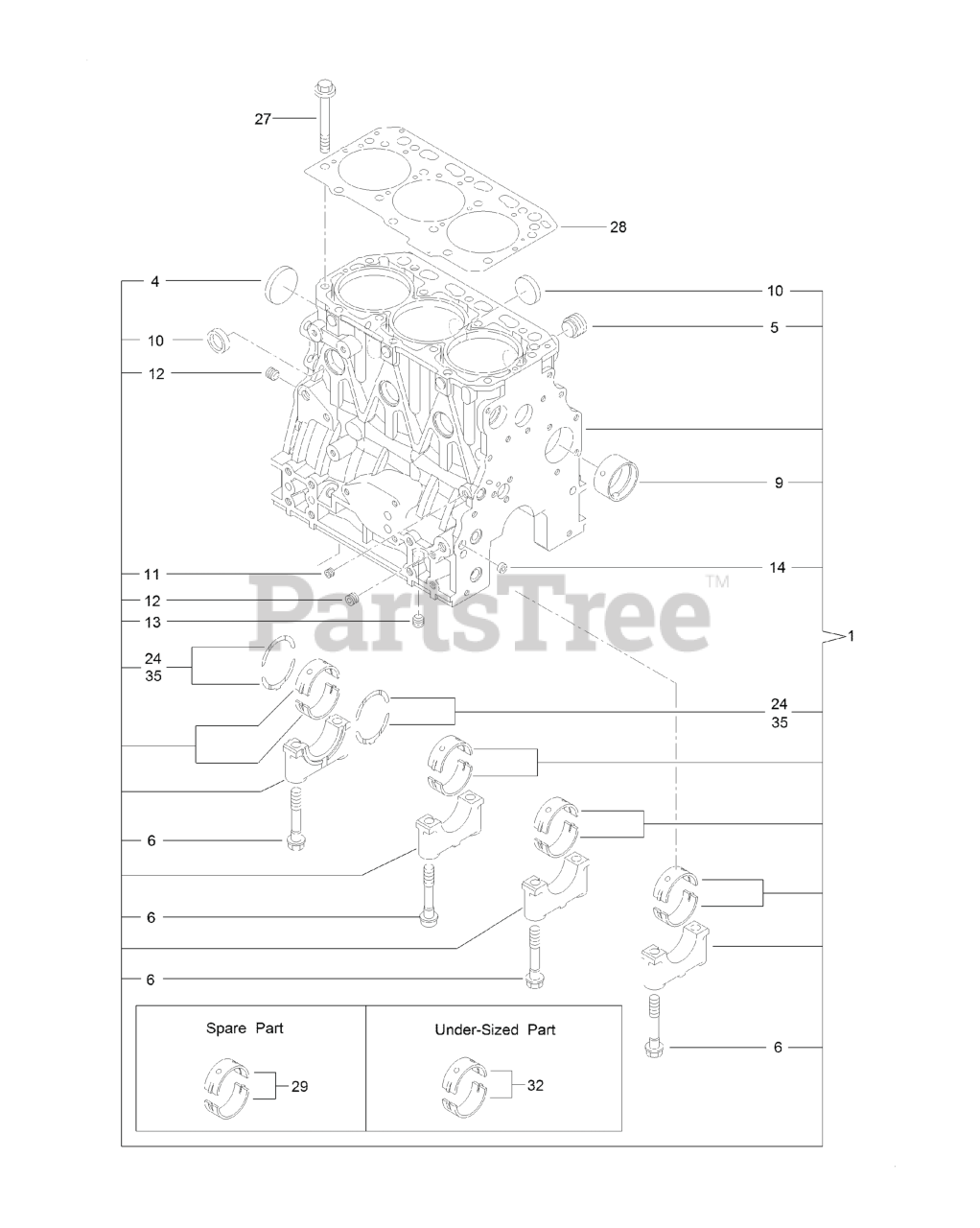

Cylinder Block Assembly Parts Diagram

  • Title

1

Exmark 127-4717

CYLINDER BLOCK ASM

$4823.99

$

Usually ships in 3-6 days

0

4

Exmark 125-6980

PLUG

$5.99

$

Usually ships in 3-6 days

0

5

Exmark 125-7170

PLUG

$15.99

$

Usually ships in 3-6 days

0

6

Exmark 125-7007

BOLT

$39.99

$

Usually ships in 3-6 days

0

9

Exmark 125-7108

BUSHING

$47.99

$

In Stock, only 1 left!

0

10

Exmark 125-7239

PLUG

$15.99

$

Usually ships in 3-6 days

0

11

Exmark 125-6969

PLUG

$2.99

$

Usually ships in 3-6 days

0

12

Exmark 125-6973

PLUG

$2.99

$

Usually ships in 3-6 days

0

13

Exmark 125-6973

PLUG

$2.99

$

Usually ships in 3-6 days

0

14

Exmark 125-7237

PLUG

$2.49

$

Usually ships in 3-6 days

0

24

Exmark 125-7010

METAL-THRUST

$10.99

$

In Stock, only 2 left!

0

27

Exmark 125-7006

BOLT

$39.99

$

Usually ships in 3-6 days

0

28

Exmark 127-4716

HEAD GASKET ASM

$81.99

$

Usually ships in 3-6 days

0

29

Exmark 125-6981

METAL-MAIN

$41.99

$

Usually ships in 3-6 days

0

32

Exmark 125-7009

METAL-MAIN (0.25)

$32.99

$

Usually ships in 3-6 days

0

35

Exmark 125-7011

METAL-THRUST (0.25)

$31.99

$

Usually ships in 3-6 days

0
