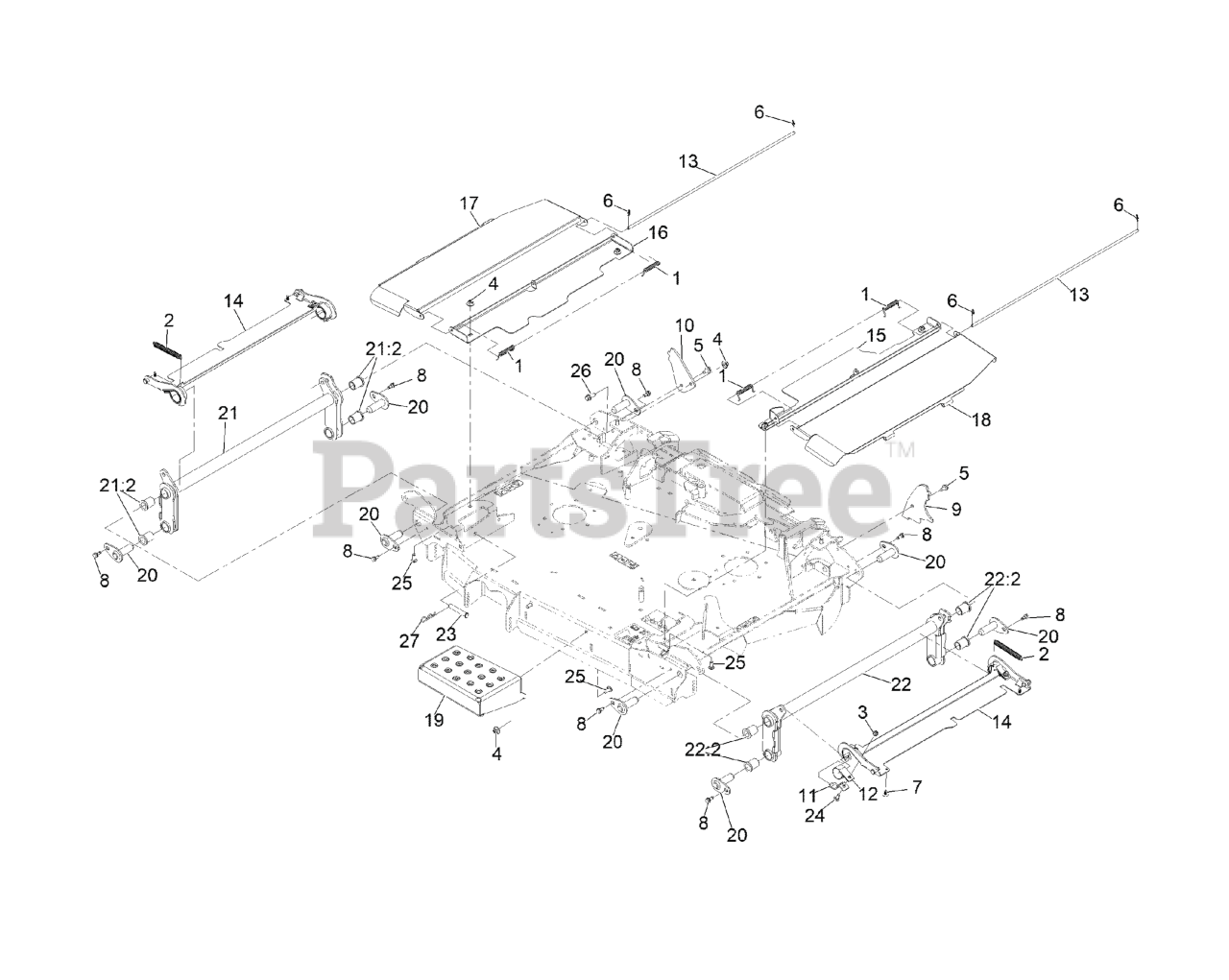

LZS88CDYM96RW0 - Exmark 96" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV88C (SN: 408644346 - 411294211) (Rev A) (2021) Center Deck Guard Assembly Parts Diagram

96" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV88C

Center Deck Guard Assembly Parts Diagram

  • Title
1

Exmark 99-5293

SPRING-TORSION

$10.99

$

In Stock, Qty 20+

0

2

$6.49

$

Usually ships in 3-6 days

0

3

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

4

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

5

Exmark 110-9380

SCREW-HWH

$2.99

$

In Stock, Qty 6

0

6

Exmark 116-6639

PIN-COTTER, LOCKING

$1.49

$

In Stock, Qty 10

0

7

Exmark 117-2382

PLUG-PLASTIC

$0.99

$

In Stock, Qty 20+

0

8

Exmark 126-4424

SCREW-SHOULDER

$2.99

$

In Stock, Qty 20+

0

9

Exmark 135-2628-01

BRACKET-DECK STOP, LH

$22.99

$

Usually ships in 3-6 days

0

10

Exmark 135-2629-01

BRACKET-DECK STOP, RH

$22.99

$

Usually ships in 3-6 days

0

11

Exmark 126-9764

PLATE-RETAINER, BEARING

$13.99

$

Usually ships in 3-6 days

0

12

Exmark 135-0584

BEARING-STRAP, NYLON

$6.49

$

Usually ships in 3-6 days

0

13

Exmark 135-1023

COVER-ROD, PIVOT

$37.99

$

Usually ships in 3-6 days

0

14

Exmark 135-2630-01

COVER-WING

$198.99

$

Usually ships in 3-6 days

0

15

Exmark 135-2651-01

SHIELD-CENTER, LH

$70.99

$

Usually ships in 3-6 days

0

16

Exmark 135-2652-01

SHIELD-CENTER, RH

$59.99

$

Usually ships in 3-6 days

0

17

Exmark 135-6174-03

Panel-Shield Hinge, LH

$96.99

$

Usually ships in 3-6 days

0

18

Exmark 135-6178-03

Shield-Center, RH

$96.99

$

Usually ships in 3-6 days

0

19

Exmark 135-6903-01

Panel-Step

$74.99

$

Usually ships in 3-6 days

0

20

Exmark 142-4813

ASM-DECK PIN

$24.99

$

In Stock, Qty 20+

0

21

Exmark 142-5423

ASM-FOLS ARM, RH

$440.99

$

Usually ships in 3-6 days

0

21:2

Exmark 142-4794

BUSHING-FLANGED

$16.99

$

In Stock, Qty 20+

0

22

Exmark 142-5424

ASM-FOLD ARM, LH

$440.99

$

Usually ships in 3-6 days

0

22:2

Exmark 142-4794

BUSHING-FLANGED

$16.99

$

In Stock, Qty 20+

0

23

Exmark 283-55

PIN-CLEVIS

$11.99

$

In Stock, Qty 5

0

24

Exmark 3230-16

SCREW-CARR

$2.99

$

In Stock, Qty 16

0

25

Exmark 3231-12

BOLT-CARR

$6.49

$

In Stock, only 3 left!

0

26

Exmark 3234-42

SCREW-HHF 3/8-16 X 1

$3.49

$

In Stock, Qty 20+

0

27

Exmark 3290-355

PIN-HAIR

$2.49

$

In Stock, Qty 20+

0
