LZS88CDYM96RW0 - Exmark 96" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV88C (SN: 406294345 - 408644345) (Rev A) (2020) Transmission Assembly (cont.) Charge Pump Housing Assembly Parts Diagram

96" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV88C

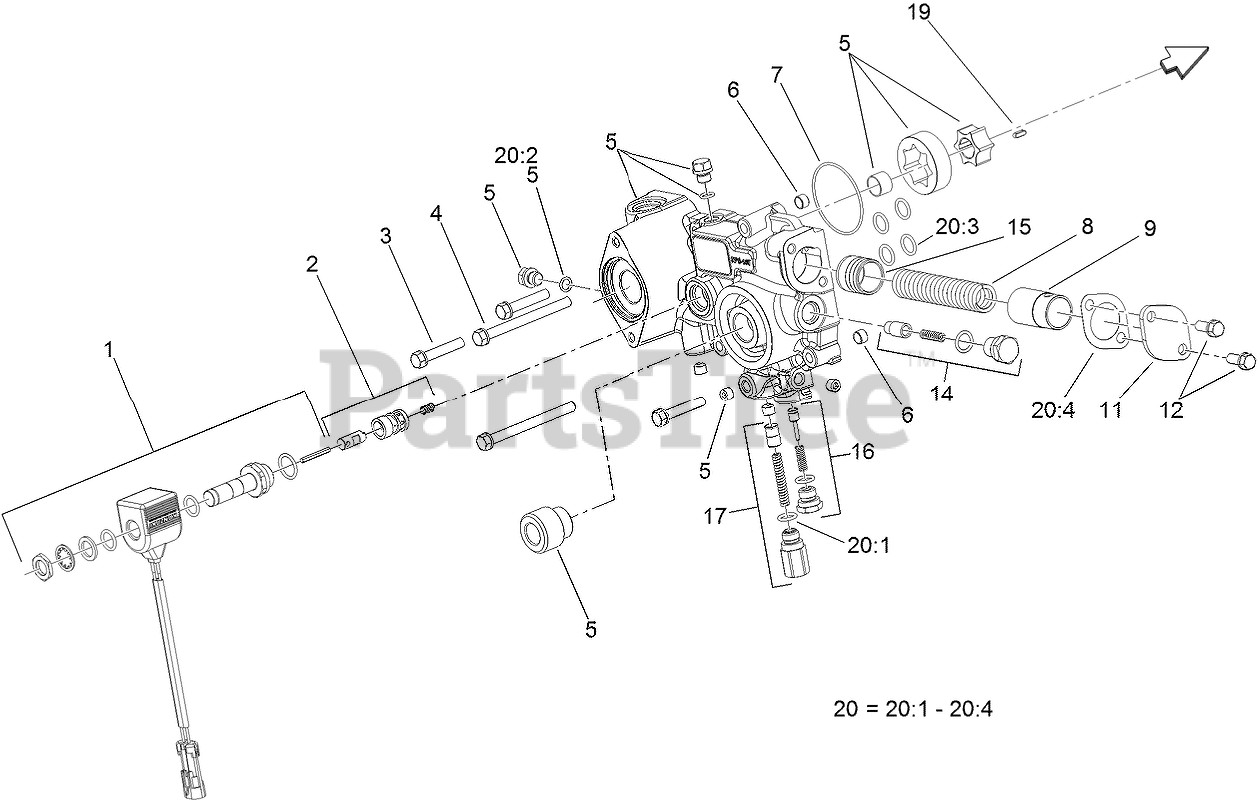

Transmission Assembly (cont.) Charge Pump Housing Assembly Parts Diagram

  • Title

1

Exmark 107-0851

SOLENOID ASM

$523.99

$

In Stock, only 1 left!

0

2

Exmark 107-0850

SOLENOID VALVE ASM

$152.99

$

Usually ships in 3-6 days

0

3

Exmark 107-0863

BOLT

$4.49

$

Usually ships in 3-6 days

0

4

Exmark 107-0864

BOLT

$4.99

$

Usually ships in 3-6 days

0

5

Exmark 107-0840

PUMP BODY ASM

$1130.99

$

Usually ships in 3-6 days

0

6

Exmark 107-0848

PIN

$6.49

$

Usually ships in 3-6 days

0

7

Exmark 107-0856

O-RING

$5.49

$

Usually ships in 3-6 days

0

8

Exmark 107-0845

SPRING

$57.99

$

Usually ships in 3-6 days

0

9

Exmark 107-0844

Collar

$69.99

$

Usually ships in 3-6 days

0

11

Exmark 107-0846

Cover

$

$

Currently unavailable

12

Exmark 93-0457

BOLT AND WASHER ASM

$5.49

$

In Stock, only 1 left!

0

14

Exmark 107-0843

FILTER BYPASS VALVE ASM

$122.99

$

Usually ships in 3-6 days

0

15

Exmark 107-0818

PISTON

$299.99

$

Usually ships in 3-6 days

0

16

Exmark 107-0842

CHARGE RELIEF VALVE ASM

$57.99

$

Usually ships in 3-6 days

0

17

Exmark 107-0841

PRESSURE VALVE ASM

$75.99

$

Usually ships in 3-6 days

0

19

Exmark 107-0865

KEY

$8.49

$

Usually ships in 3-6 days

0

20

Exmark 107-0855

CHARGE PUMP SEAL KIT

$22.99

$

Usually ships in 3-6 days

0

20:1

Exmark 93-0418

O-RING

$7.99

$

In Stock, only 3 left!

0

20:2

Exmark 107-0817

O RING-PLUG

$3.49

$

Usually ships in 3-6 days

0

20:3

Exmark 104-3298

Packing

$

$

Not available

20:4

Exmark 107-0847

GASKET

$6.99

$

In Stock, only 2 left!

0
