LZS88CDYM96RW0 - Exmark 96" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV88C (SN: 406294345 - 408644345) (Rev A) (2020) Generator Assembly Parts Diagram

96" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV88C

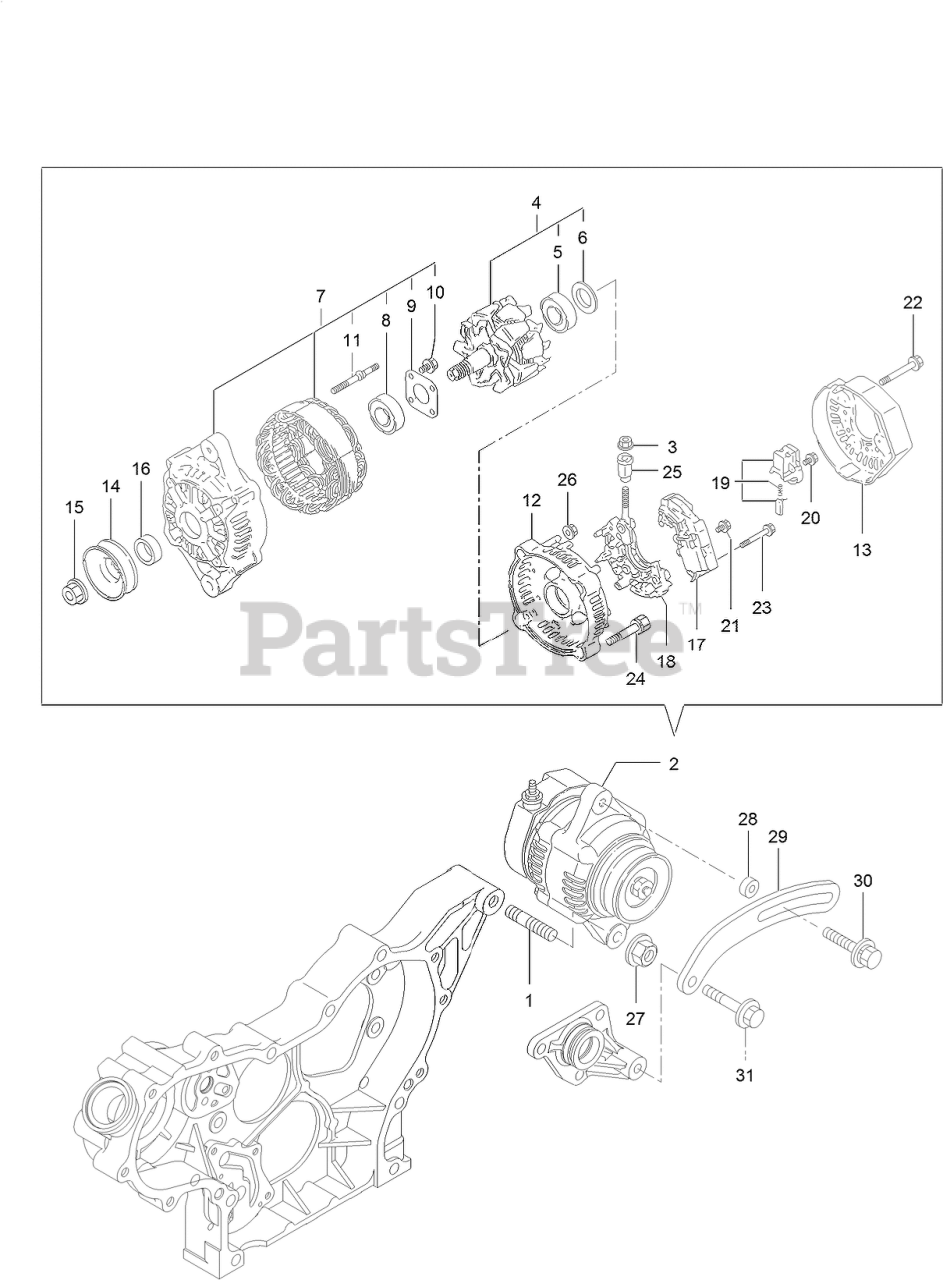

Generator Assembly Parts Diagram

  • Title

1

Exmark 127-3011

STUD

$10.99

$

Usually ships in 3-6 days

0

2

Exmark 135-4278

ALTERNATOR

$1271.99

$

Usually ships in 3-6 days

0

3

Exmark 127-3190

NUT

$5.99

$

Usually ships in 3-6 days

0

4

Exmark 127-3843

Rotor ASM

$

$

Currently unavailable

5

Exmark 127-2983

BEARING-BALL

$31.99

$

Usually ships in 3-6 days

0

6

Exmark 127-2962

Cover

$

$

Currently unavailable

7

Exmark 135-4025

FRAME ASM

$889.99

$

Usually ships in 3-6 days

0

8

Exmark 127-2958

BEARING-BALL

$31.99

$

Usually ships in 3-6 days

0

9

Exmark 127-2959

Plate-Retainer

$

$

Currently unavailable

10

Exmark 127-2960

Screw

$

$

Currently unavailable

11

Exmark 127-2961

Stud

$

$

Currently unavailable

12

Exmark 127-3845

Frame

$

$

Currently unavailable

13

Exmark 127-3846

Cover

$

$

Currently unavailable

14

Exmark 127-2954

PULLEY

$74.99

$

Usually ships in 3-6 days

0

15

Exmark 127-2955

Nut

$

$

Currently unavailable

16

Exmark 127-2957

Collar

$17.99

$

Usually ships in 0 days

0

17

Exmark 135-4026

REGULATOR ASM
(Superseded to 135-4278)

$1271.99

$

Usually ships in 3-6 days

0

18

Exmark 127-3848

HOLDER

$311.99

$

Usually ships in 3-6 days

0

19

Exmark 127-2993

Holder

$104.99

$

Usually ships in 3-6 days

0

20

Exmark 127-2965

Screw

$

$

Currently unavailable

21

Exmark 127-2966

Screw

$

$

Currently unavailable

22

Exmark 127-2967

Bolt

$

$

Currently unavailable

23

Exmark 127-2968

Screw

$5.99

$

Usually ships in 3-6 days

0

24

Exmark 127-2969

Bolt

$

$

Currently unavailable

25

Exmark 127-2970

Bushing-Insulation

$

$

Currently unavailable

26

Exmark 127-2971

Nut

$

$

Currently unavailable

27

Exmark 125-7230

NUT

$3.49

$

Usually ships in 3-6 days

0

28

Exmark 125-6947

SPACER

$25.99

$

Usually ships in 3-6 days

0

29

Exmark 127-2977

Adjuster

$121.99

$

Usually ships in 3-6 days

0

30

Exmark 135-4027

BOLT-ADJUST

$6.49

$

Usually ships in 3-6 days

0

31

Exmark 125-7219

BOLT

$5.49

$

Usually ships in 3-6 days

0
