LZS88CDYM96RW0 - Exmark 96" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV88C (SN: 406294345 - 408644345) (Rev A) (2020) Cylinder Head and Cover Assembly Parts Diagram

96" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV88C

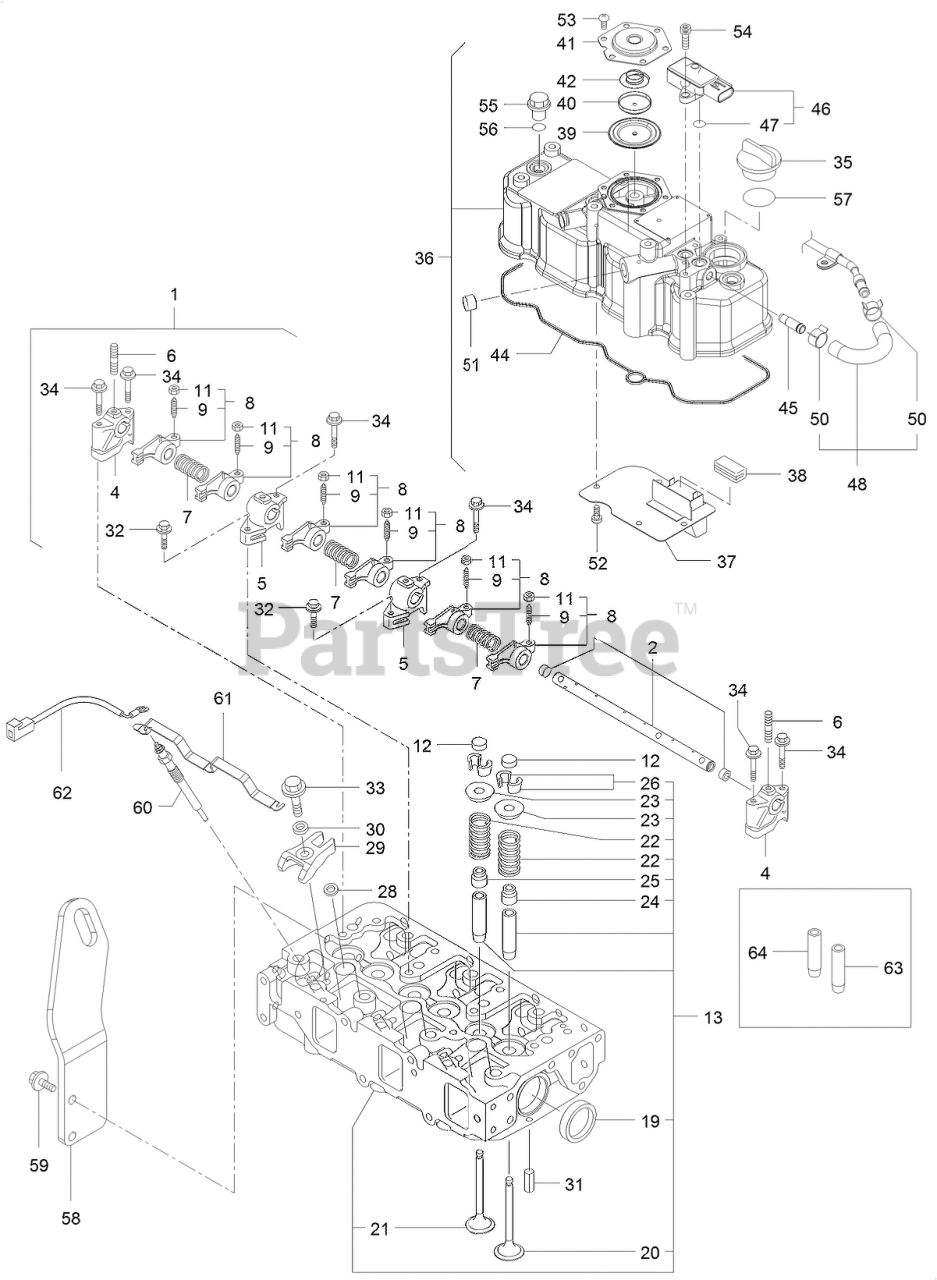

Cylinder Head and Cover Assembly Parts Diagram

  • Title

1

Exmark 127-3757

SHAFT ASM

$589.99

$

Usually ships in 3-6 days

0

2

Exmark 127-3758

SHAFT

$125.99

$

Usually ships in 3-6 days

0

4

Exmark 127-2974

Support

$

$

Currently unavailable

5

Exmark 127-2975

Support

$49.99

$

Usually ships in 3-6 days

0

6

Exmark 135-4012

BOLT,STUD

$2.99

$

Usually ships in 3-6 days

0

7

Exmark 127-2995

Spring

$

$

Currently unavailable

8

Exmark 127-2989

Arm-Rocker

$58.99

$

Usually ships in 3-6 days

0

9

Exmark 125-7013

SCREW-ADJUST, VALVE

$28.99

$

Usually ships in 3-6 days

0

11

Exmark 125-7014

NUT

$6.49

$

Usually ships in 3-6 days

0

12

Exmark 127-2996

Cap-Valve

$4.99

$

Usually ships in 3-6 days

0

13

Exmark 127-4720

CYLINDER HEAD ASM

$3939.99

$

Usually ships in 3-6 days

0

19

Exmark 125-7240

PLUG

$4.49

$

Usually ships in 3-6 days

0

20

Exmark 127-2990

VALVE

$101.99

$

Usually ships in 3-6 days

0

21

Exmark 127-4710

VALVE

$32.99

$

Usually ships in 3-6 days

0

22

Exmark 127-3012

Spring

$

$

Currently unavailable

23

Exmark 127-3013

Retainer-Spring

$

$

Currently unavailable

24

Exmark 127-2986

SEAL-STEM, VALVE

$6.99

$

Usually ships in 3-6 days

0

25

Exmark 127-3027

SEAL-STEM, VALVE

$7.49

$

Usually ships in 3-6 days

0

26

Exmark 127-3186

PIN-COTTER

$19.99

$

Usually ships in 3-6 days

0

28

Exmark 127-3021

GASKET-INJECTOR

$4.99

$

Usually ships in 3-6 days

0

29

Exmark 127-3028

Retainer-Injector

$68.99

$

Usually ships in 3-6 days

0

30

Exmark 127-2980

WASHER-INJECTOR

$20.99

$

Usually ships in 3-6 days

0

31

Exmark 125-7184

PIN-SPRING

$4.49

$

Usually ships in 3-6 days

0

32

Exmark 125-7215

BOLT

$4.49

$

Usually ships in 3-6 days

0

33

Exmark 125-7217

BOLT

$5.49

$

Usually ships in 3-6 days

0

34

Exmark 125-7220

BOLT

$5.99

$

Usually ships in 3-6 days

0

35

Exmark 125-6972

COVER-FILLER

$11.99

$

Usually ships in 3-6 days

0

36

Exmark 127-4719

CYLINDER HEAD COVER ASM

$347.99

$

Usually ships in 3-6 days

0

37

Exmark 127-2988

PLATE

$164.99

$

Usually ships in 3-6 days

0

38

Exmark 125-7012

BAFFLE

$5.49

$

Usually ships in 3-6 days

0

39

Exmark 125-6959

DIAPHRAGM

$59.99

$

Usually ships in 3-6 days

0

40

Exmark 125-6960

PLATE

$16.99

$

Usually ships in 3-6 days

0

41

Exmark 125-6961

PLATE-BREATHER

$29.99

$

Usually ships in 3-6 days

0

42

Exmark 125-6962

SPRING-DIAPHRAGM

$20.99

$

Usually ships in 3-6 days

0

44

Exmark 127-3856

GASKET-HEAD, CYLINDER

$71.99

$

In Stock, only 1 left!

0

45

Exmark 127-3026

Joint

$55.99

$

Usually ships in 3-6 days

0

46

Exmark 127-3029

SENSOR-PRESSURE

$950.99

$

Usually ships in 3-6 days

0

47

Exmark 127-3032

O RING-SENSOR, PRESSURE

$20.99

$

Usually ships in 3-6 days

0

48

Exmark 127-3040

HOSE ASM

$107.99

$

Usually ships in 3-6 days

0

50

Exmark 127-3041

Clip-Hose

$28.99

$

Usually ships in 3-6 days

0

51

Exmark 125-6913

PLUG

$8.99

$

Usually ships in 3-6 days

0

52

Exmark 125-7186

SCREW

$3.49

$

Usually ships in 3-6 days

0

53

Exmark 125-7186

SCREW

$3.49

$

Usually ships in 3-6 days

0

54

Exmark 127-3184

BOLT

$5.49

$

Usually ships in 3-6 days

0

55

Exmark 125-6974

KNOB

$6.99

$

Usually ships in 3-6 days

0

56

Exmark 93-0418

O-RING

$7.99

$

In Stock, only 3 left!

0

57

Exmark 125-7197

O-RING

$2.99

$

In Stock, only 1 left!

0

58

Exmark 127-4718

LIFTER-ENGINE

$57.99

$

Usually ships in 3-6 days

0

59

Exmark 100-6928

BOLT

$4.99

$

Usually ships in 3-6 days

0

60

Exmark 127-2991

PLUG-GLOW

$176.99

$

In Stock, only 3 left!

0

61

Exmark 127-3768

CONNECTOR-PLUG, GLOW

$36.99

$

Usually ships in 3-6 days

0

62

Exmark 131-2704

HARNESS-WIRE

$33.99

$

Usually ships in 3-6 days

0

63

Exmark 127-2979

GUIDE

$30.99

$

Usually ships in 3-6 days

0

64

Exmark 127-2997

GUIDE-VALVE

$11.99

$

Usually ships in 3-6 days

0
