LZS88CDYM96RW0 - Exmark 96" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV88C (SN: 406294345 - 408644345) (Rev A) (2020) Center Deck Guard Assembly Parts Diagram

96" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV88C

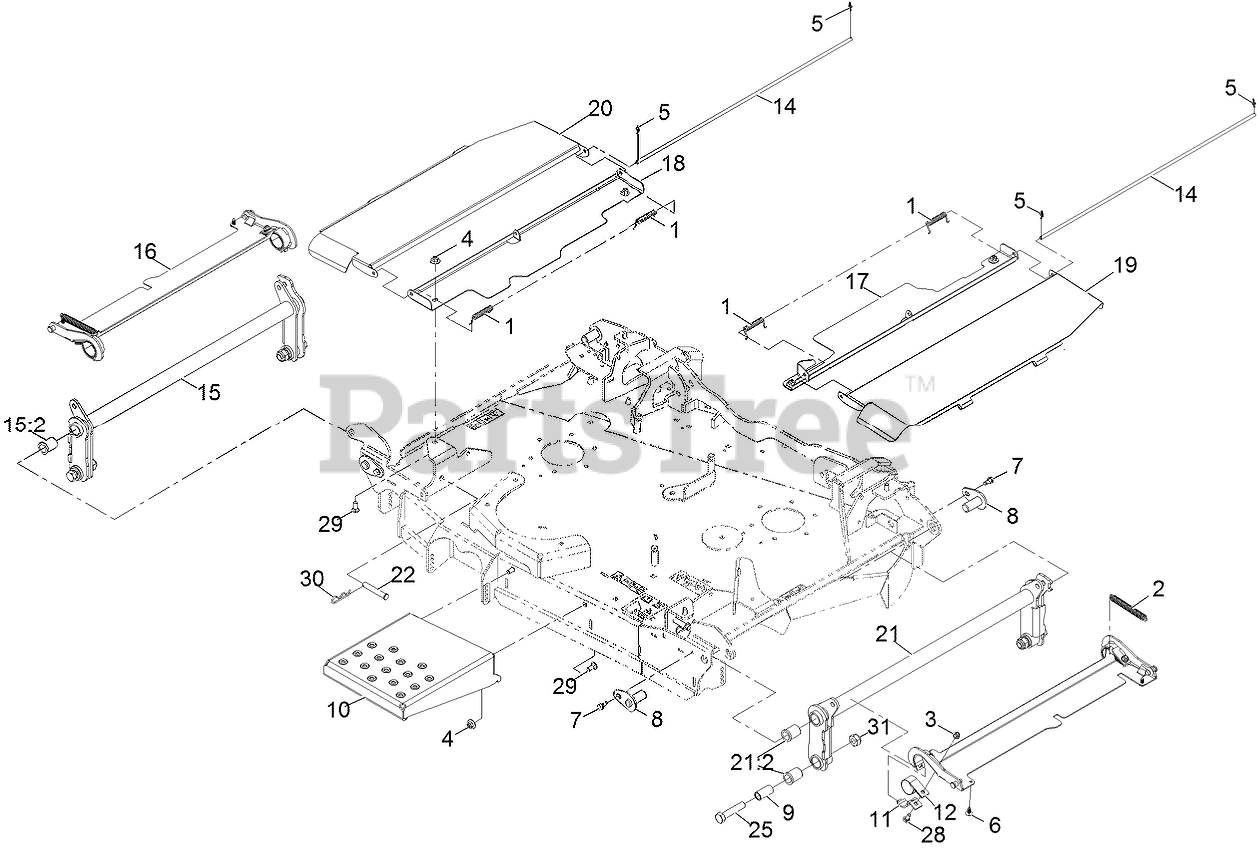

Center Deck Guard Assembly Parts Diagram

  • Title
1

Exmark 99-5293

SPRING-TORSION

$10.99

$

In Stock, only 4 left!

0

2

$6.49

$

Usually ships in 3-6 days

0

3

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

4

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

5

Exmark 116-6639

PIN-COTTER, LOCKING

$1.49

$

In Stock, only 4 left!

0

6

Exmark 117-2382

PLUG-PLASTIC

$0.99

$

In Stock, Qty 10

0

7

Exmark 126-4424

SCREW-SHOULDER

$2.99

$

In Stock, Qty 8

0

8

Exmark 126-9411

PIN-DECK

$23.99

$

In Stock, Qty 10

0

9

Exmark 135-5125

BUSHING-FLOAT, DECK

$12.99

$

In Stock, Qty 14

0

10

Exmark 126-9745-03

PANEL-STEP

$103.99

$

Usually ships in 3-6 days

0

11

Exmark 126-9764

PLATE-RETAINER, BEARING

$13.99

$

Usually ships in 3-6 days

0

12

Exmark 135-0584

BEARING-STRAP, NYLON

$6.49

$

Usually ships in 3-6 days

0

14

Exmark 135-1023

COVER-ROD, PIVOT

$37.99

$

Usually ships in 3-6 days

0

15

Exmark 135-1046

RH FOLD ARM ASM

$562.99

$

In Stock, only 2 left!

0

15:2

Exmark 135-1841

BUSHING-FLANGED
(Superseded to 142-4794)

$15.99

$

In Stock, Qty 20+

0

16

Exmark 135-2630-01

COVER-WING

$180.99

$

Usually ships in 3-6 days

0

17

Exmark 135-2651-01

SHIELD-CENTER, LH

$63.99

$

Usually ships in 3-6 days

0

18

Exmark 135-2652-01

SHIELD-CENTER, RH

$53.99

$

Usually ships in 3-6 days

0

19

Exmark 135-6178-03

Shield-Center, RH

$87.99

$

Usually ships in 3-6 days

0

20

Exmark 135-6174-03

Panel-Shield Hinge, LH

$87.99

$

Usually ships in 3-6 days

0

21

Exmark 135-1844

LH FOLD ARM ASM

$562.99

$

In Stock, only 2 left!

0

21:2

Exmark 135-1841

BUSHING-FLANGED
(Superseded to 142-4794)

$15.99

$

In Stock, Qty 20+

0

22

Exmark 283-55

PIN-CLEVIS

$11.99

$

In Stock, Qty 5

0

25

Exmark 327-9

SCREW-HH

$3.99

$

In Stock, only 4 left!

0

28

Exmark 3230-16

SCREW-CARR

$2.99

$

In Stock, Qty 20+

0

29

Exmark 3231-12

BOLT-CARR

$6.49

$

In Stock, only 3 left!

0

30

Exmark 3290-355

PIN-HAIR

$2.49

$

In Stock, Qty 20+

0

31

Exmark 3296-61

NUT-LOCK

$15.99

$

Usually ships in 3-6 days

0
