LZS88CDYM96RW0 - Exmark 96" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV88C (SN: 404314159 - 406294344) (2019) Hydraulic Lift and Fold Assembly Parts Diagram

96" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV88C

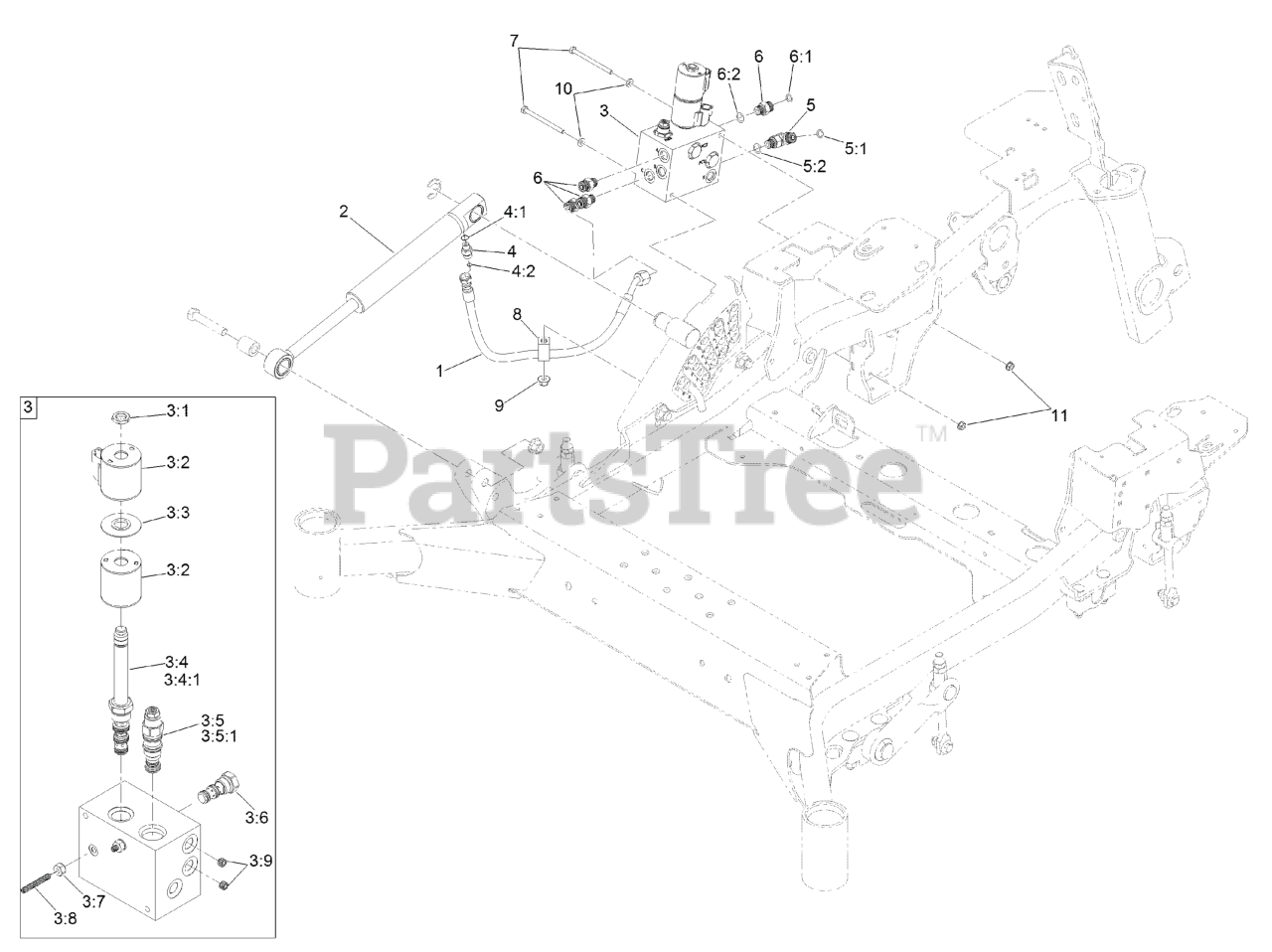

Hydraulic Lift and Fold Assembly Parts Diagram

  • Title

1

Exmark 126-8683

HOSE ASM

$68.99

$

Usually ships in 3-6 days

0

2

Exmark 126-7841

CYLINDER-LIFT

$495.99

$

Usually ships in 3-6 days

0

3

Exmark 135-4560

LIFT AND HOLD VALVE ASM
(Superseded to 142-4922)

$1538.99

$

Usually ships in 3-6 days

0

3:1

Exmark 110-2634

NUT-COIL

$6.99

$

Usually ships in 3-6 days

0

3:2

Exmark 115-3021

COIL-12V

$130.99

$

Usually ships in 3-6 days

0

3:3

Exmark 117-8316

Spacer-E Coil

$34.99

$

Usually ships in 3-6 days

0

3:4

Exmark 135-4546

Solenoid Valve ASM

$312.99

$

Usually ships in 3-6 days

0

3:4:1

Exmark 110-8908

SPOOL VALVE SEAL KIT

$36.99

$

Usually ships in 3-6 days

0

3:5

Exmark 135-4543

VALVE-COUNTERBALANCE

$347.99

$

Usually ships in 3-6 days

0

3:5:1

Exmark 114-5083

Seal Kit

$85.99

$

Usually ships in 3-6 days

0

3:6

Exmark 135-4547

Valve-Check, Po

$149.99

$

In Stock, Qty 5

0

3:7

Exmark 135-4544

SCREW-SET

$1.49

$

Usually ships in 3-6 days

0

3:8

Exmark 135-4545

Nut-Sealing, Hex

$21.99

$

Usually ships in 3-6 days

0

3:9

Exmark 110-8889

Plug-Orifice (0.020)

$15.99

$

Usually ships in 3-6 days

0

4

Exmark 126-8692

FITTING-HYD, STRAIGHT

$20.99

$

Usually ships in 3-6 days

0

4:1

Exmark 237-78

O-RING

$4.49

$

Usually ships in 3-6 days

0

4:2

Exmark 237-21

O-RING

$0.99

$

In Stock, Qty 10

0

5

Exmark 340-77

FITTING-ELBOW, 90 DEG

$26.99

$

Usually ships in 3-6 days

0

5:1

Exmark 237-22

O-RING

$2.99

$

In Stock, Qty 14

0

5:2

Exmark 237-42

O-RING

$2.99

$

In Stock, Qty 9

0

6

Exmark 340-2

FITTING-STRAIGHT

$12.99

$

In Stock, only 2 left!

0

6:1

Exmark 237-22

O-RING

$2.99

$

In Stock, Qty 14

0

6:2

Exmark 237-42

O-RING

$2.99

$

In Stock, Qty 9

0

7

Exmark 321-19

SCREW-HH

$9.49

$

Usually ships in 3-6 days

0

8

Exmark 1-633396

CLIP-LOOM

$5.49

$

Usually ships in 3-6 days

0

9

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

10

Exmark 3256-16

WASHER-FLAT

$0.99

$

In Stock, Qty 18

0

11

Exmark 32128-33

NUT-HF

$0.99

$

In Stock, Qty 6

0
