LZS88CDYM96RW0 - Exmark 96" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV88C (SN: 404314159 - 406294344) (2019) Fuel Injection Valve Assembly Parts Diagram

96" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV88C

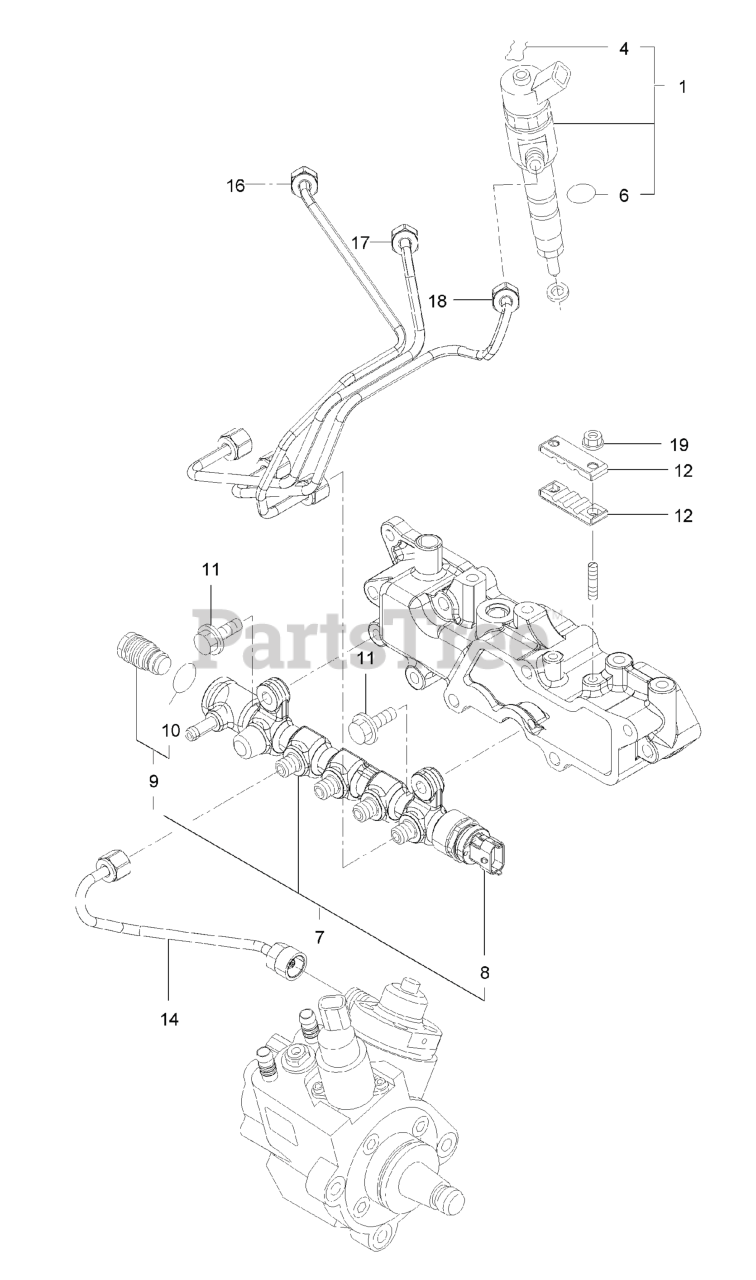

Fuel Injection Valve Assembly Parts Diagram

  • Title

1

Exmark 127-4754

INJECTOR ASM

$3087.99

$

Usually ships in 3-6 days

0

4

Exmark 130-7430

RING-RETAINING

$26.99

$

Usually ships in 3-6 days

0

6

Exmark 137-5173

O-Ring

$20.99

$

Usually ships in 3-6 days

0

7

Exmark 127-3812

RAIL ASM

$3610.99

$

Usually ships in 3-6 days

0

8

Exmark 131-2709

Sensor-Pressure, Rail

$410.99

$

Usually ships in 3-6 days

0

9

Exmark 131-2710

Valve ASM

$342.99

$

Usually ships in 3-6 days

0

10

Exmark 130-7433

O-RING

$22.99

$

Usually ships in 3-6 days

0

11

Exmark 125-7215

BOLT

$4.49

$

Usually ships in 3-6 days

0

12

Exmark 127-3813

RETAINER

$19.99

$

Usually ships in 3-6 days

0

14

Exmark 127-3082

RAIL IN PIPE ASM

$76.99

$

Usually ships in 3-6 days

0

16

Exmark 127-3814

INJECTION PIPE ASM

$104.99

$

Usually ships in 3-6 days

0

17

Exmark 127-3083

INJECTION PIPE ASM

$104.99

$

Usually ships in 3-6 days

0

18

Exmark 127-3084

INJECTION PIPE ASM

$104.99

$

Usually ships in 3-6 days

0

19

Exmark 125-7231

NUT

$4.99

$

Usually ships in 3-6 days

0
