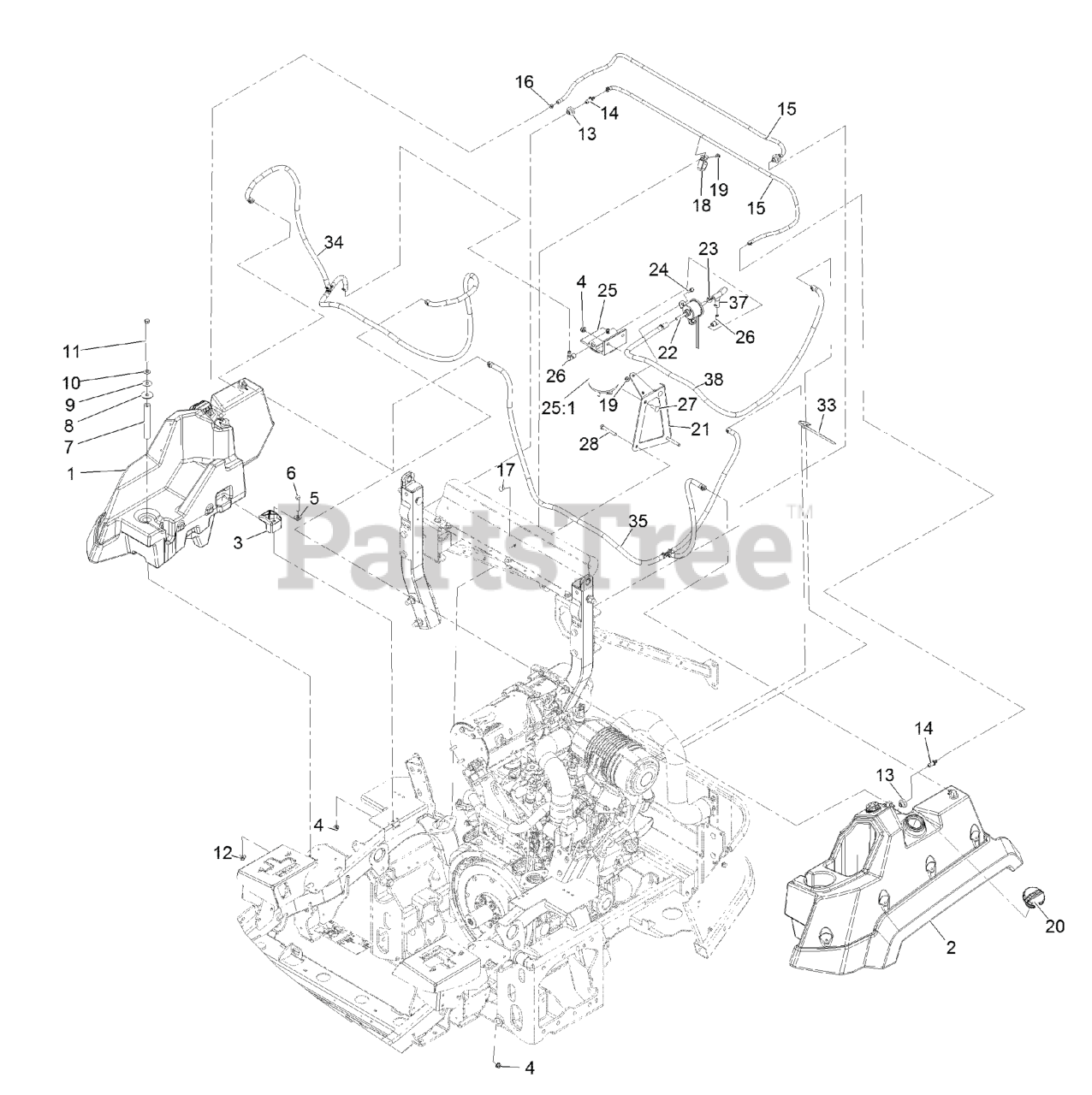

LZS88CDYM96RW0 - Exmark 96" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV88C (SN: 404314159 - 406294344) (2019) Fuel Assembly Parts Diagram

96" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV88C

Fuel Assembly Parts Diagram

  • Title

1

Exmark 126-8651

RH FUEL TANK ASM
(Superseded to 142-8638)

$387.99

$

Usually ships in 3-6 days

0

2

Exmark 126-8652

LH FUEL TANK ASM
(Superseded to 142-8637)

$464.99

$

Usually ships in 3-6 days

0

3

Exmark 107-4543

CLAMP

$14.99

$

Usually ships in 3-6 days

0

4

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

5

Exmark 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

6

Exmark 322-21

SCREW-HH

$5.49

$

In Stock, Qty 20+

0

7

Exmark 126-8335

TUBE-SPACER

$15.99

$

Usually ships in 3-6 days

0

8

Exmark 95-1905

WASHER-RUBBER

$2.99

$

In Stock, Qty 8

0

9

Exmark 105-6814

WASHER-PLAIN

$1.49

$

In Stock, Qty 11

0

10

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 15

0

11

Exmark 323-22

SCREW-HH

$15.99

$

Usually ships in 3-6 days

0

12

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

13

Exmark 46-6560

BUSHING

$5.99

$

In Stock, Qty 12

0

14

Exmark 116-4630

FITTING-ORIFICE, STRAIGHT

$5.49

$

Usually ships in 3-6 days

0

15

Exmark 117-6395

HOSE-VENT, TANK

$20.99

$

Usually ships in 3-6 days

0

16

Exmark 2412-80

CLAMP-HOSE

$5.49

$

In Stock, only 1 left!

0

17

Exmark 3229-11

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

18

Exmark 92-5753

CLAMP-HOSE

$5.49

$

Usually ships in 3-6 days

0

19

Exmark 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

20

Exmark 135-2715

CAP-FUEL, DIESEL

$22.99

$

In Stock, only 1 left!

0

21

Exmark 126-8795-03

BRACKET-FILTER, FUEL

$34.99

$

Usually ships in 3-6 days

0

22

Exmark 121-5613

PUMP-FUEL, ELECTRIC

$328.99

$

Usually ships in 3-6 days

0

23

Exmark 92-2379

CLAMP-HOSE

$0.99

$

Usually ships in 3-6 days

0

24

Exmark 32105-15

SCREW-HWH

$2.99

$

In Stock, Qty 14

0

25

Exmark 125-2914

SEPARATOR FILTER ASM

$111.99

$

Usually ships in 3-6 days

0

25

Exmark 126-8294

FILTER-WATER/FUEL SEPERATOR

$137.99

$

Usually ships in 3-6 days

0

25:1

Exmark 125-2915

FILTER-FUEL/WATER SEPARAT

$42.99

$

In Stock, Qty 20+

0

26

Exmark 353-781

FITTING-HYD, 90

$29.99

$

Usually ships in 3-6 days

0

27

Exmark 3230-22

SCREW-CARR
(Superseded to 3230-22)

$2.49

$

In Stock, only 2 left!

0

28

Exmark 322-11

SCREW-HH
(Superseded to 120-9738)

$1.49

$

In Stock, Qty 20+

0

33

Exmark 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 8

0

34

Exmark 135-0512

FUEL SUCTION LINE ASM

$71.99

$

Usually ships in 3-6 days

0

35

Exmark 135-0513

FUEL RETURN LINE ASM

$71.99

$

Usually ships in 3-6 days

0

37

Exmark 108-3280

HOSE-FUEL

$5.99

$

Usually ships in 3-6 days

0

38

Exmark 110-7503

HOSE-FUEL

$53.99

$

Usually ships in 3-6 days

0
