LZS88CDYM96RW0 - Exmark 96" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV88C (SN: 404314159 - 406294344) (2019) Folding Deck Hydraulic Assembly Parts Diagram

96" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV88C

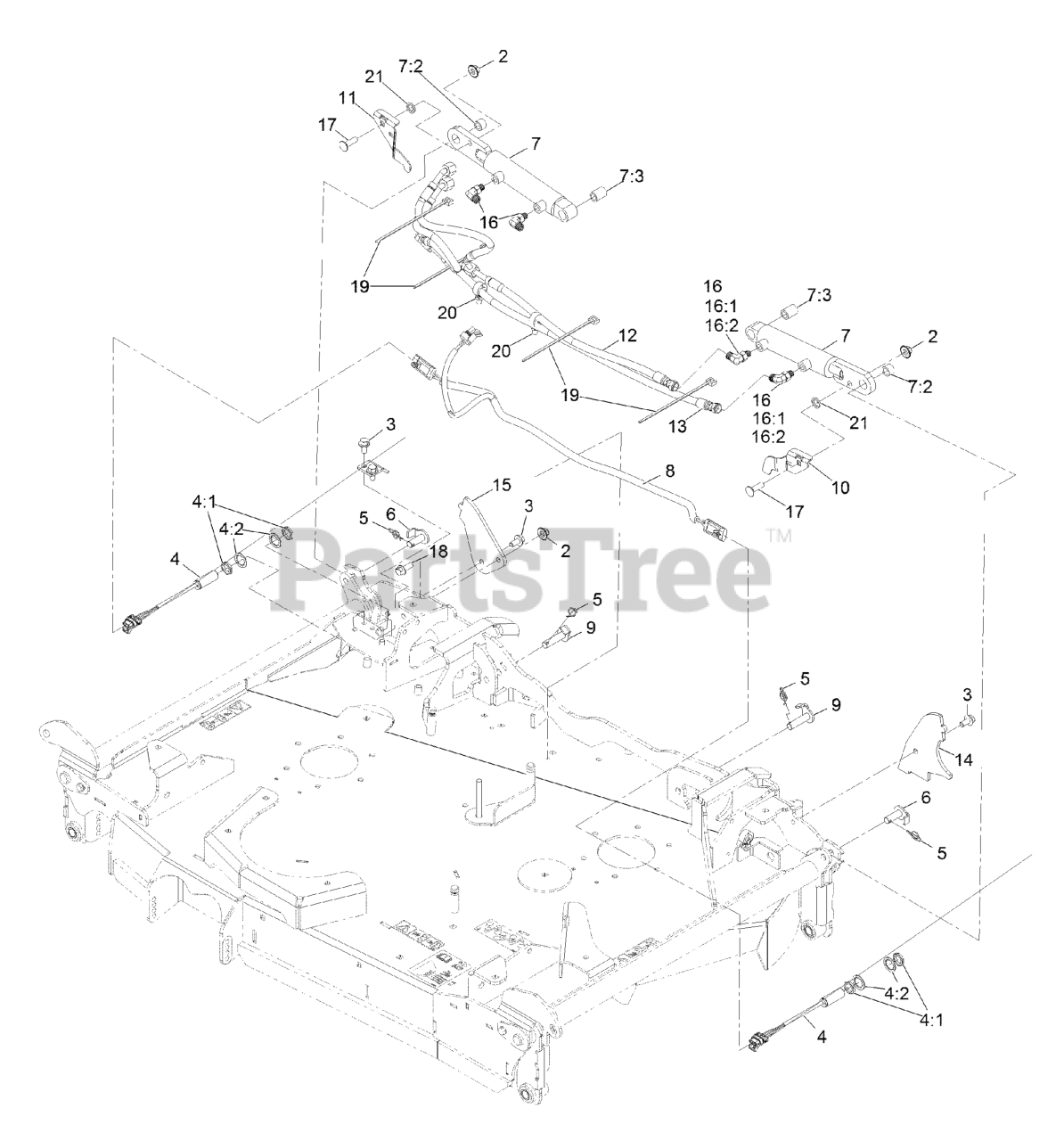

Folding Deck Hydraulic Assembly Parts Diagram

  • Title
2

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, only 2 left!

0

3

Exmark 110-9380

SCREW-HWH

$2.99

$

In Stock, Qty 8

0

4

Exmark 115-5300

PROXIMITY SWITCH ASM

$148.99

$

In Stock, only 2 left!

0

4:1

Exmark 117-3207

NUT-HEX

$56.99

$

Usually ships in 3-6 days

0

4:2

Exmark 117-3208

WASHER-LOCK, INTERNAL TOO

$10.99

$

Usually ships in 3-6 days

0

5

Exmark 126-8417

PIN-COTTER, LOCKING

$1.49

$

In Stock, Qty 17

0

6

Exmark 126-8448

EYE-PIN, CYLINDER

$27.99

$

In Stock, only 2 left!

0

7

Exmark 126-9000

DECK FOLD CYLINDER ASM

$557.99

$

Usually ships in 3-6 days

0

7:2

Exmark 126-8439

BUSHING

$43.99

$

In Stock, only 2 left!

0

7:3

Exmark 126-8440

BUSHING

$56.99

$

Usually ships in 3-6 days

0

8

Exmark 126-9372

HARNESS-WIRE

$46.99

$

Usually ships in 3-6 days

0

9

Exmark 126-9403

BASE-PIN, CYLINDER
(Superseded to 142-3762)

$27.99

$

In Stock, only 2 left!

0

10

Exmark 135-5922

Plate-Proximity, LH

$50.99

$

In Stock, Qty 5

0

11

Exmark 135-5923

Plate-Proximity, RH

$50.99

$

Usually ships in 3-6 days

0

12

Exmark 135-1760

HOSE ASM

$153.99

$

Usually ships in 3-6 days

0

13

Exmark 135-1761

HOSE ASM

$153.99

$

Usually ships in 3-6 days

0

14

Exmark 135-2628-01

BRACKET-DECK STOP, LH

$22.99

$

Usually ships in 3-6 days

0

15

Exmark 135-2629-01

BRACKET-DECK STOP, RH

$22.99

$

Usually ships in 3-6 days

0

16

Exmark 340-132

FITTING-ELBOW, 90 DEG

$26.99

$

Usually ships in 3-6 days

0

16:1

Exmark 237-78

O-RING

$3.99

$

Usually ships in 3-6 days

0

16:2

Exmark 237-21

O-RING

$0.99

$

In Stock, Qty 15

0

17

Exmark 3231-28

Bolt-Carriage 3/8-16 X 1 1/4

$4.49

$

In Stock, Qty 20+

0

18

Exmark 3234-42

SCREW-HHF 3/8-16 X 1

$3.49

$

In Stock, Qty 20+

0

19

Exmark 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

20

Exmark 32180-030

CLIP-TIE

$4.99

$

In Stock, Qty 7

0

21

$1.99

$

Usually ships in 3-6 days

0
