LZS88CDYM96RW0 - Exmark 96" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV88C (SN: 404314159 - 406294344) (2019) Electrical Assembly Parts Diagram

96" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV88C

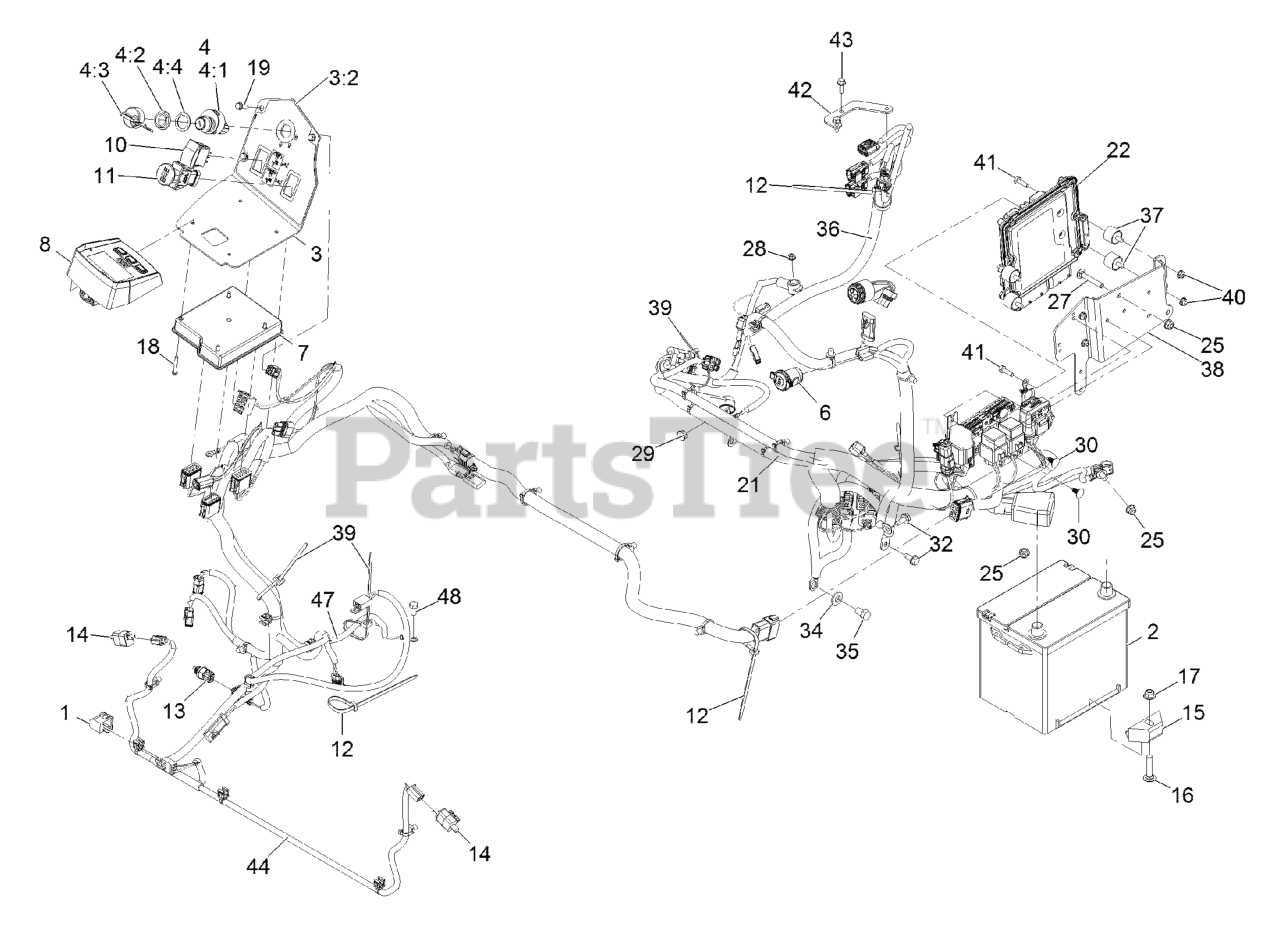

Electrical Assembly Parts Diagram

  • Title

1

Exmark 82-2190

SWITCH-BAIL

$14.99

$

In Stock, Qty 20+

0

2

Exmark 106-5187

Battery-Dry

$215.99

$

Usually ships in 3-6 days

0

3

Exmark 135-6161

Console ASM

$84.99

$

Usually ships in 3-6 days

0

3:2

Exmark 135-0398

DECAL-CONSOLE

$17.99

$

Usually ships in 3-6 days

0

4

Exmark 126-6285

IGNITION SWITCH ASM

$54.99

$

In Stock, Qty 20+

0

4:1

Switch-Ignition

Note: Not serviced separately

$

$

Not available

4:2

Exmark 108-8660

NUT-MOUNTING

$35.99

$

In Stock, only 3 left!

0

4:3

Exmark 106-5270

IGNITION KEY SET

$22.99

$

In Stock, Qty 18

0

4:4

Exmark 108-8659

WASHER-BACKUP

$14.99

$

In Stock, only 1 left!

0

6

Exmark 126-6499

PORT-POWER, 12V

$15.99

$

In Stock, only 2 left!

0

7

Exmark 135-3427

Module-Mcu

$386.99

$

Usually ships in 3-6 days

0

8

Exmark 126-4232

MODULE, LDU

$455.99

$

In Stock, only 2 left!

0

10

Exmark 100-1535

SWITCH

$90.99

$

In Stock, only 4 left!

0

11

Exmark 126-6187

SWITCH-PTO, SEALED

$54.99

$

In Stock, Qty 20+

0

12

Exmark 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 8

0

13

Exmark 126-7698

SENSOR-TEMPERATURE

$94.99

$

In Stock, only 2 left!

0

14

Exmark 110-6765

SWITCH

$13.99

$

In Stock, Qty 20+

0

15

Exmark 66-2490

RETAINER-BATTERY
(Superseded to 138-6335)

$11.99

$

Usually ships in 3-6 days

0

16

Exmark 3231-5

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

17

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

18

Exmark 126-5092

SCREW-PPH

$3.49

$

In Stock, Qty 8

0

19

Exmark 32105-15

SCREW-HWH

$2.99

$

In Stock, Qty 20+

0

21

Exmark 126-7406

CABLE-BATTERY

$171.99

$

Usually ships in 3-6 days

0

22

Exmark 127-3085

E C U ASM
(Superseded to 121-5592)

$3620.99

$

Usually ships in 3-6 days

0

25

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

27

Exmark 3230-6

BOLT-CARR

$1.49

$

In Stock, Qty 11

0

28

Exmark 33003-00

NUT-HF

$0.99

$

Usually ships in 3-6 days

0

29

Exmark 127-2371

NUT-HF

$2.99

$

Usually ships in 3-6 days

0

30

Exmark 117-2382

PLUG-PLASTIC

$0.99

$

In Stock, Qty 20+

0

32

Exmark 32144-70

Screw-HWH 5/16-18 X 3/4 Tf

$2.99

$

In Stock, Qty 20+

0

34

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

35

Exmark 33115-016

SCREW-HH

$2.49

$

Usually ships in 3-6 days

0

36

Exmark 126-7352

HARNESS-WIRE
(Superseded to 142-7958)

Note: Use dielectric grease on all unsealed connectors and terminals only. Do not apply in sealed connectors.

$899.99

$

Usually ships in 3-6 days

0

37

Exmark 125-2674

MOUNT-CYLINDRICAL

$6.99

$

Usually ships in 3-6 days

0

38

Exmark 126-8706-03

MOUNT-CONTROL UNIT, ENGIN

$45.99

$

Usually ships in 3-6 days

0

39

Exmark 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

40

Exmark 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

41

Exmark 321-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

42

Exmark 135-0071

BRACKET-WIRING, ENGINE

$11.99

$

Usually ships in 3-6 days

0

43

Exmark 33103-020

SCREW-HHF

$3.99

$

Usually ships in 3-6 days

0

44

Exmark 126-8269

HARNESS-WIRE

$664.99

$

Usually ships in 3-6 days

0

47

Exmark 135-3998

HARNESS-WIRE, JUMPER

Note: Use dielectric grease on all unsealed connectors and terminals only. Do not apply in sealed connectors.

$30.99

$

Usually ships in 3-6 days

0

48

Exmark 99-5132

BOLT
(Superseded to 139-9940)

$2.49

$

Usually ships in 3-6 days

0
