LZS88CDYM96RW0 - Exmark 96" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV88C (SN: 404314159 - 406294344) (2019) Cooling Water System Assembly Parts Diagram

96" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV88C

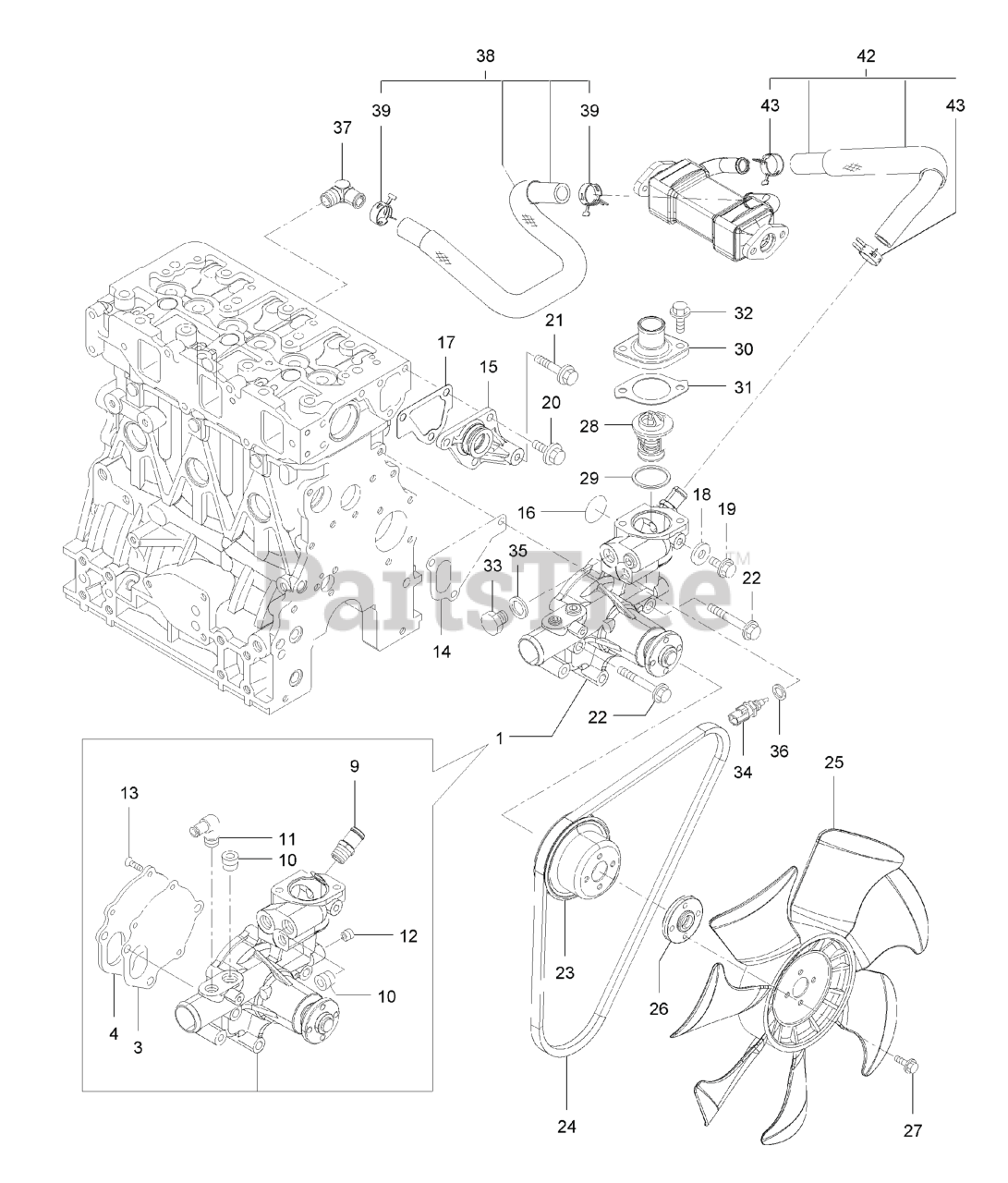

Cooling Water System Assembly Parts Diagram

  • Title

1

Exmark 127-3071

WATER PUMP ASM

$973.99

$

Usually ships in 3-6 days

0

3

Exmark 125-6998

GASKET

$13.99

$

Usually ships in 3-6 days

0

4

Exmark 125-6999

PLATE

$63.99

$

Usually ships in 3-6 days

0

9

Exmark 127-3017

Joint

$75.99

$

Usually ships in 3-6 days

0

10

Exmark 125-7123

PLUG

$10.99

$

Usually ships in 3-6 days

0

11

Exmark 125-7001

ELBOW

$42.99

$

Usually ships in 3-6 days

0

12

Exmark 125-7195

PLUG

$2.99

$

Usually ships in 3-6 days

0

13

Exmark 125-7234

SCREW

$2.99

$

Usually ships in 3-6 days

0

14

Exmark 125-7047

GASKET

$5.99

$

Usually ships in 3-6 days

0

15

Exmark 125-6986

JOINT

$26.99

$

Usually ships in 3-6 days

0

16

Exmark 125-7048

O-RING

$3.49

$

Usually ships in 3-6 days

0

17

Exmark 125-6978

GASKET

$2.49

$

Usually ships in 3-6 days

0

18

Exmark 125-7192

GASKET

$1.49

$

Usually ships in 3-6 days

0

19

Exmark 93-0362

BOLT

$5.49

$

Usually ships in 3-6 days

0

20

Exmark 100-6928

BOLT
(Superseded to 125-7214)

$4.99

$

Usually ships in 3-6 days

0

21

Exmark 125-7219

BOLT

$5.49

$

Usually ships in 3-6 days

0

22

Exmark 125-7222

BOLT

$5.99

$

Usually ships in 3-6 days

0

23

Exmark 127-4712

V-PULLEY

$22.99

$

Usually ships in 3-6 days

0

24

Exmark 127-4771

V-BELT

$56.99

$

In Stock, only 1 left!

0

25

Exmark 127-4702

FAN

$77.99

$

Usually ships in 3-6 days

0

26

Exmark 127-3810

SPACER

$78.99

$

Usually ships in 3-6 days

0

27

Exmark 125-7209

BOLT

$3.49

$

Usually ships in 3-6 days

0

28

Exmark 125-7029

THERMOSTAT

$66.99

$

Usually ships in 3-6 days

0

29

Exmark 125-7026

GASKET

$3.49

$

Usually ships in 3-6 days

0

30

Exmark 125-7034

COVER

$92.99

$

Usually ships in 3-6 days

0

31

Exmark 125-7110

GASKET

$4.49

$

Usually ships in 3-6 days

0

32

Exmark 125-7594

BOLT

$3.99

$

Usually ships in 3-6 days

0

33

Exmark 125-6953

PLUG

$8.49

$

Usually ships in 3-6 days

0

34

Exmark 125-7124

SENSOR-THERMOSTAT, CW

$113.99

$

Usually ships in 3-6 days

0

35

Exmark 125-6979

GASKET

$2.99

$

Usually ships in 3-6 days

0

36

Exmark 125-7176

WASHER-SEAL

$8.99

$

Usually ships in 3-6 days

0

37

Exmark 127-4705

ELBOW

$60.99

$

Usually ships in 3-6 days

0

38

Exmark 127-4757

E G R-C PIPE ASM

$68.99

$

Usually ships in 3-6 days

0

39

Exmark 127-3020

Clip-Hose

$

$

Currently unavailable

42

Exmark 127-3811

CW PIPE ASM

$97.99

$

Usually ships in 3-6 days

0

43

Exmark 127-3020

Clip-Hose

$

$

Currently unavailable
